Guide Assembly: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the glass panel. (Refer to REMOVAL
)
- Place sunroof into the vent position.

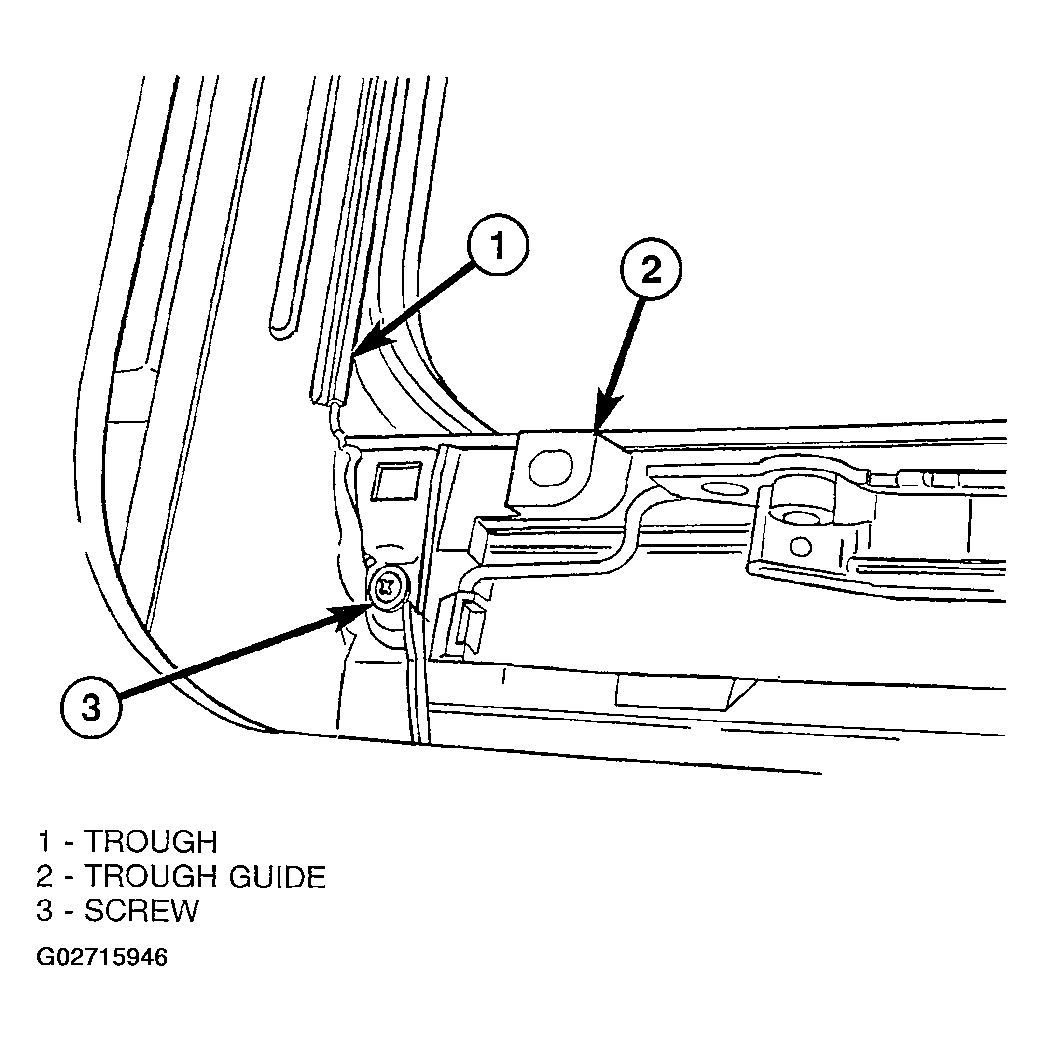

- Remove two screws from trough assembly (Figure
).
- Remove trough assembly.

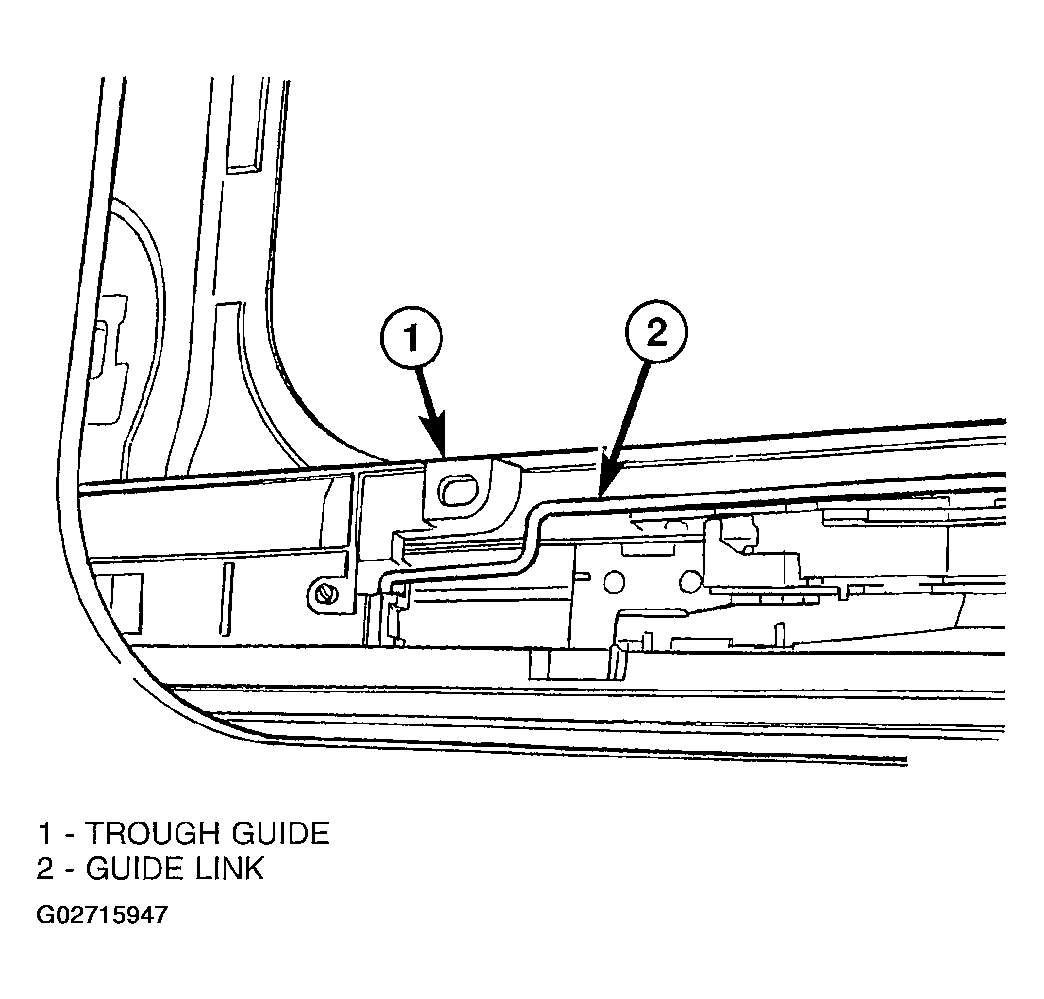

- Disconnect the guide link (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.

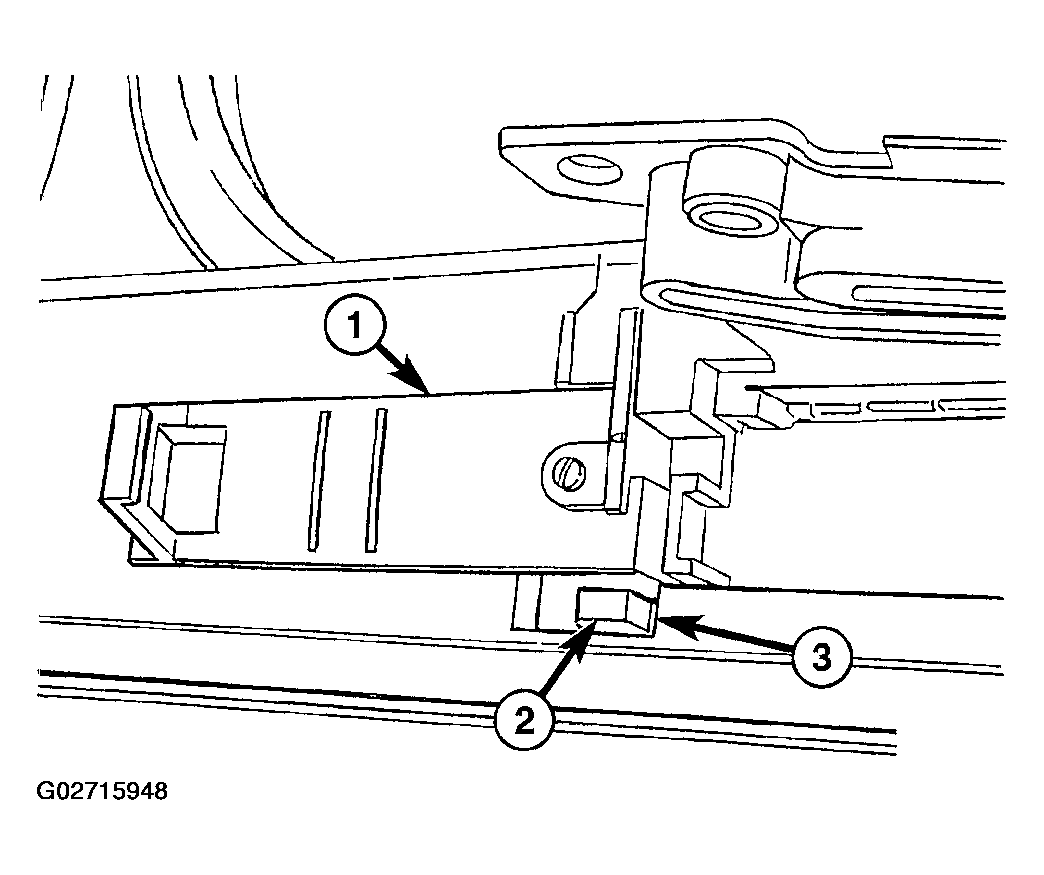

- Slide trough guide forward and disengage the sliders through the notches in the guide channels (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
