Multi-Function Switch C2 - Gray 8 Way Connector End View

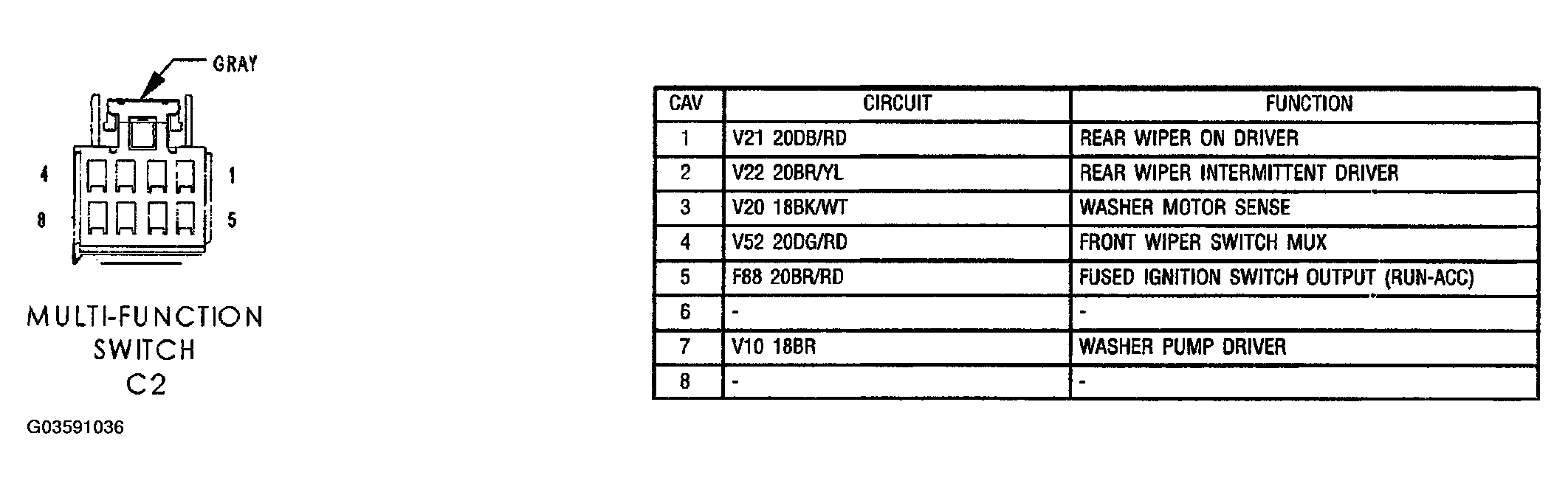

Fig 1: Multifunction Switch Connector End View (C2)

G03591036

Courtesy of DAIMLERCHRYSLER CORP.
