Automatic Headlamp Light Sensor/VTSS Led Connector End View

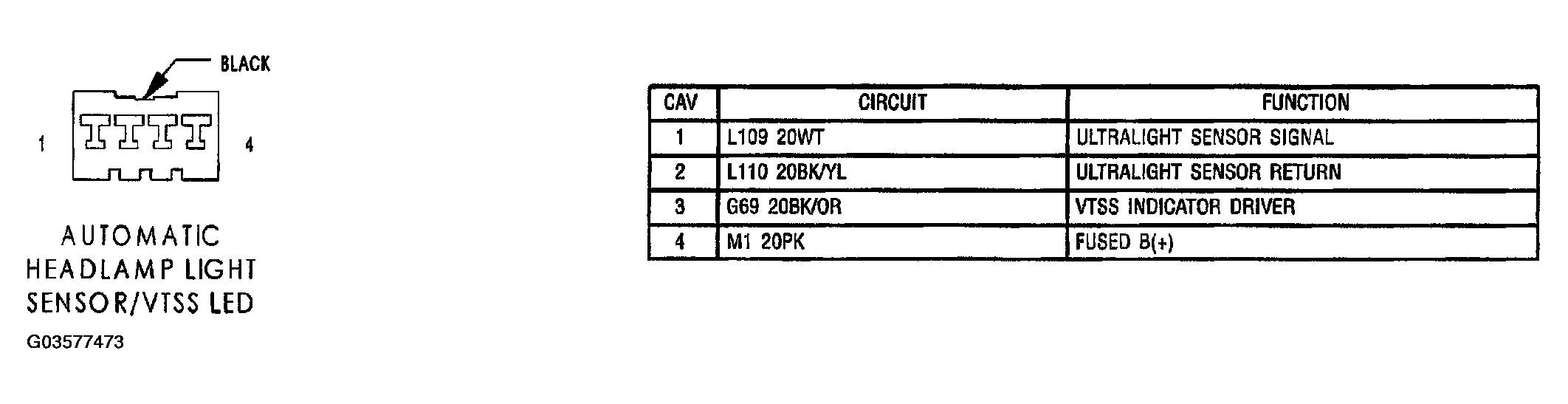

Fig 1: Automatic Headlamp Light Sensor/VTSS LED Connector End View

G03577473

Courtesy of DAIMLERCHRYSLER CORP.
