Stationary Glass: Windshield: Removal

  1. Remove inside rear view mirror.
  2. Remove cowl cover.
  3. Remove screws attaching windshield side molding to A-pillar (Fig 1 ).
    Fig 1: Removing Windshield
    G03575240Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove upper windshield molding.
  5. Cut urethane bonding from around windshield using a suitable sharp cold knife. A pneumatic cutting device can be used if available (Fig 2 ).

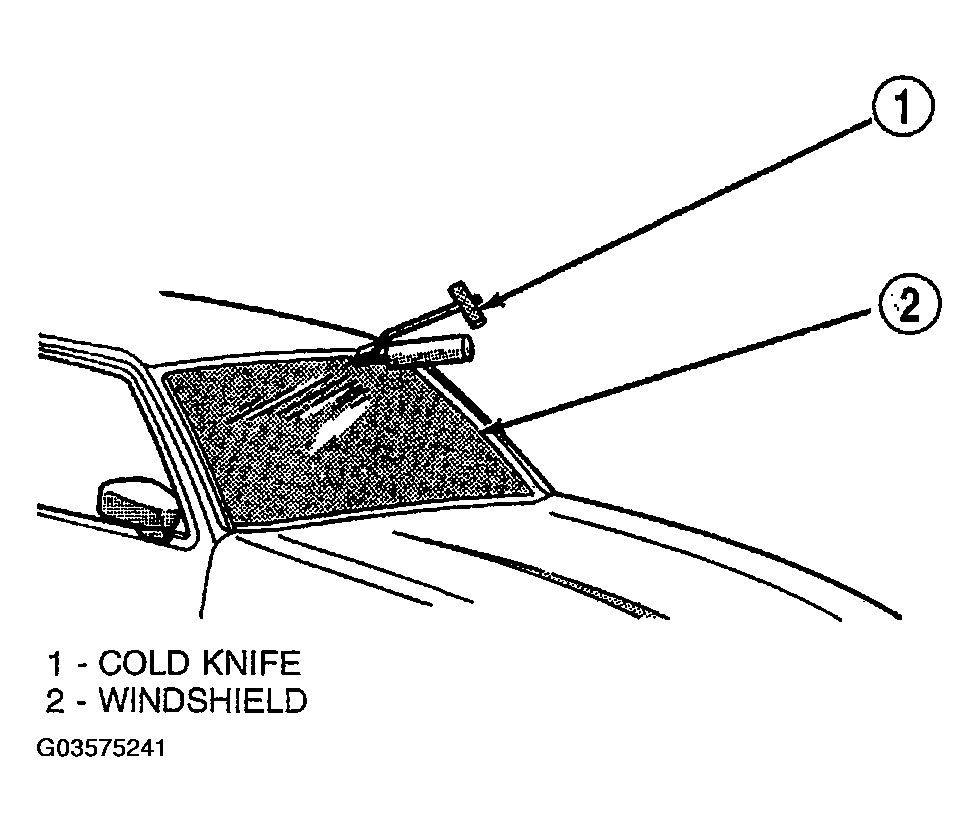

    Fig 2: Cutting Urethane Around Windshield - Typical
    G03575241Courtesy of DAIMLERCHRYSLER CORP.
  6. Separate windshield from vehicle.
