Audio System

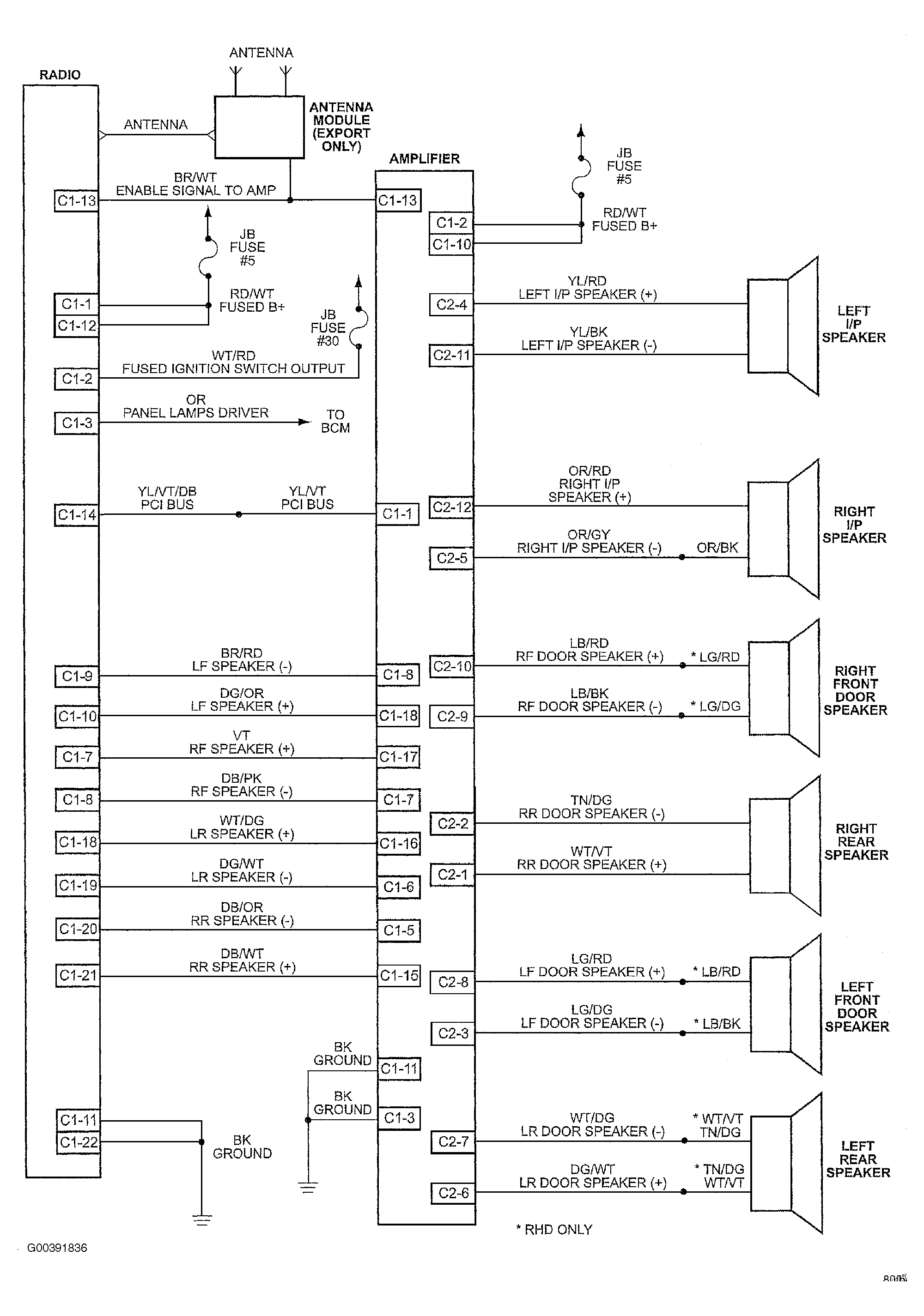

Fig 1: Premium Audio System Schematic Diagram

G00391836

Courtesy of DAIMLERCHRYSLER CORPORATION

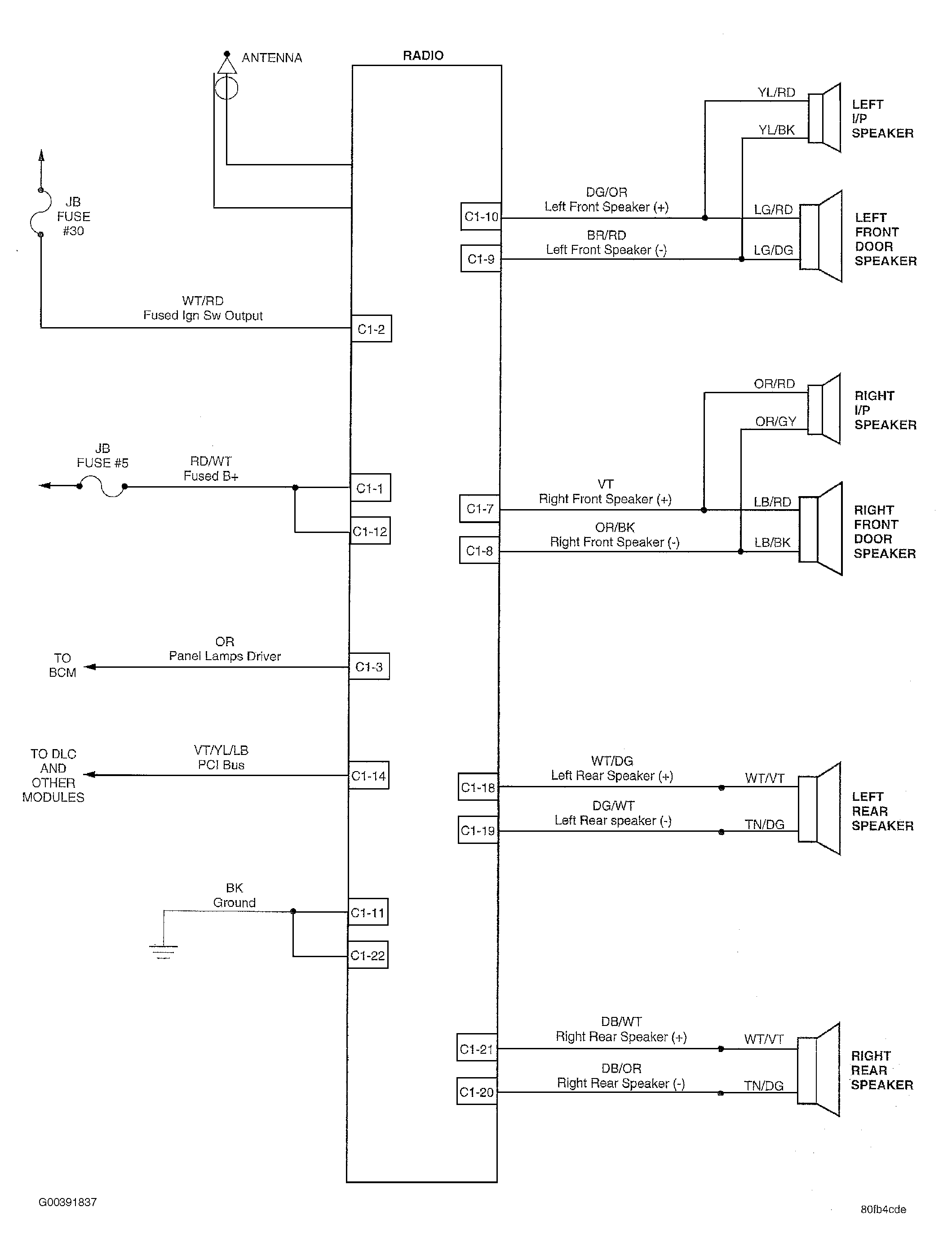

Fig 2: Base Audio System Schematic Diagram

G00391837

Courtesy of DAIMLERCHRYSLER CORPORATION

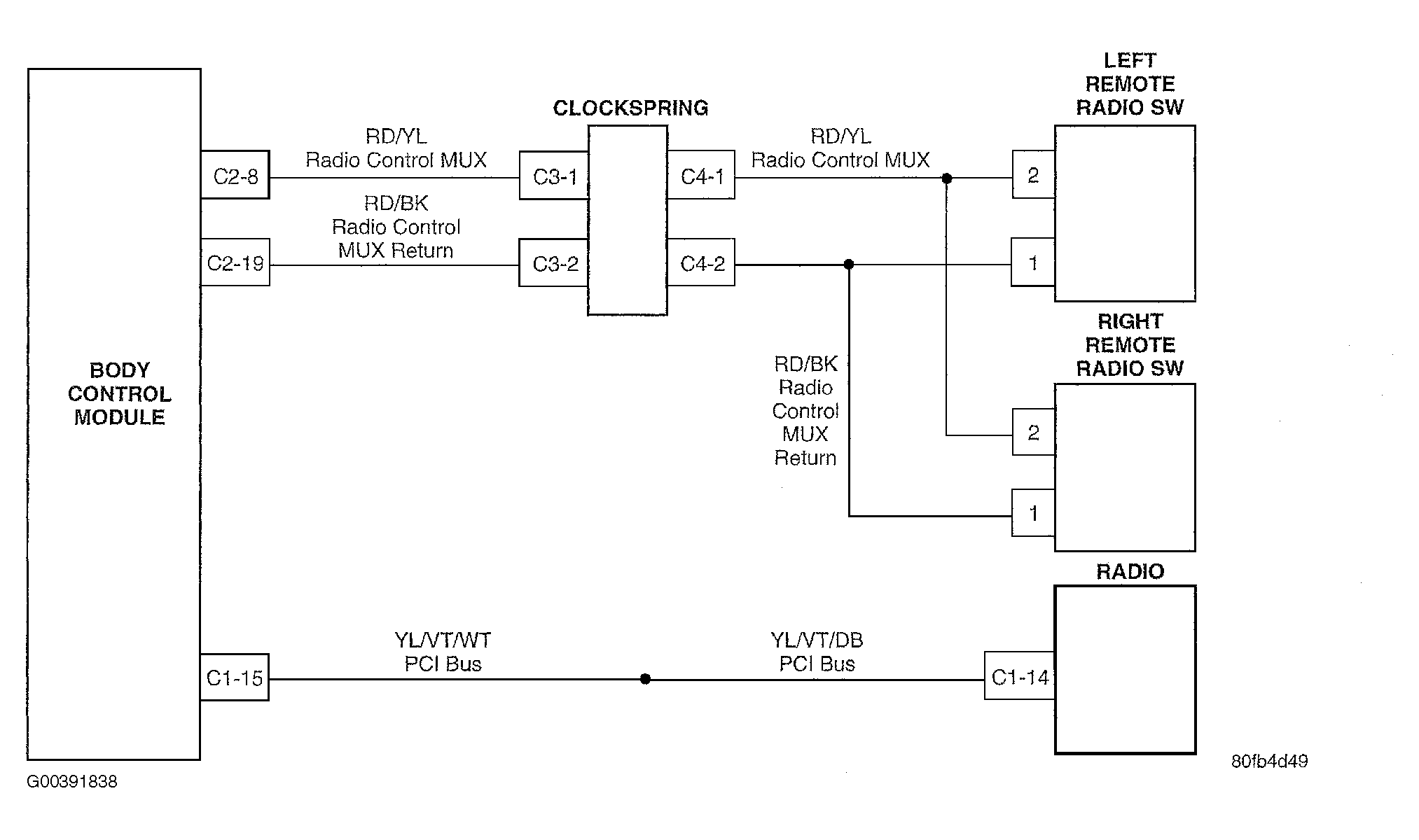

Fig 3: Remote Radio Controls Schematic Diagram

G00391838

Courtesy of DAIMLERCHRYSLER CORPORATION

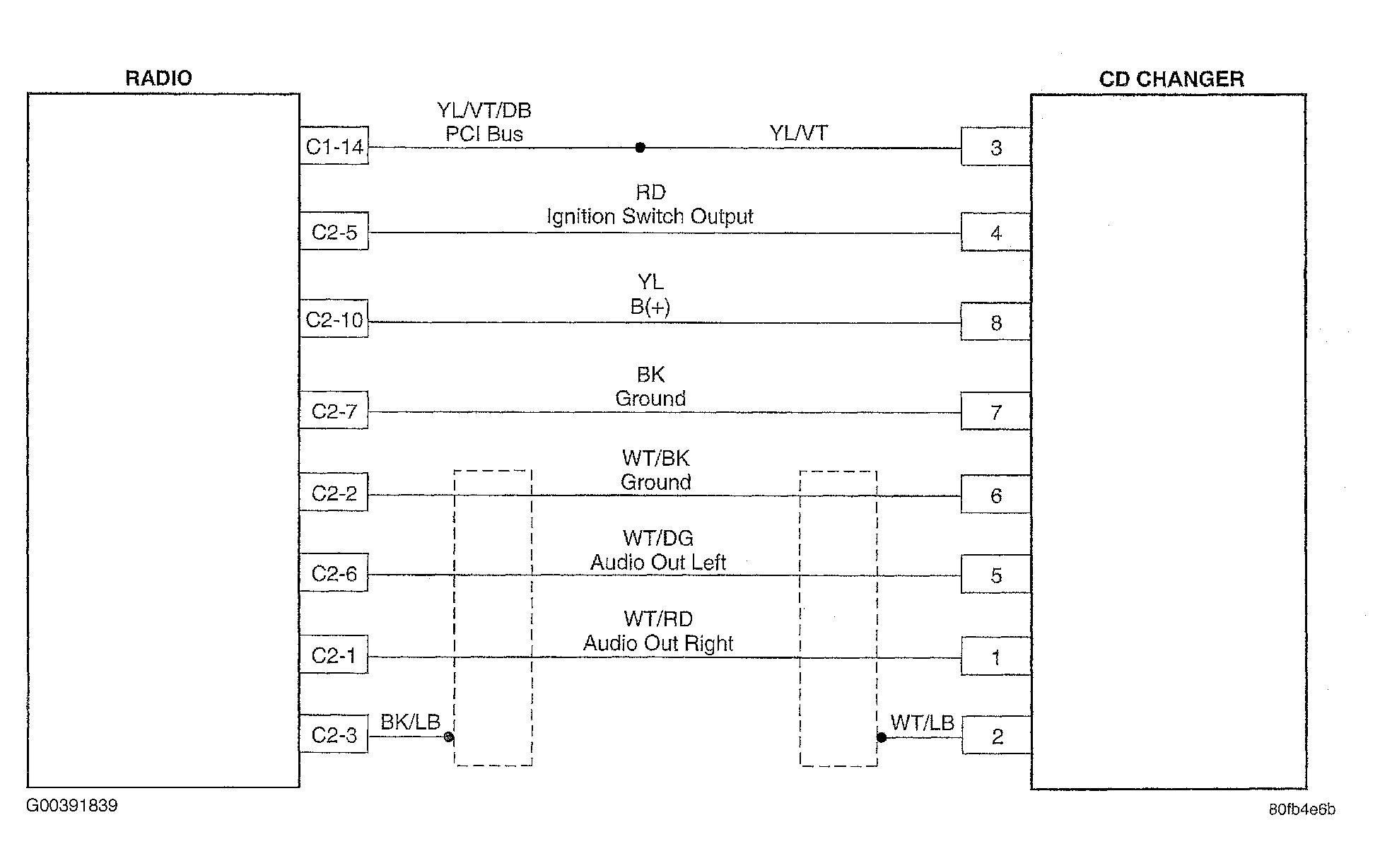

Fig 4: CD Changer Schematic Diagram

G00391839

Courtesy of DAIMLERCHRYSLER CORPORATION
