Trim Panel: Removal

NOTE: The liftgate trim panel is attached with screws and clips.
  1. Raise the liftgate.
  2. Remove the screws securing the liftgate trim panel to the liftgate (Fig 1 ).

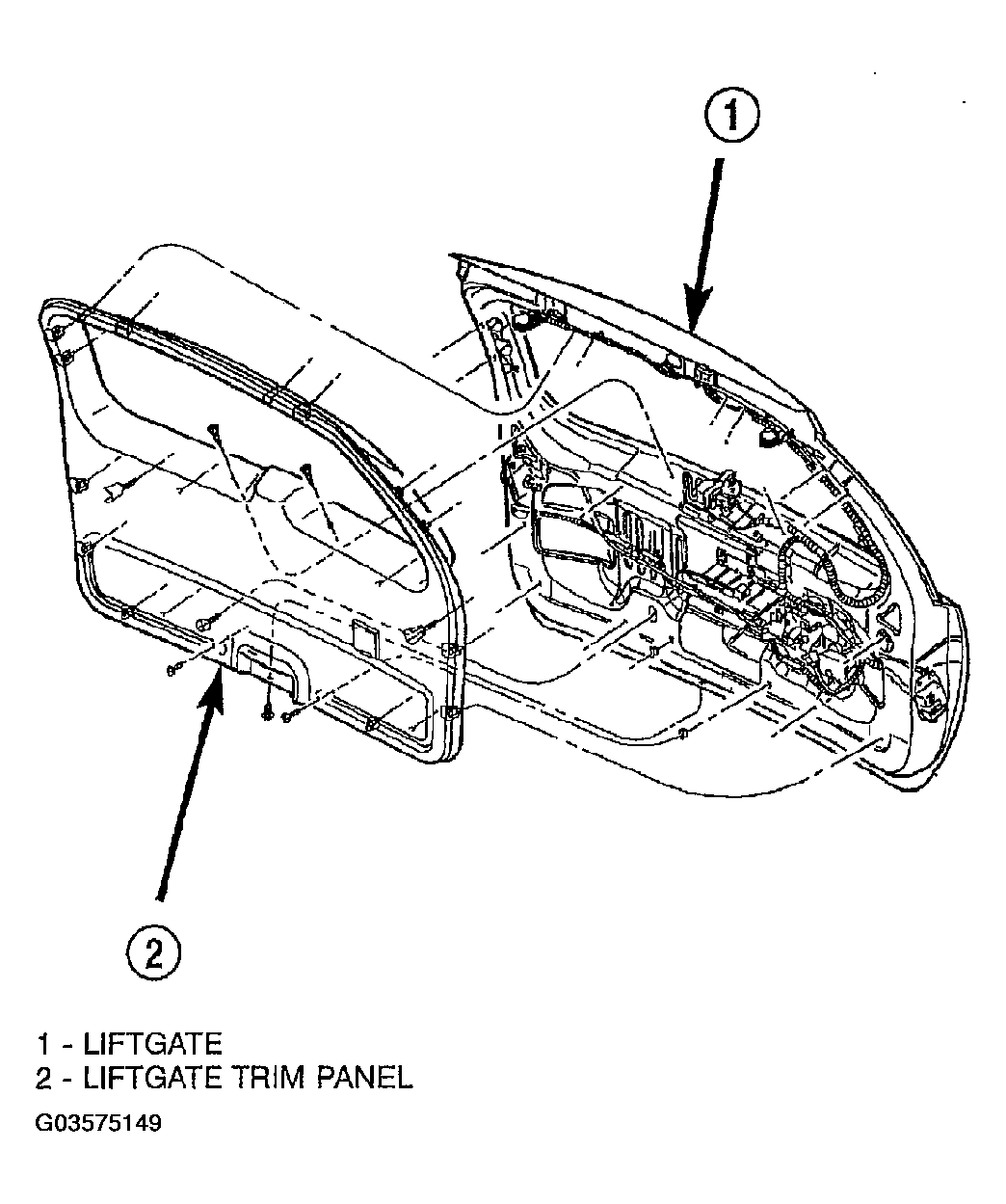

    Fig 1: Removing Liftgate Trim Panel
    G03575149Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the rear window defroster wires.
  4. Using a trim stick C-4755 or equivalent, pry the liftgate trim panel off the liftgate.
