Power Liftgate System: Hinge: Removal

NOTE: It is not necessary to remove the liftgate to replace one or both hinges. The hinges can be replaced one at a time.

Open and support the liftgate.
Remove the upper liftgate opening trim panel. (Refer to LIFTGATE OPENING UPPER TRIM )
Using a grease pencil or equivalent, mark the hinge location.
Remove the hinge screws and remove the hinge. (Fig 1 ) and (Fig 2 )

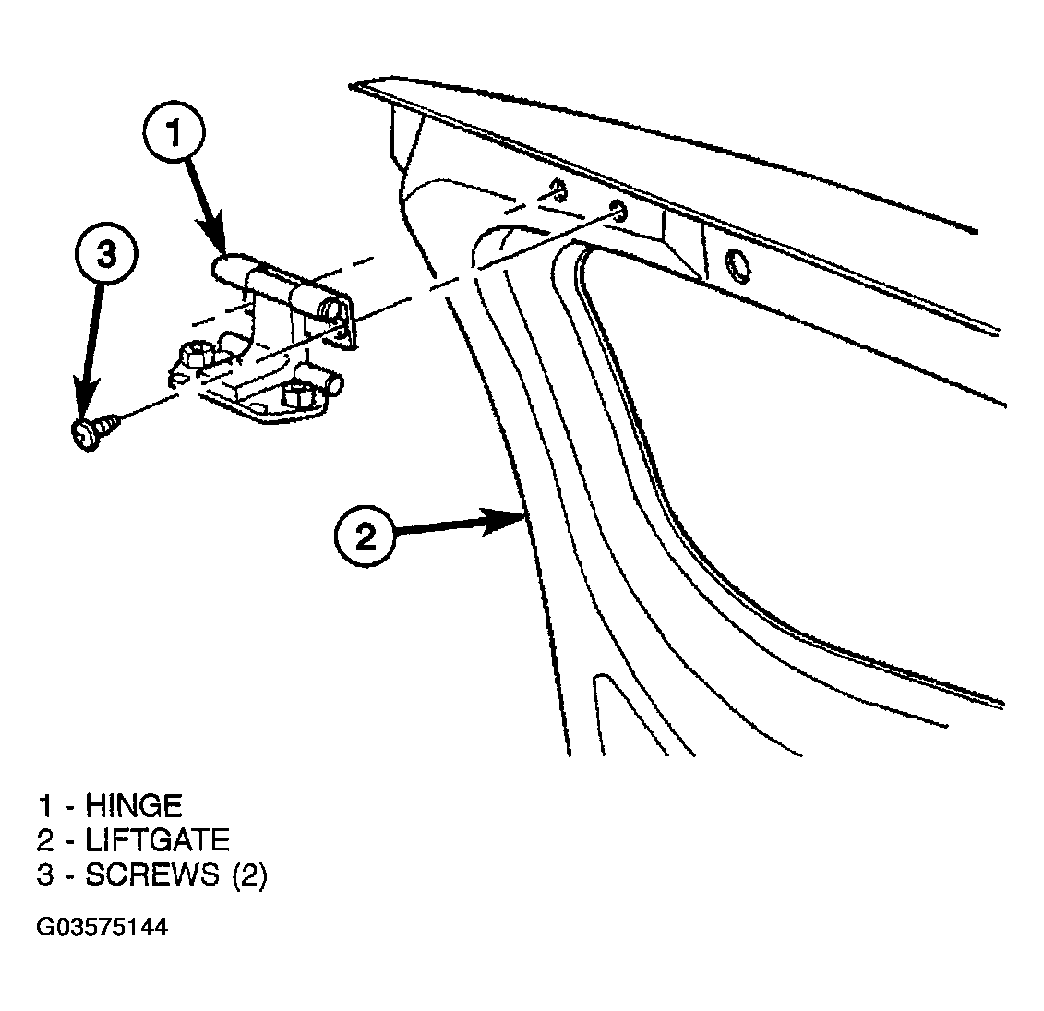

Fig 1: Removing Hinge
Courtesy of DAIMLERCHRYSLER CORP.

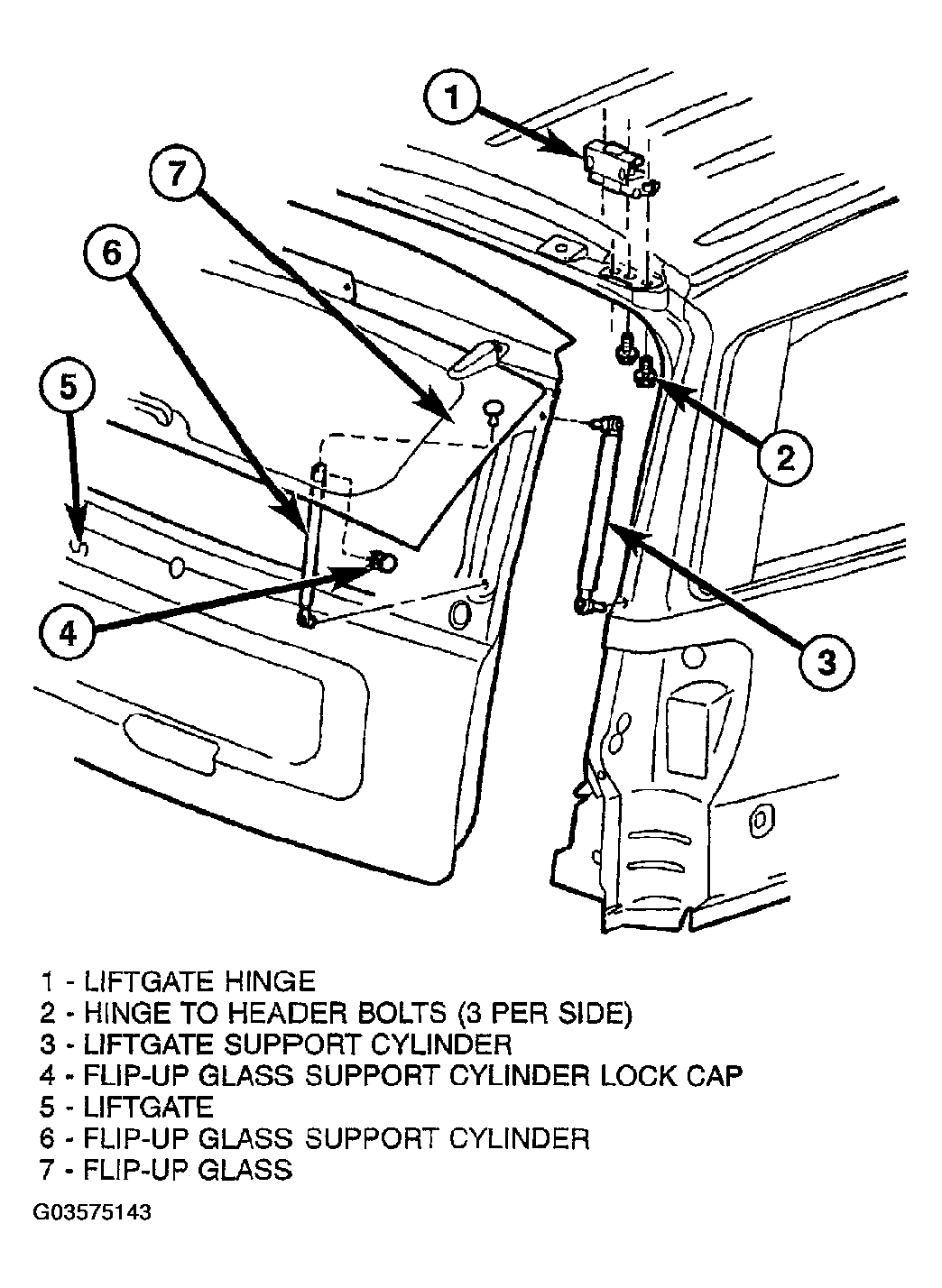

Fig 2: Removing Liftgate Hinge
Courtesy of DAIMLERCHRYSLER CORP.
