Driver Side Impact Sensor Connector End View

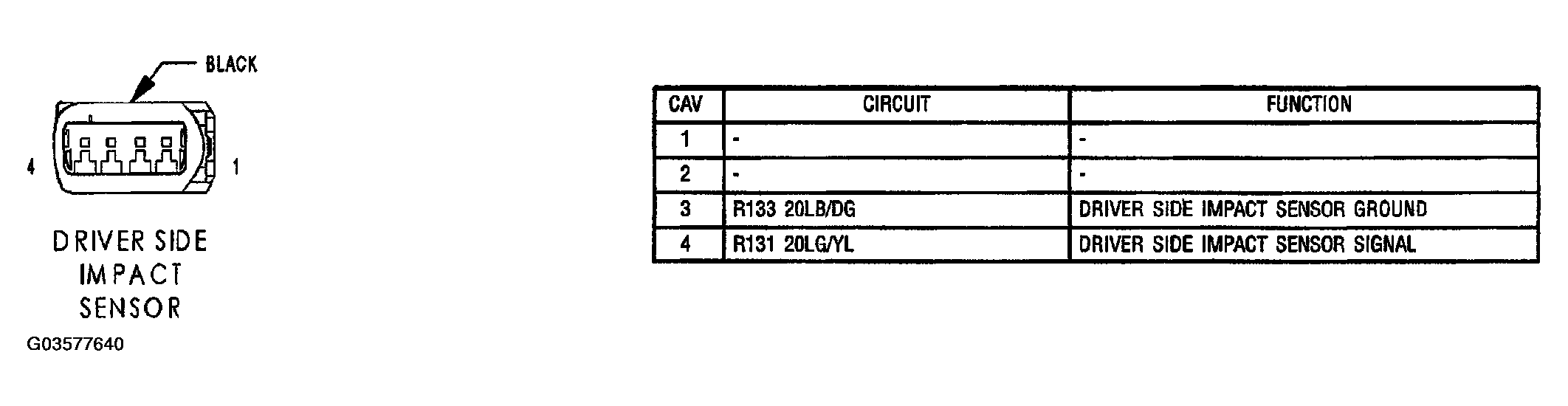

Fig 1: Driver Side Impact Sensor Connector End View

G03577640

Courtesy of DAIMLERCHRYSLER CORP.
