Body Control Module C1 Connector End View

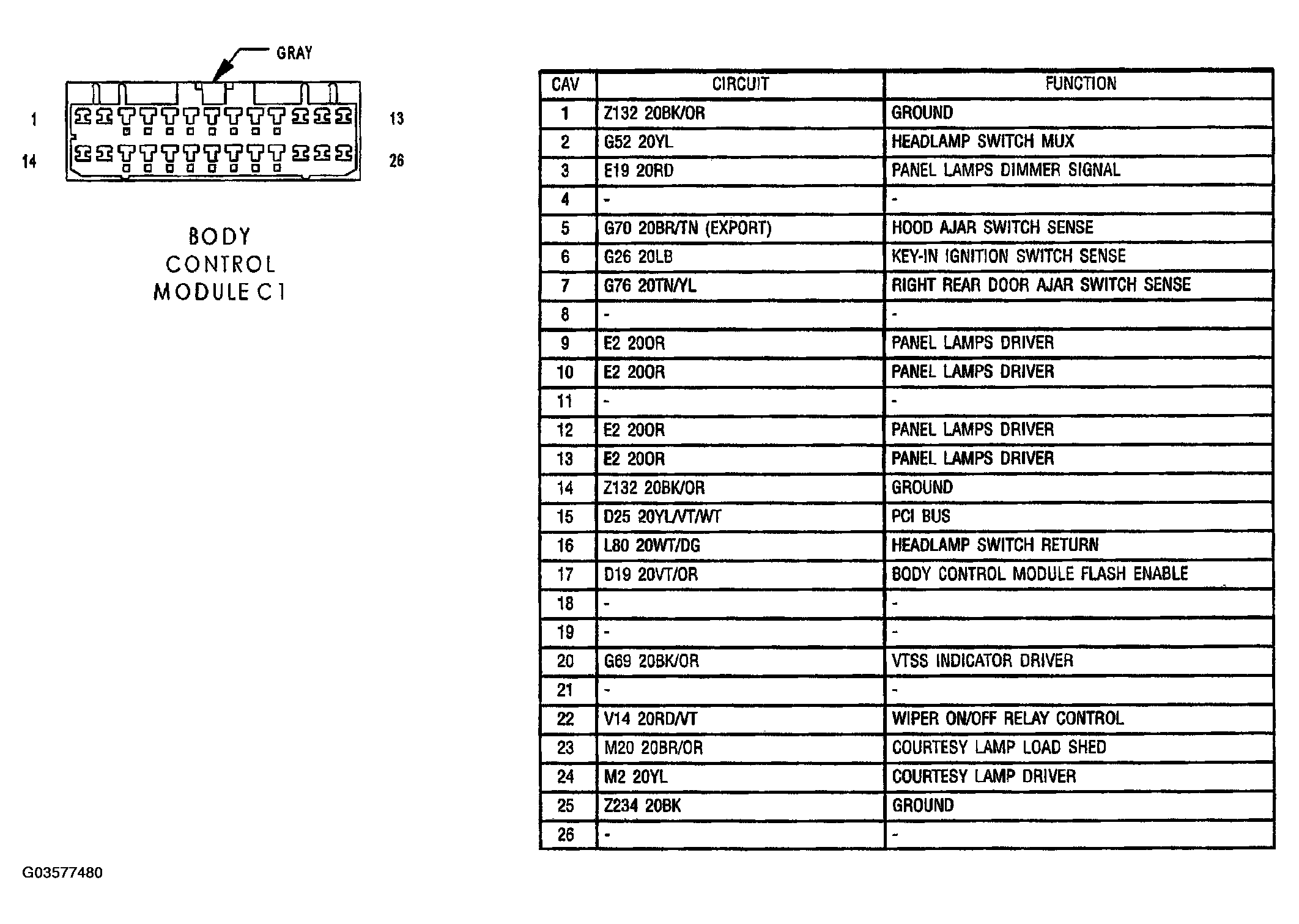

Fig 1: Body Control Module Connector End View (C1)

G03577480

Courtesy of DAIMLERCHRYSLER CORP.
