Connector PINOUTS

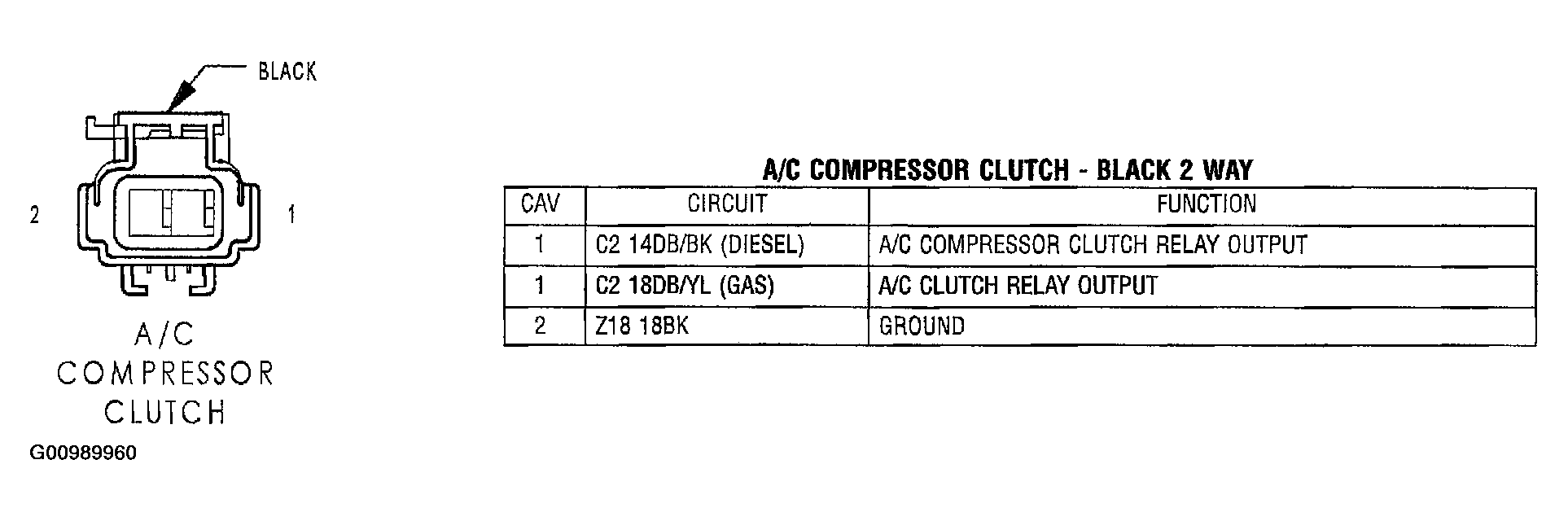

Fig 1: Identifying A/C Compressor Clutch - Black 2 Way - Connector Pinouts

G00989960

Courtesy of DAIMLERCHRYSLER CORP.

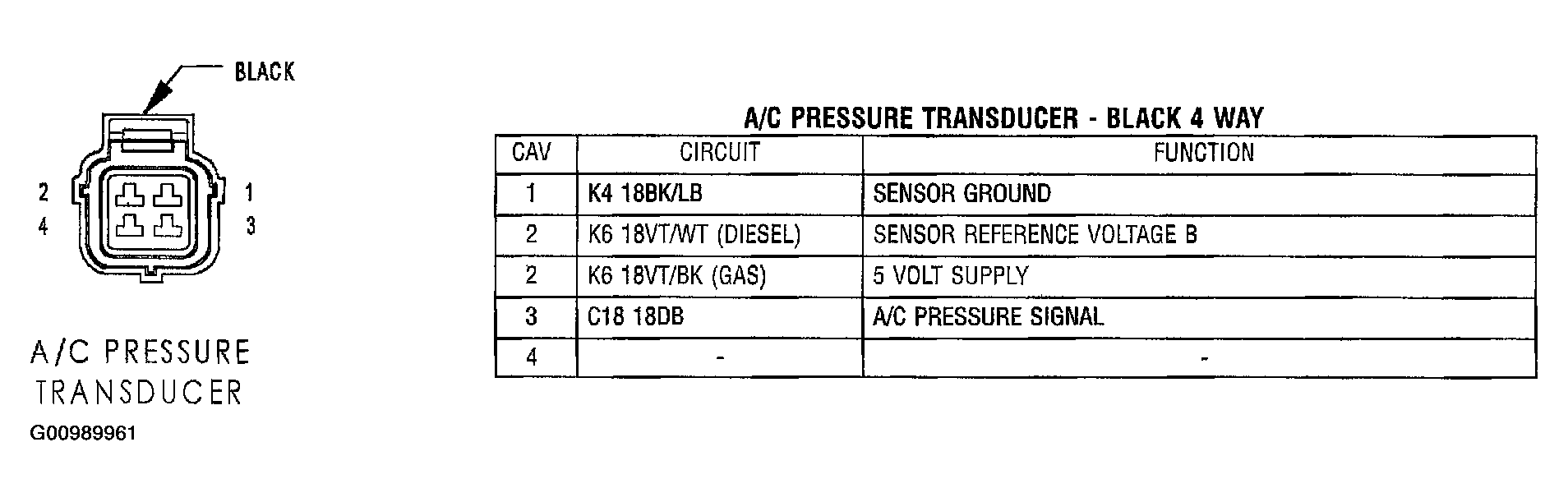

Fig 2: Identifying A/C Pressure Transducer - Black 4 Way - Connector Pinouts

G00989961

Courtesy of DAIMLERCHRYSLER CORP.

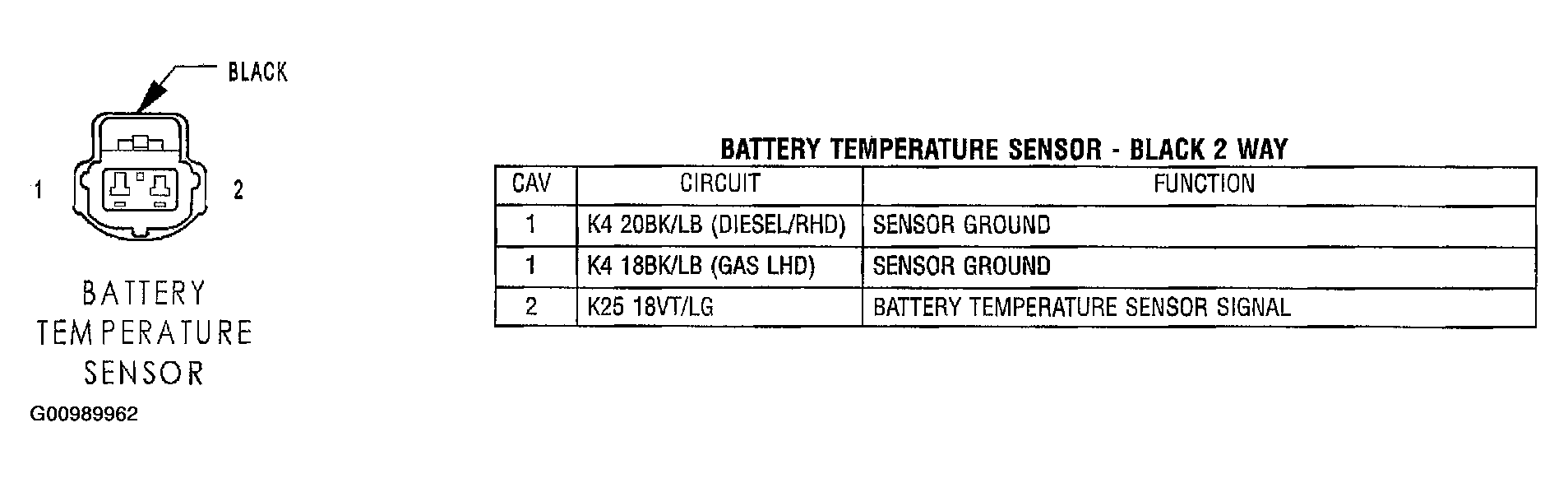

Fig 3: Identifying Battery Temperature Sensor - Black 2 Way - Connector Pinouts

G00989962

Courtesy of DAIMLERCHRYSLER CORP.

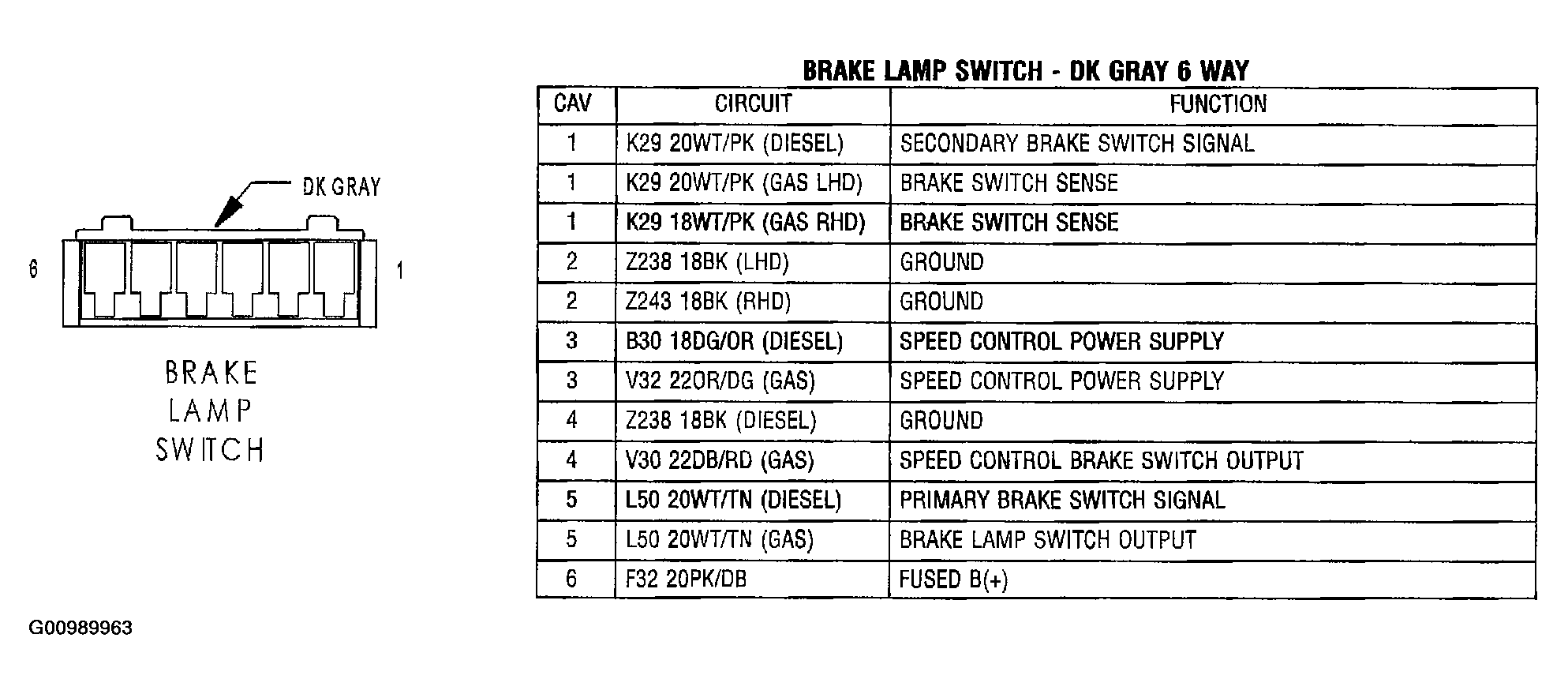

Fig 4: Identifying Brake Lamp Switch - DK Gray 6 Way - Connector Pinouts

G00989963

Courtesy of DAIMLERCHRYSLER CORP.

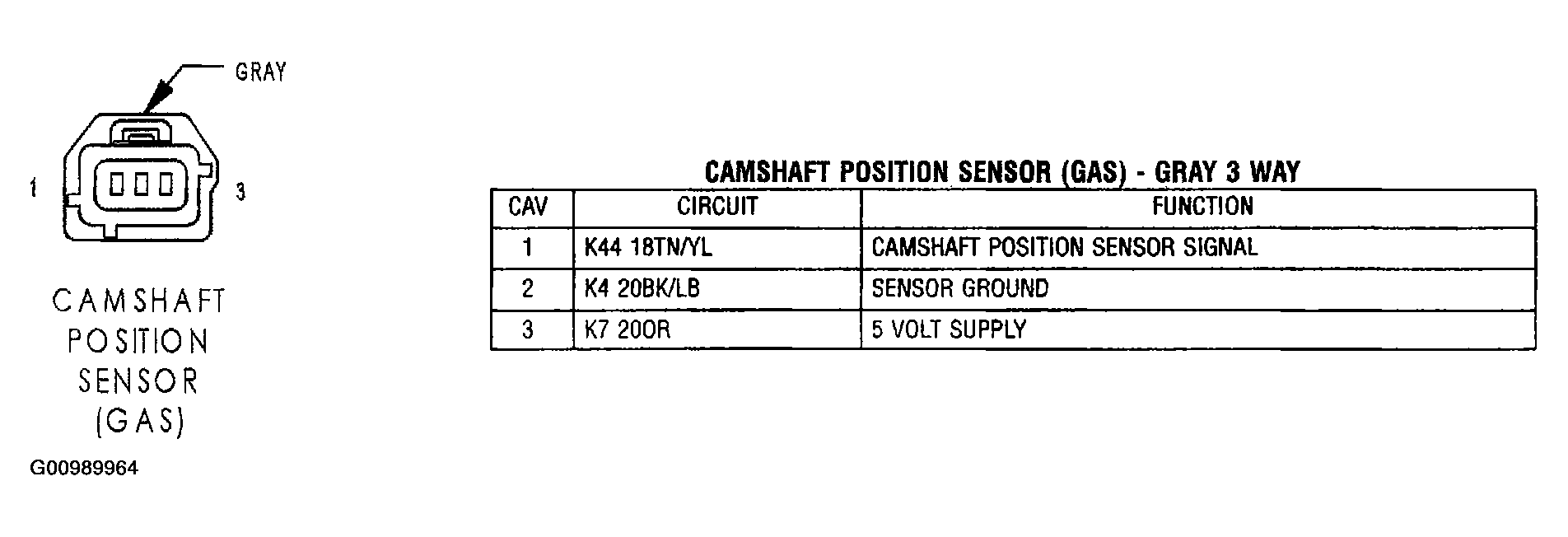

Fig 5: Identifying Camshaft Position Sensor (Gas) - Gray 3 Way - Connector Pinouts

G00989964

Courtesy of DAIMLERCHRYSLER CORP.

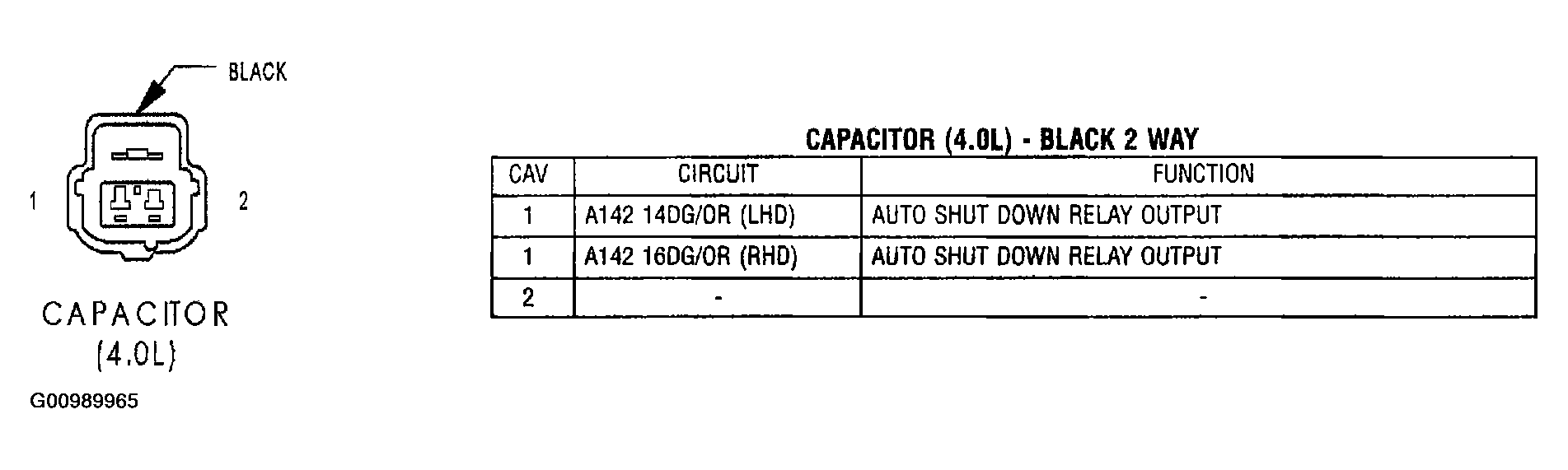

Fig 6: Identifying Capacitor (4.0L) - Black 2 Way - Connector Pinouts

G00989965

Courtesy of DAIMLERCHRYSLER CORP.

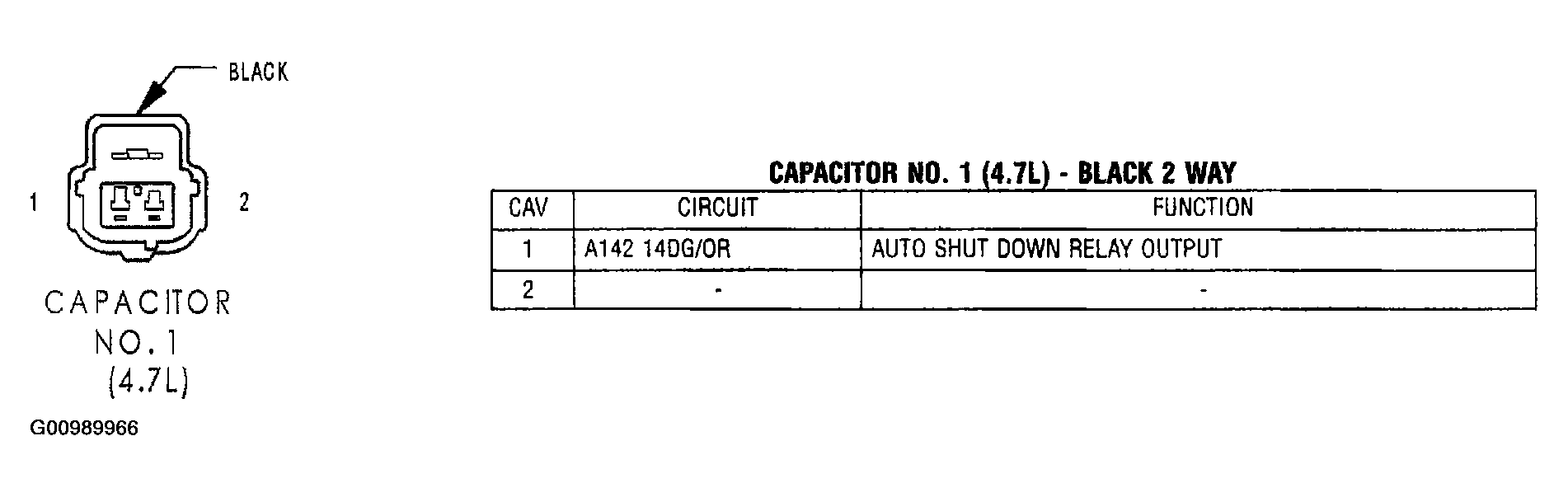

Fig 7: Identifying Capacitor No. 1 (4.7L) - Black 2 Way - Connector Pinouts

G00989966

Courtesy of DAIMLERCHRYSLER CORP.

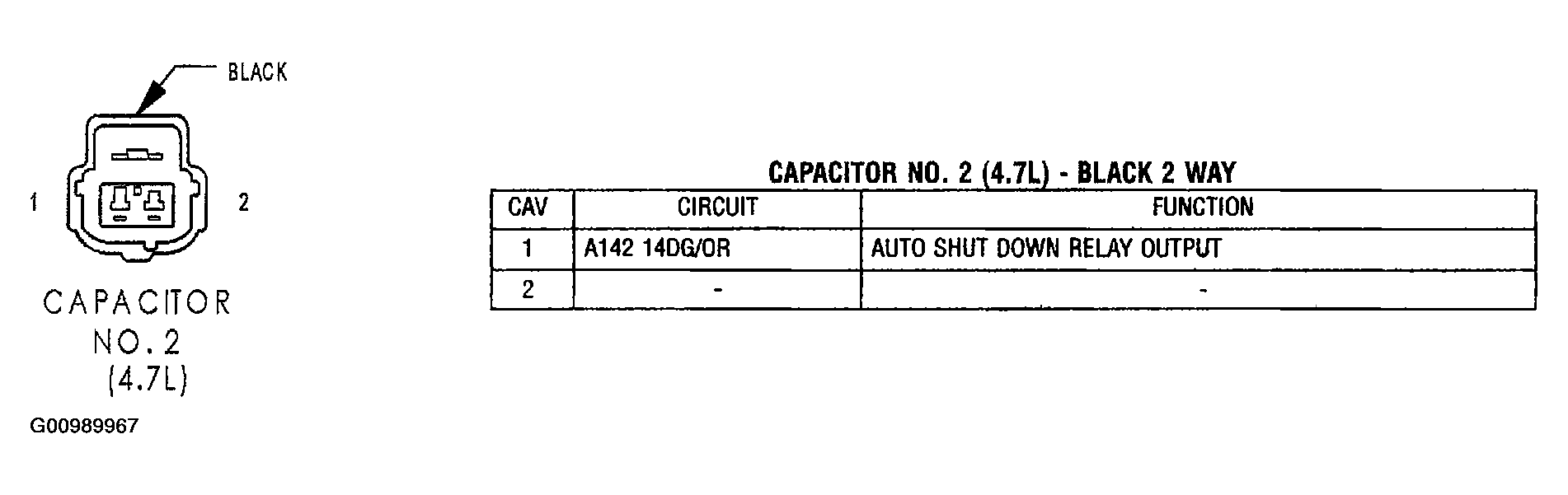

Fig 8: Identifying Capacitor No. 2 (4.7L) - Black 2 Way - Connector Pinouts

G00989967

Courtesy of DAIMLERCHRYSLER CORP.

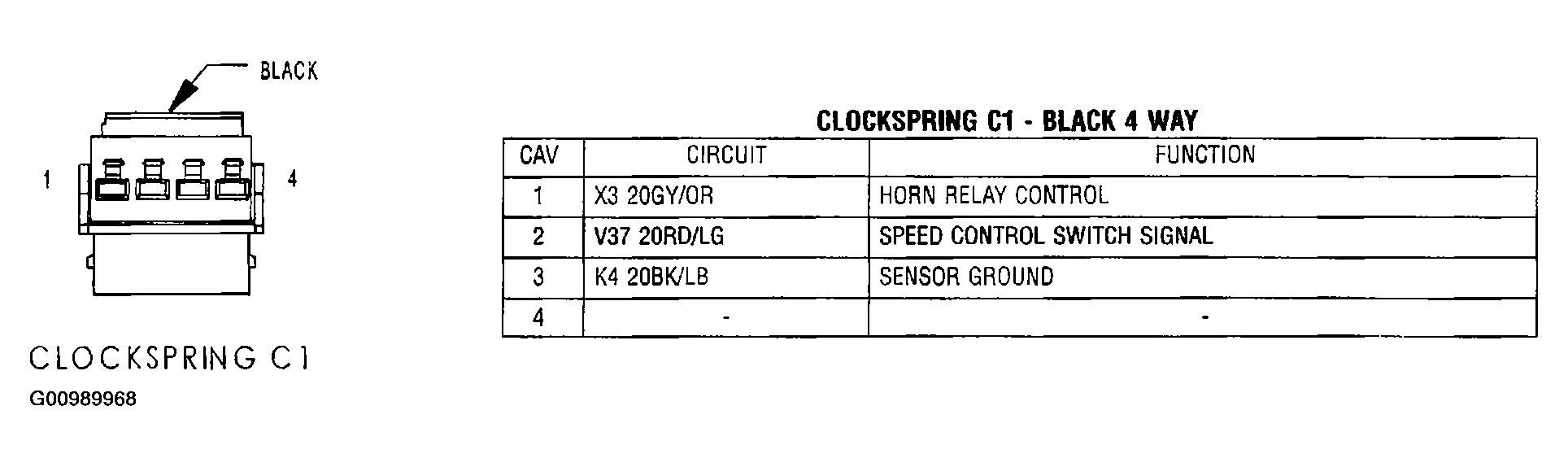

Fig 9: Identifying Clockspring C1 - Black 4 Way - Connector Pinouts

G00989968

Courtesy of DAIMLERCHRYSLER CORP.

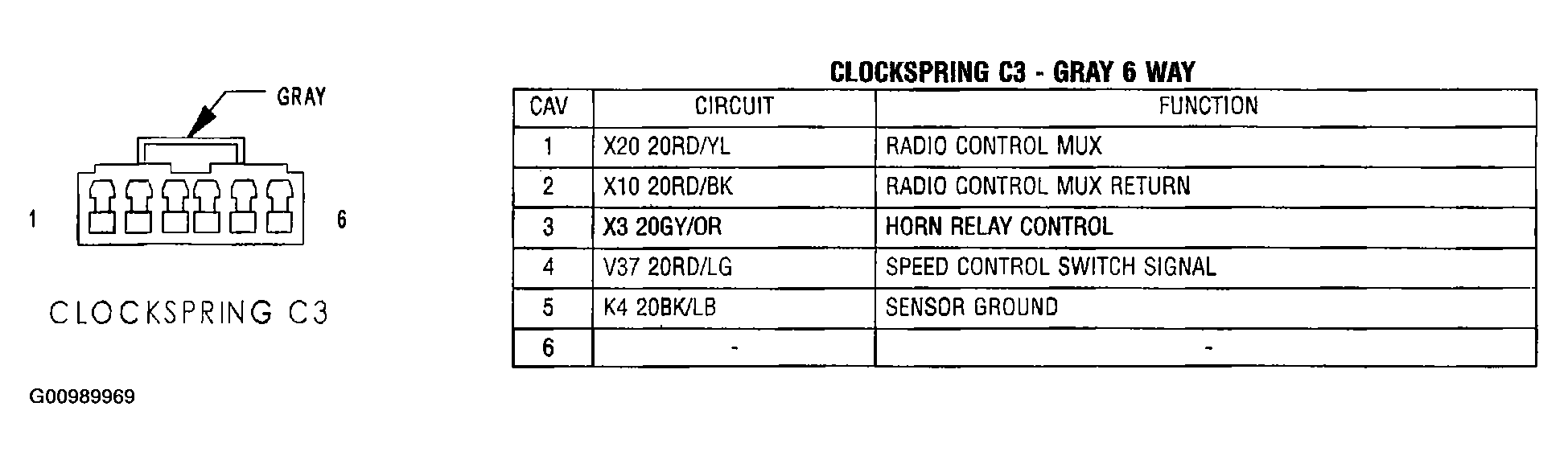

Fig 10: Identifying Clockspring C3 - Gray 6 Way - Connector Pinouts

G00989969

Courtesy of DAIMLERCHRYSLER CORP.

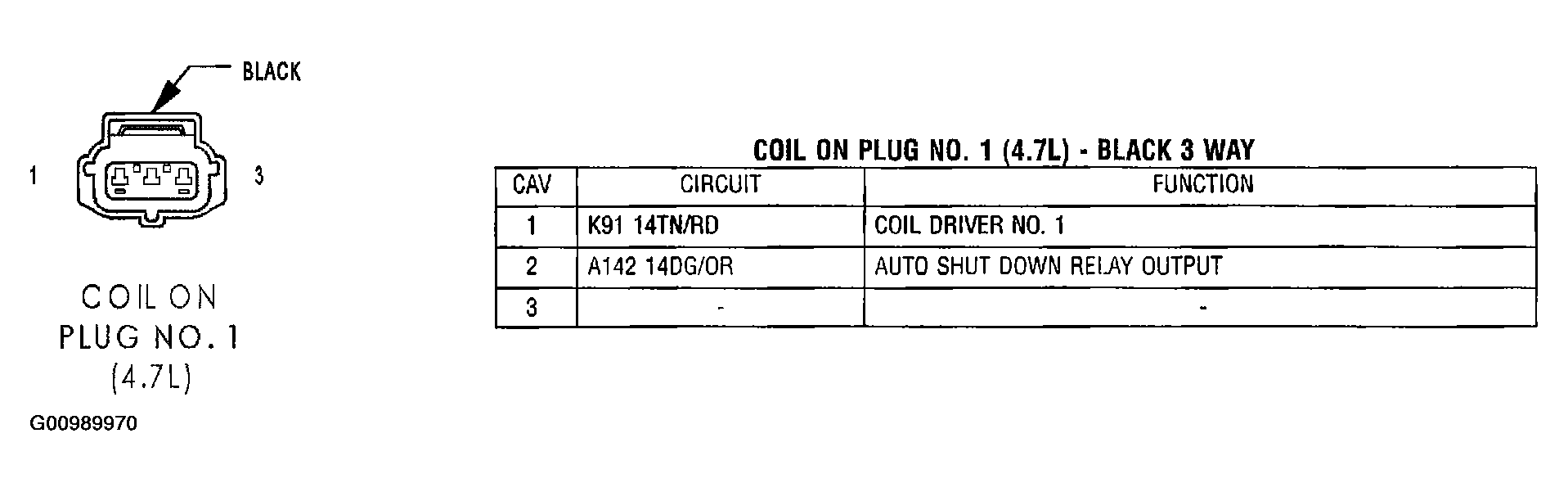

Fig 11: Identifying Coil On Plug No. 1 (4.7L) - Black 3 Way - Connector Pinouts

G00989970

Courtesy of DAIMLERCHRYSLER CORP.

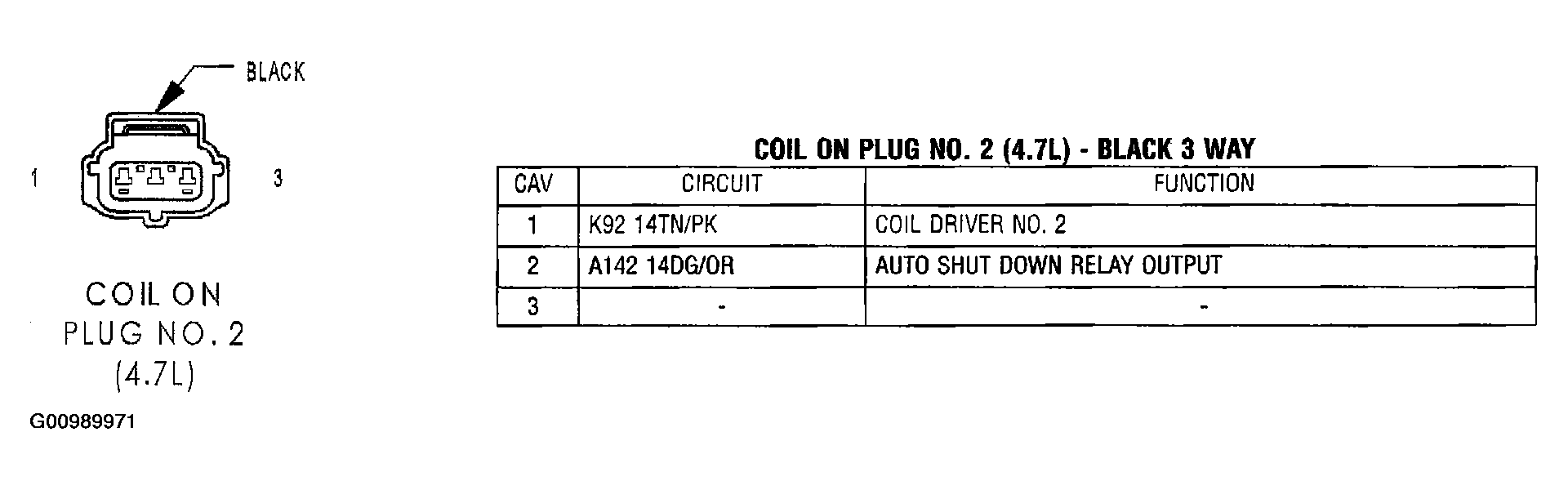

Fig 12: Identifying Coil On Plug No. 2 (4.7L) - Black 3 Way - Connector Pinouts

G00989971

Courtesy of DAIMLERCHRYSLER CORP.

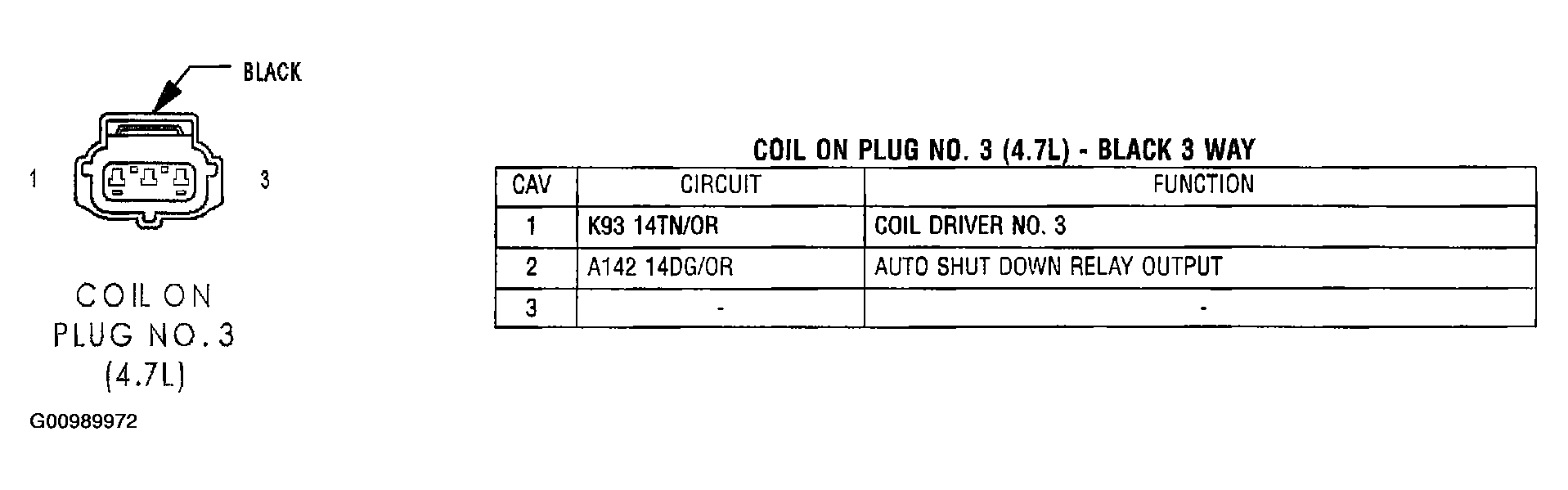

Fig 13: Identifying Coil On Plug No. 3 (4.7L) - Black 3 Way - Connector Pinouts

G00989972

Courtesy of DAIMLERCHRYSLER CORP.

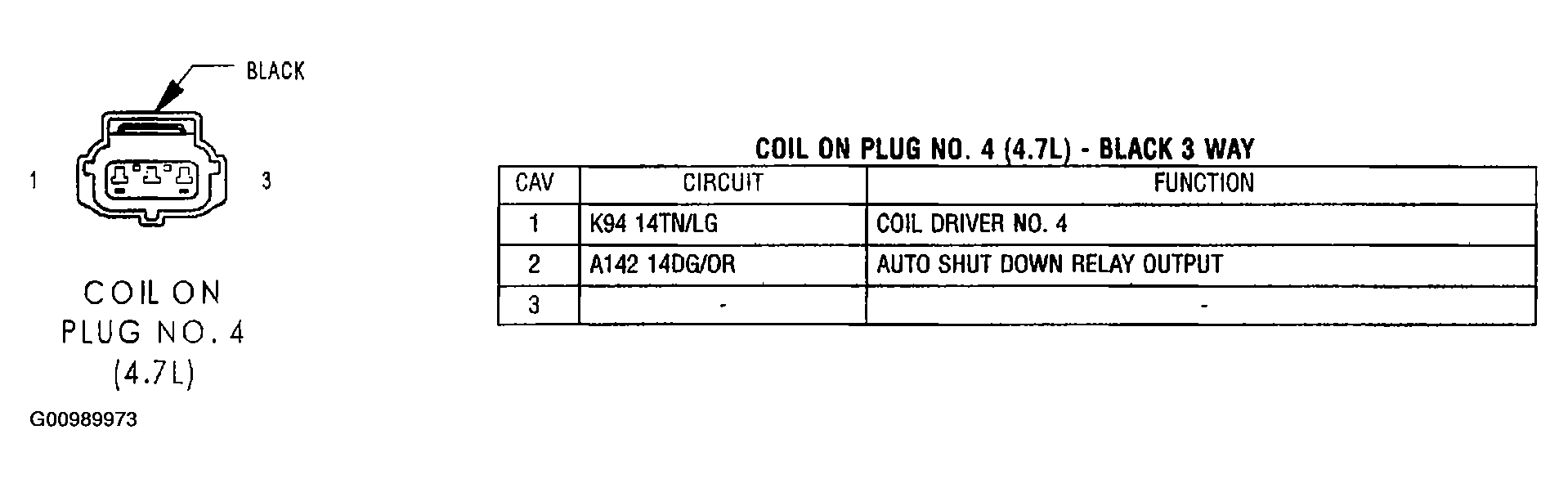

Fig 14: Identifying Coil On Plug No. 4 (4.7L) - Black 3 Way - Connector Pinouts

G00989973

Courtesy of DAIMLERCHRYSLER CORP.

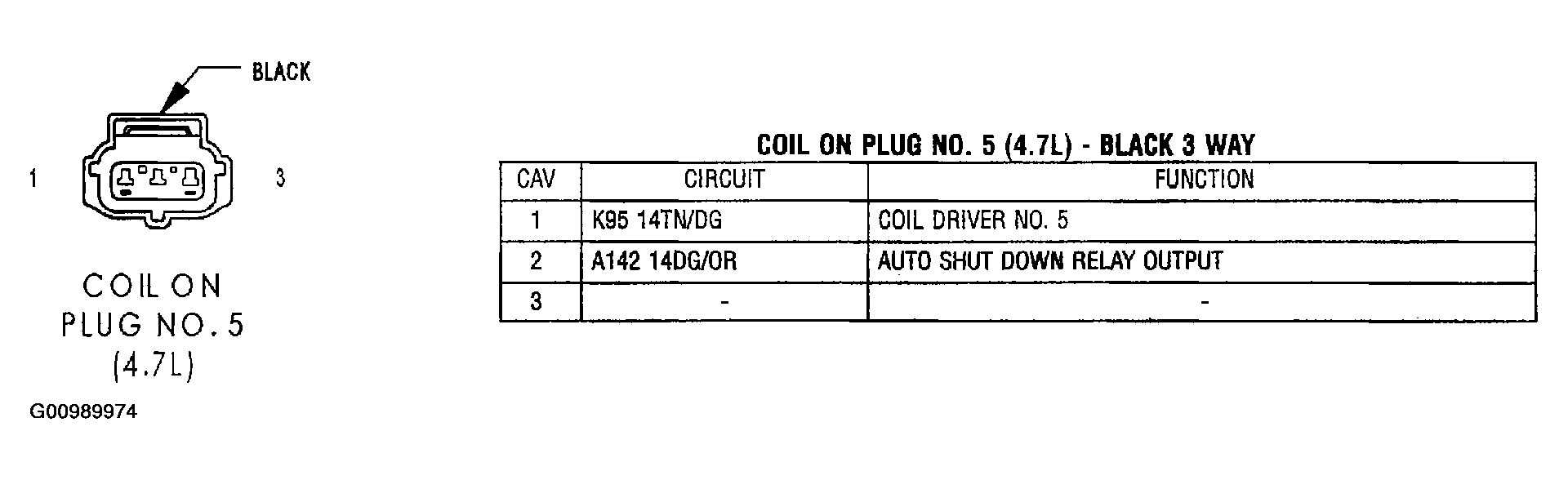

Fig 15: Identifying Coil On Plug No. 5 (4.7L) - Black 3 Way - Connector Pinouts

G00989974

Courtesy of DAIMLERCHRYSLER CORP.

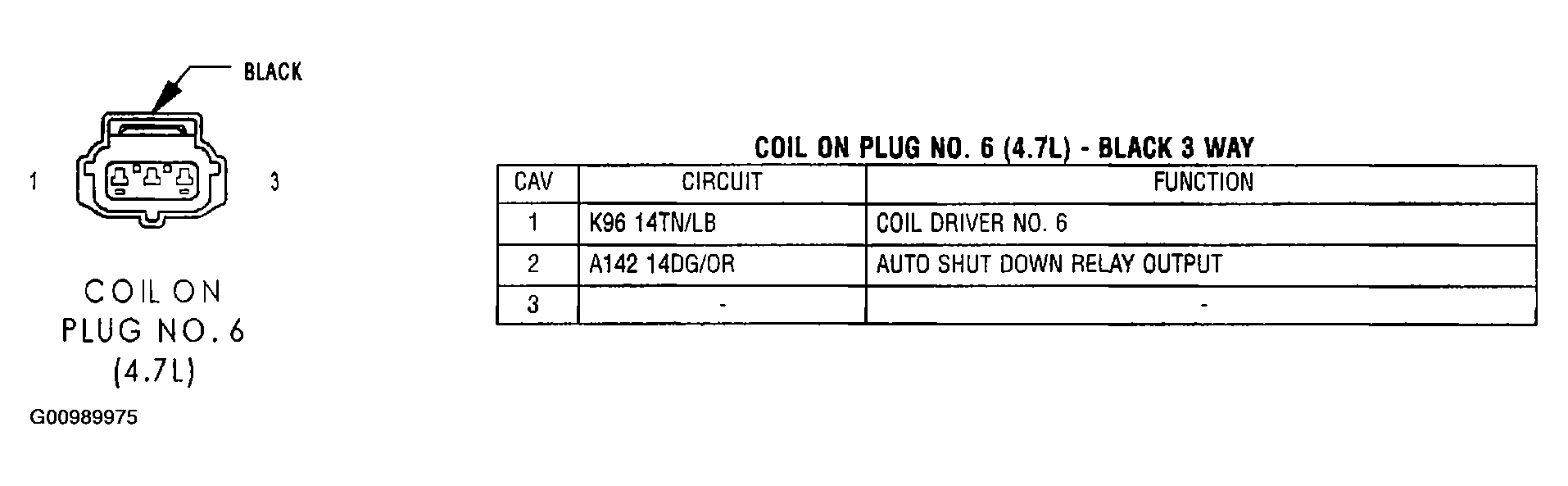

Fig 16: Identifying Coil On Plug No. 6 (4.7L) - Black 3 Way - Connector Pinouts

G00989975

Courtesy of DAIMLERCHRYSLER CORP.

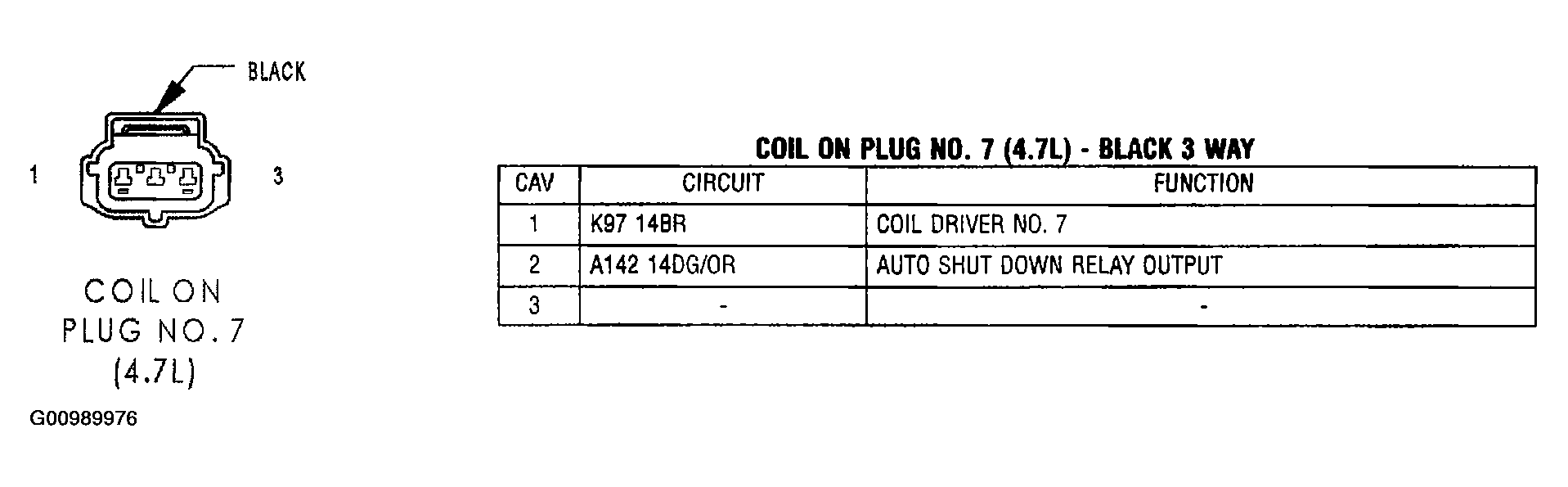

Fig 17: Identifying Coil On Plug No. 7 (4.7L) - Black 3 Way - Connector Pinouts

G00989976

Courtesy of DAIMLERCHRYSLER CORP.

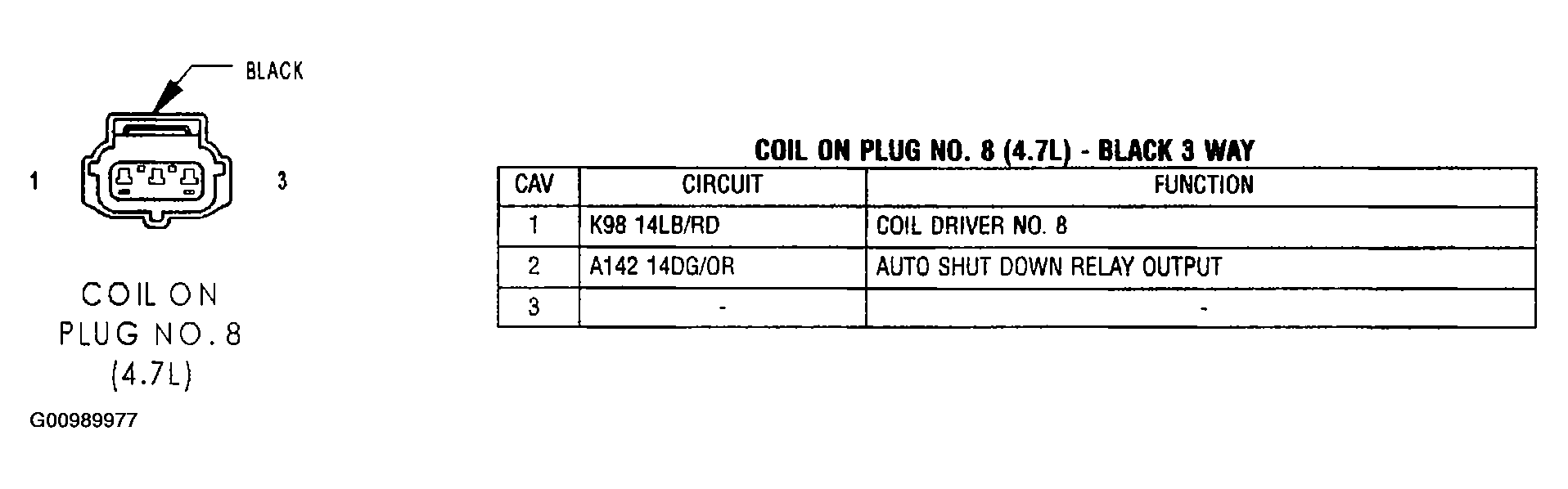

Fig 18: Identifying Coil On Plug No. 8 (4.7L) - Black 3 Way - Connector Pinouts

G00989977

Courtesy of DAIMLERCHRYSLER CORP.

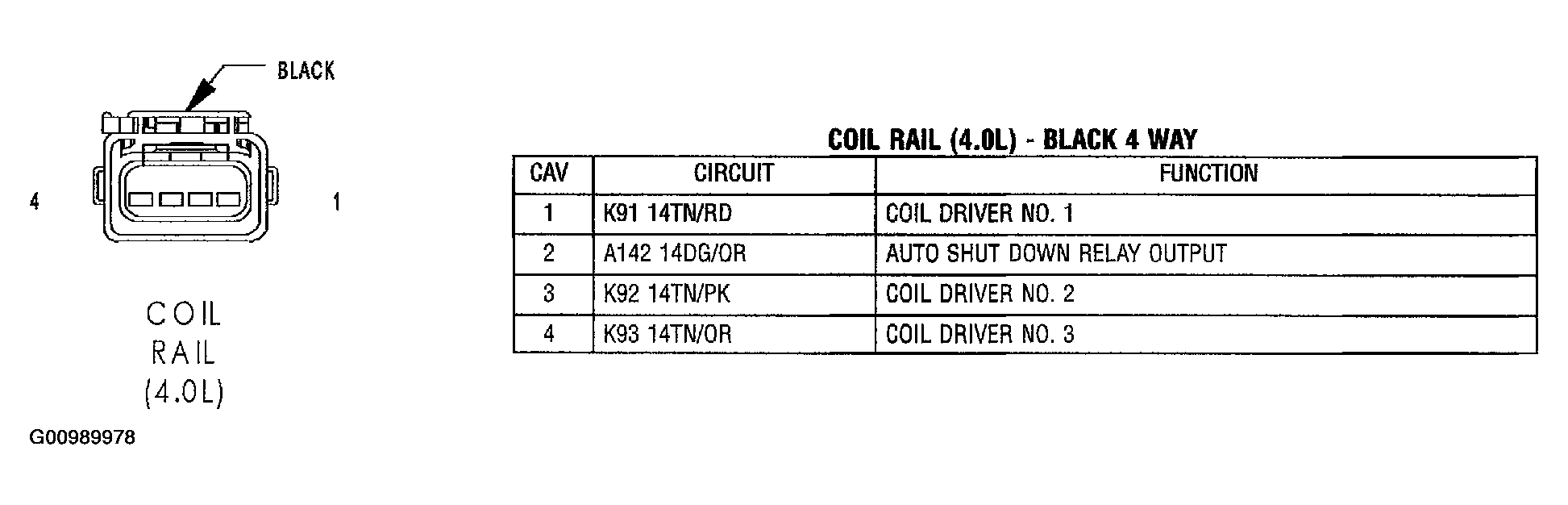

Fig 19: Identifying Coil Rail (4.0L) - Black 4 Way - Connector Pinouts

G00989978

Courtesy of DAIMLERCHRYSLER CORP.

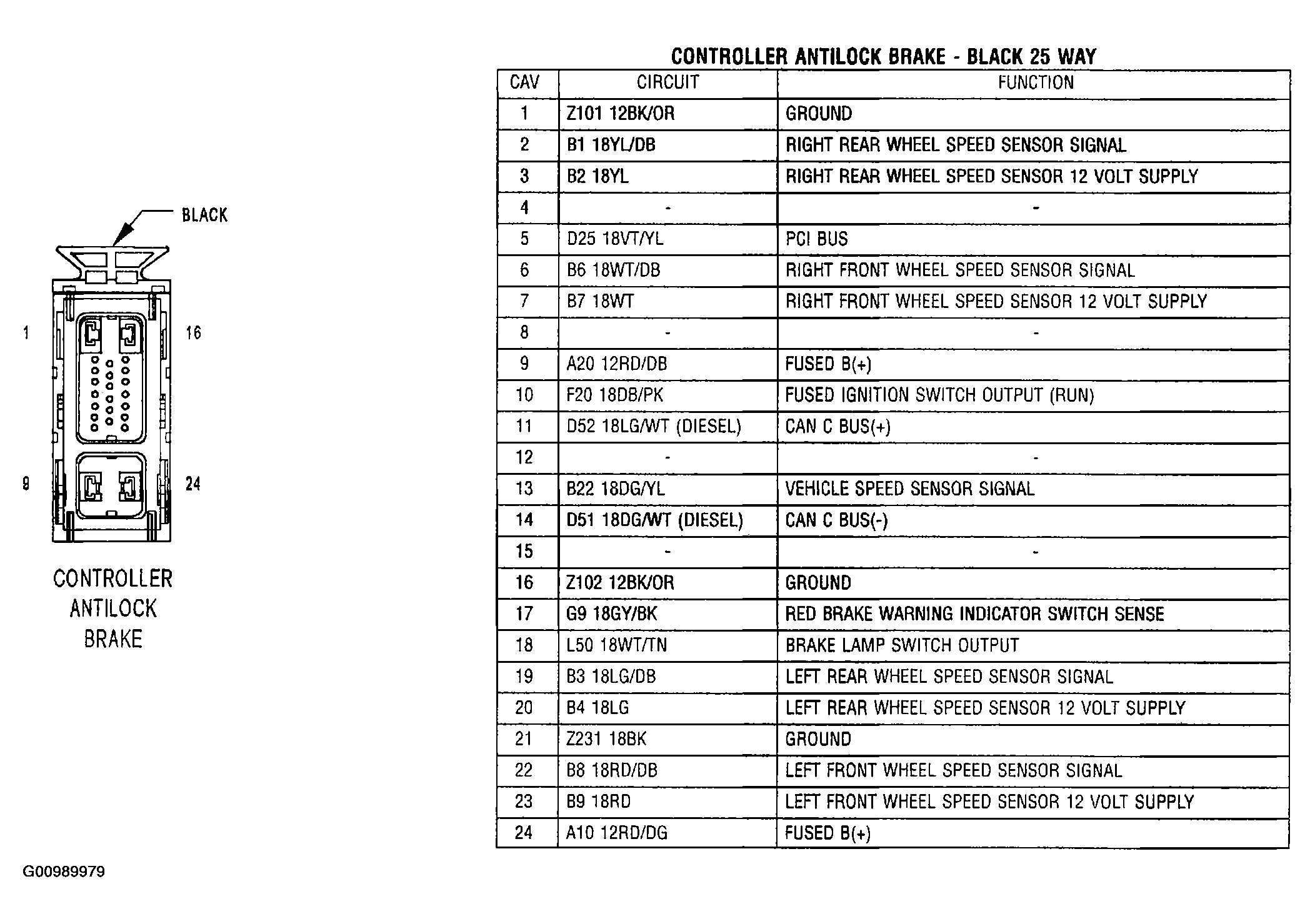

Fig 20: Identifying Controller Antilock Brake - Black 25 Way - Connector Pinouts

G00989979

Courtesy of DAIMLERCHRYSLER CORP.

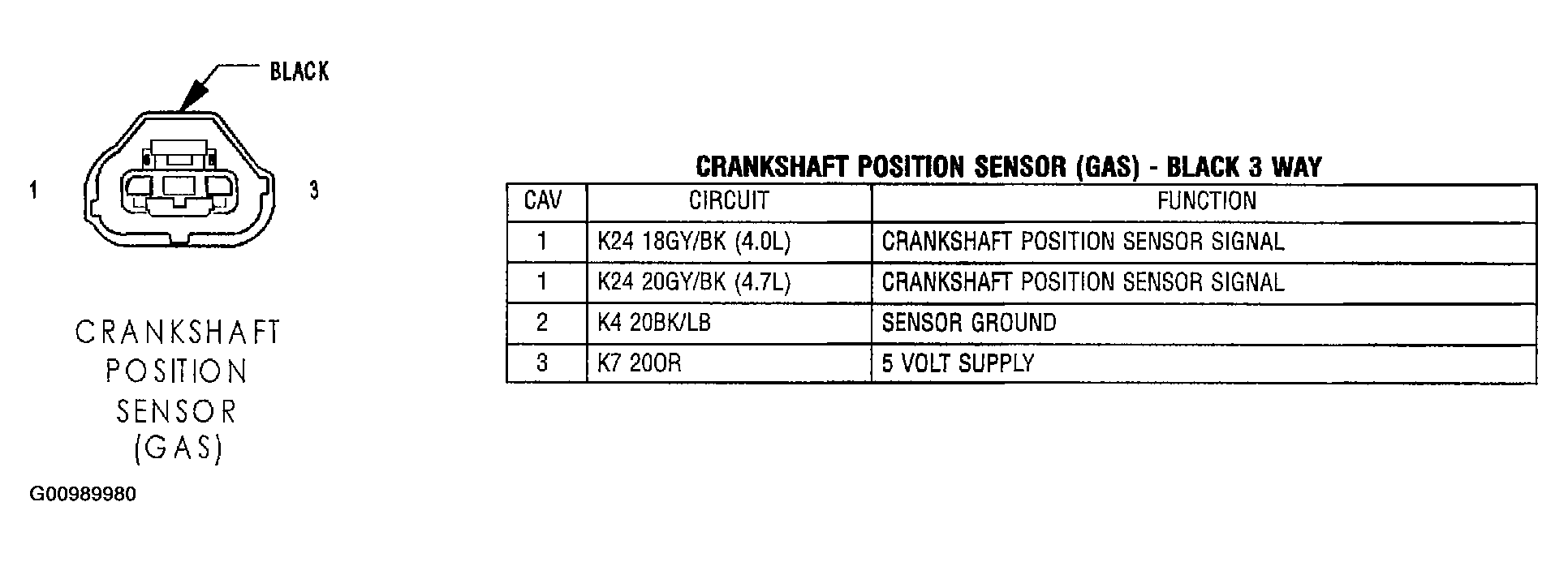

Fig 21: Identifying Crankshaft Position Sensor (Gas) - Black 3 Way - Connector Pinouts

G00989980

Courtesy of DAIMLERCHRYSLER CORP.

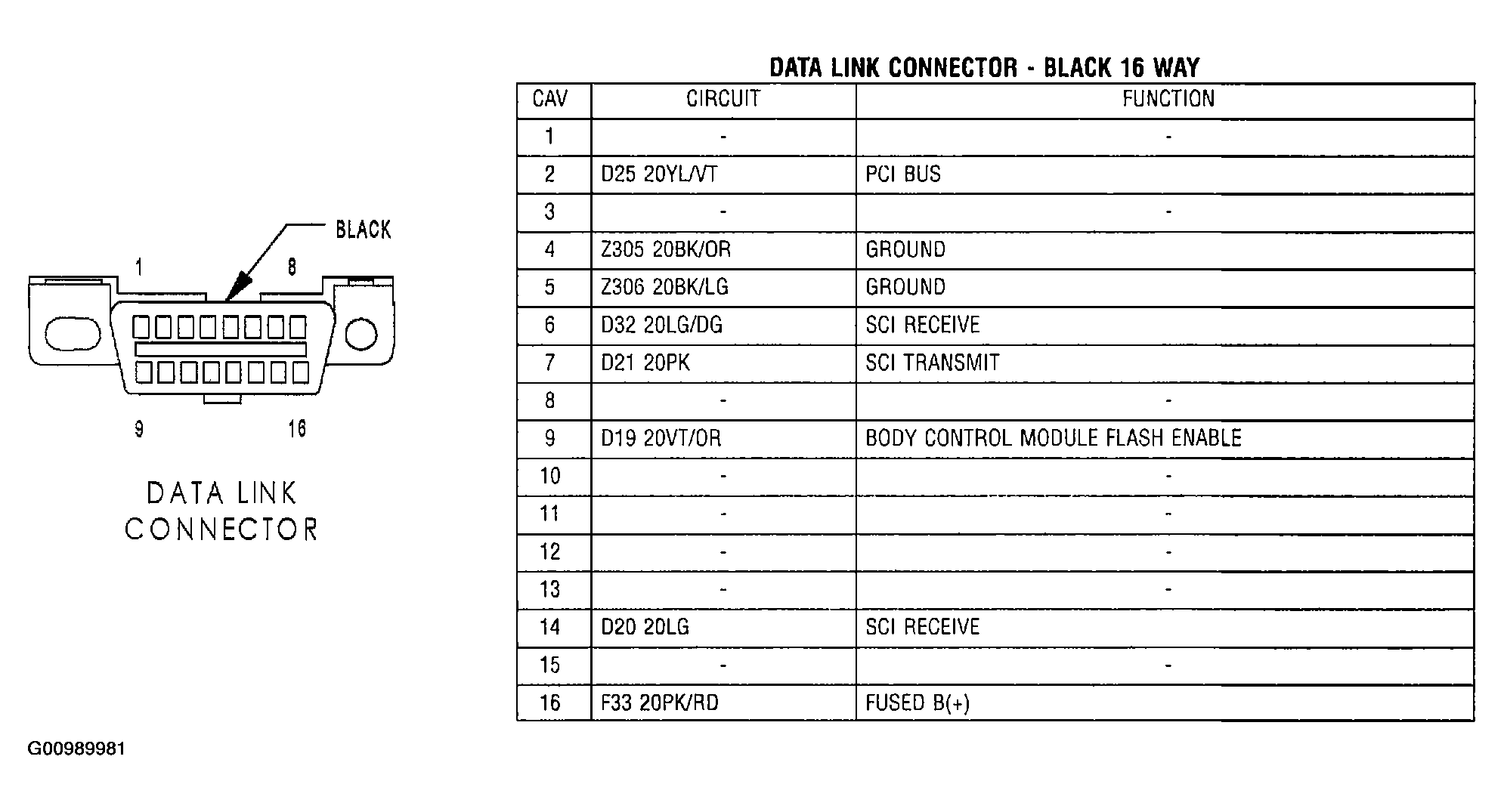

Fig 22: Identifying Data Link Connector - Black 16 Way - Connector Pinouts

G00989981

Courtesy of DAIMLERCHRYSLER CORP.

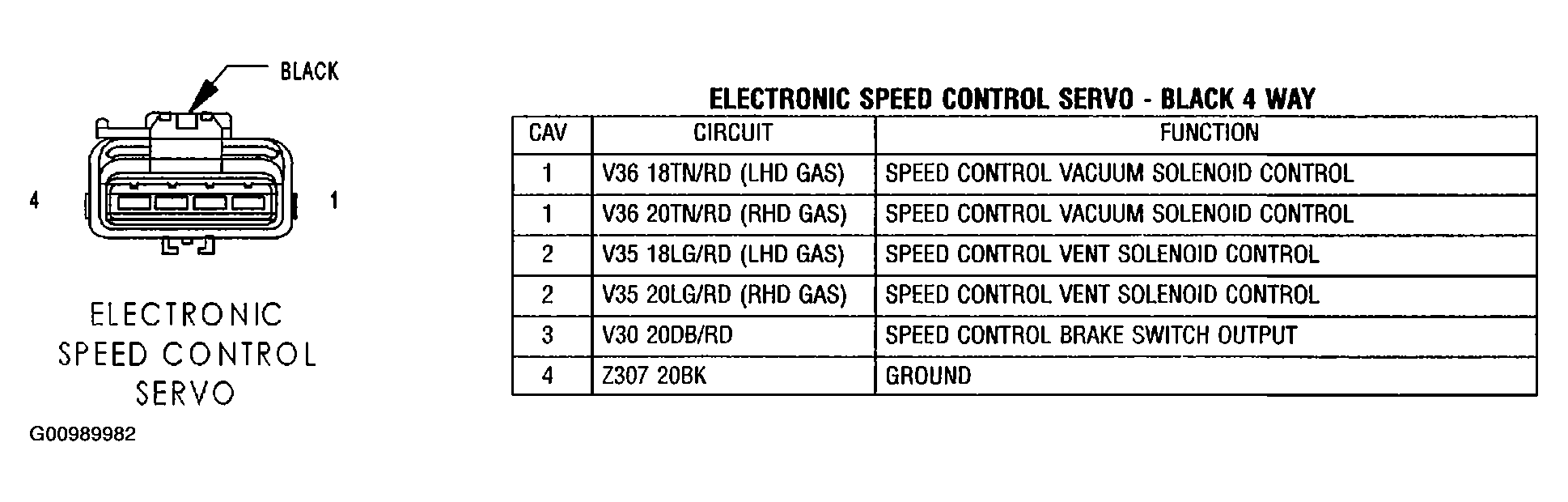

Fig 23: Identifying Electronic Speed Control Servo - Black 4 Way - Connector Pinouts

G00989982

Courtesy of DAIMLERCHRYSLER CORP.

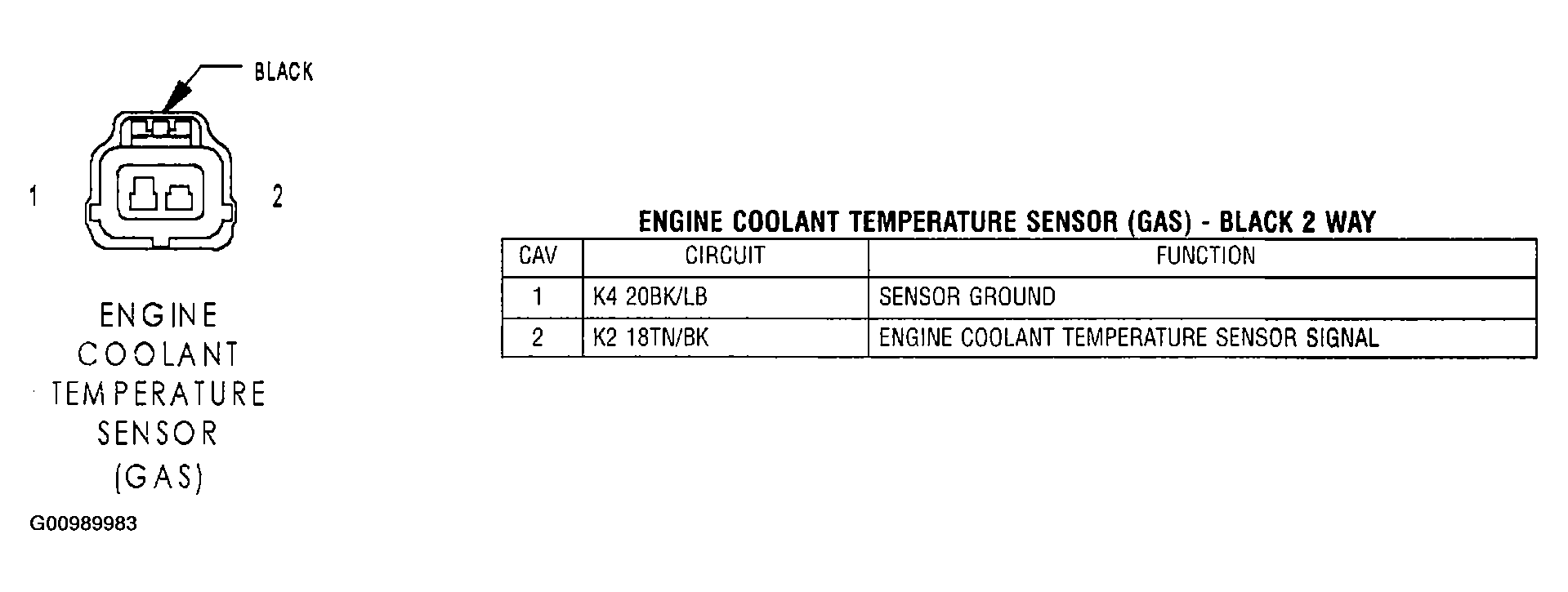

Fig 24: Identifying Engine Coolant Temperature Sensor (Gas) - Black 2 Way - Connector Pinouts

G00989983

Courtesy of DAIMLERCHRYSLER CORP.

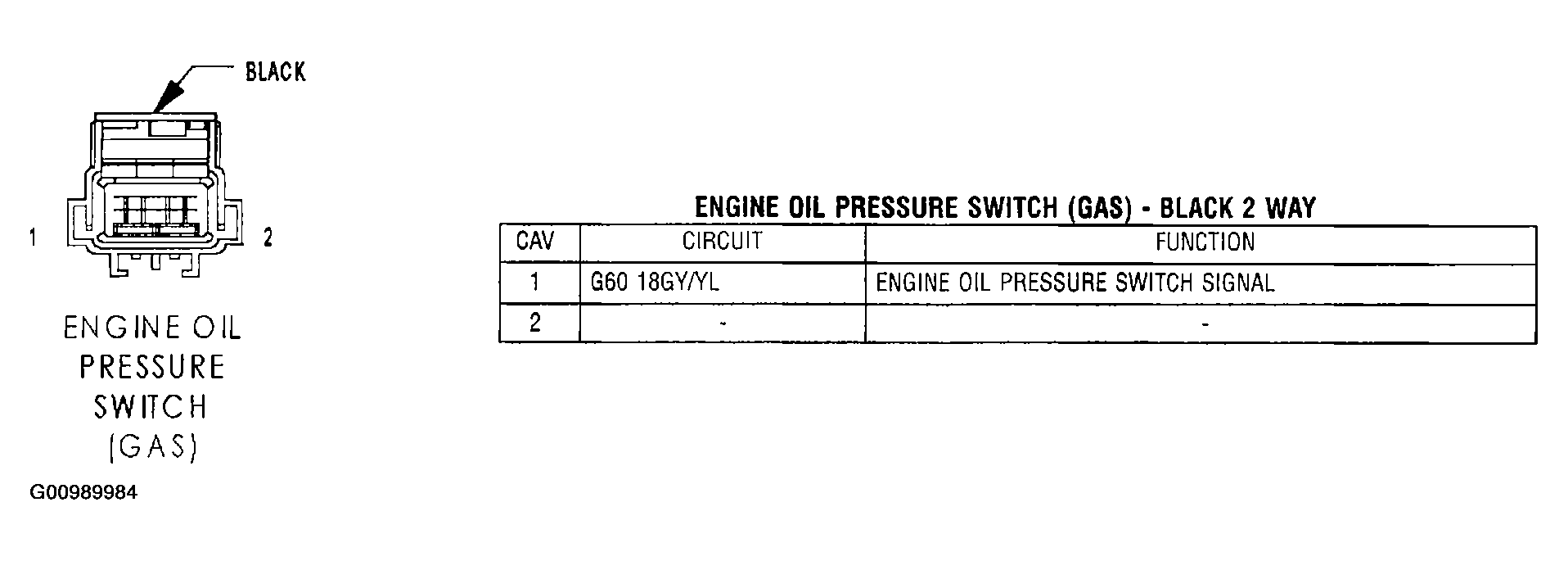

Fig 25: Identifying Engine Oil Pressure Switch (Gas) - Black 2 Way - Connector Pinouts

G00989984

Courtesy of DAIMLERCHRYSLER CORP.

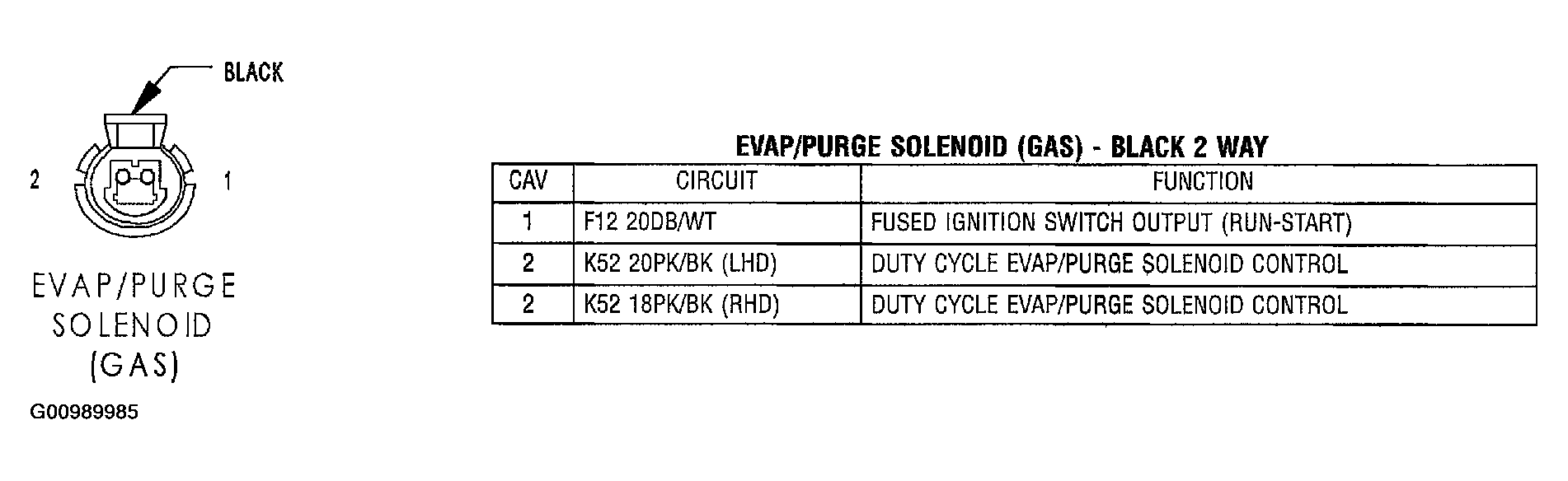

Fig 26: Identifying EVAP/Purge Solenoid (Gas) - Black 2 Way - Connector Pinouts

G00989985

Courtesy of DAIMLERCHRYSLER CORP.

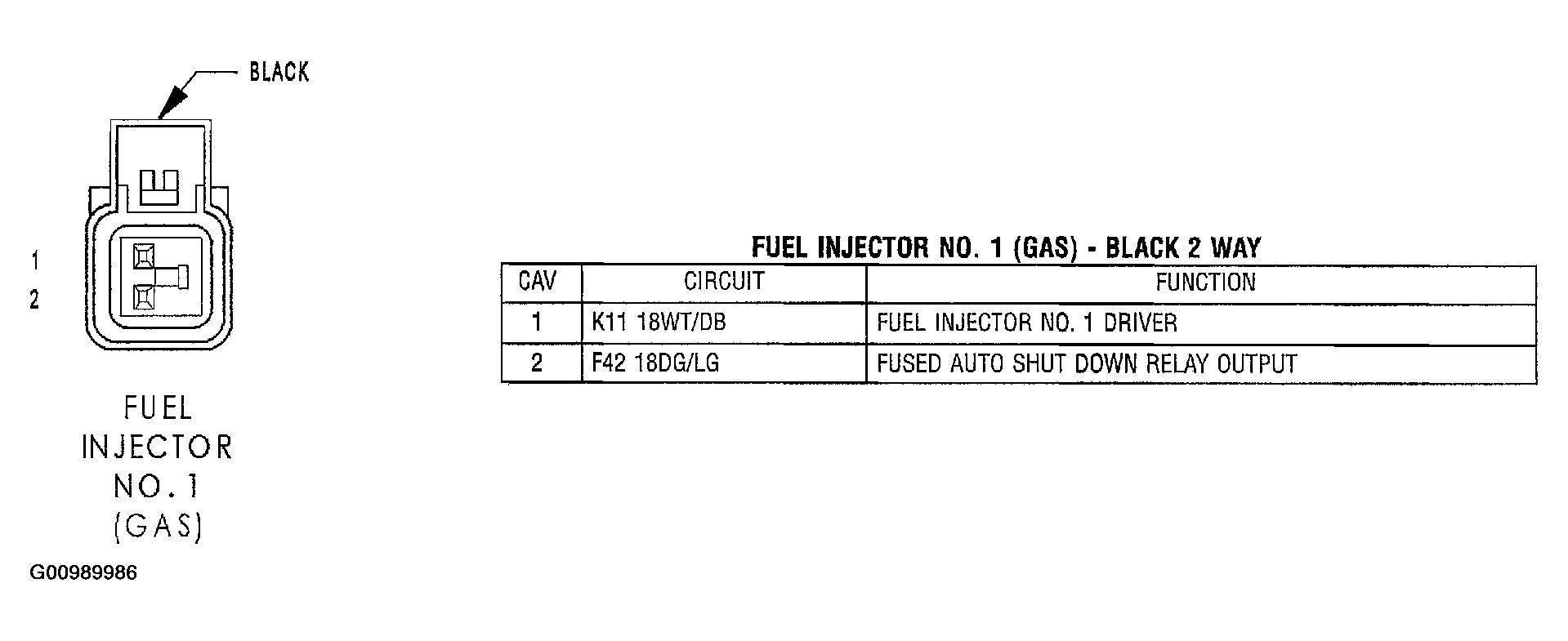

Fig 27: Identifying Fuel Injector No. 1 (Gas) - Black 2 Way - Connector Pinouts

G00989986

Courtesy of DAIMLERCHRYSLER CORP.

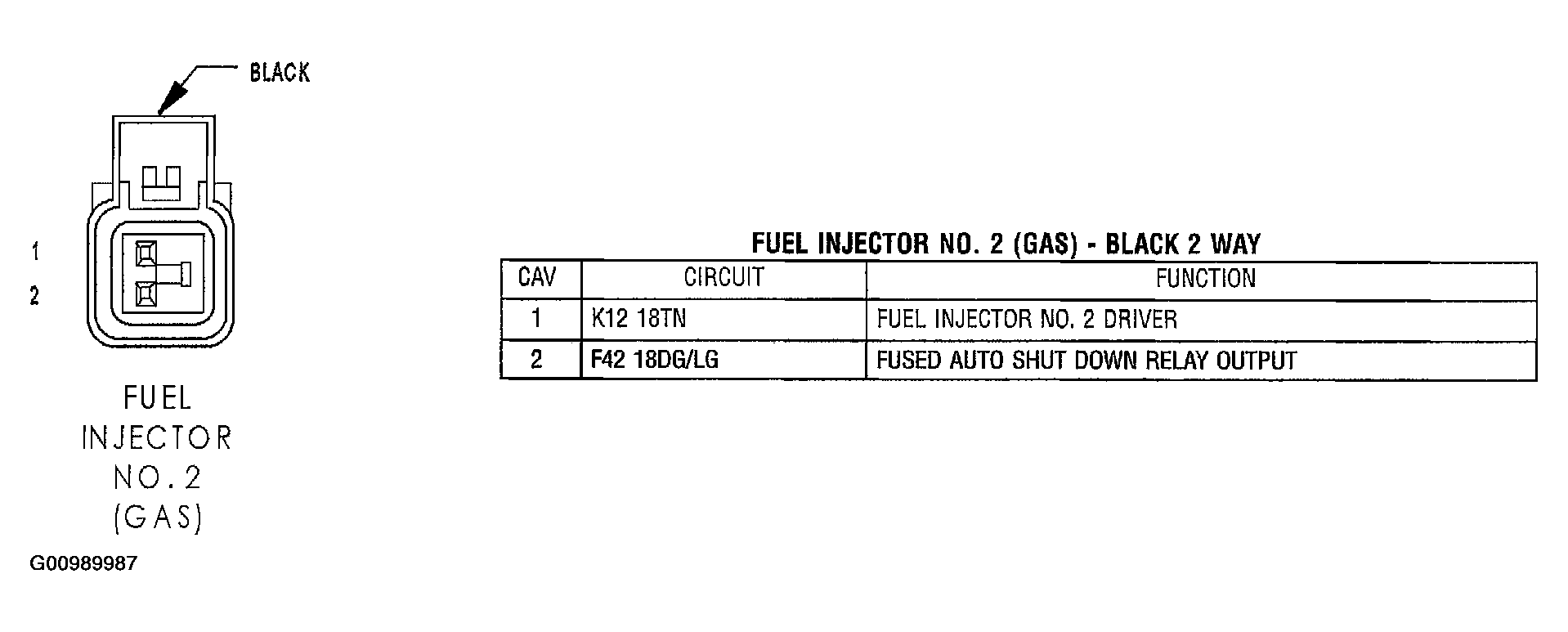

Fig 28: Identifying Fuel Injector No. 2 (Gas) - Black 2 Way - Connector Pinouts

G00989987

Courtesy of DAIMLERCHRYSLER CORP.

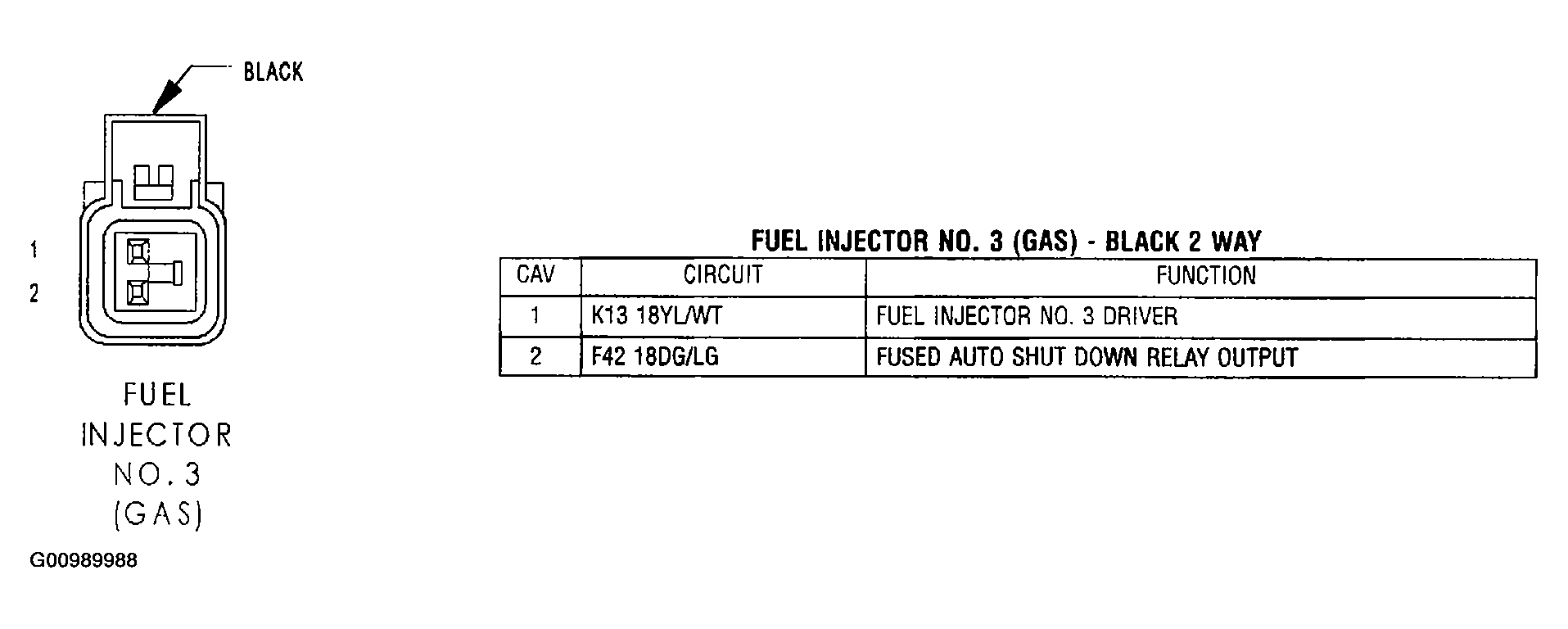

Fig 29: Identifying Fuel Injector No. 3 (Gas) - Black 2 Way - Connector Pinouts

G00989988

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Identifying Fuel Injector No. 4 (Gas) - Black 2 Way - Connector Pinouts

G00989989

Courtesy of DAIMLERCHRYSLER CORP.

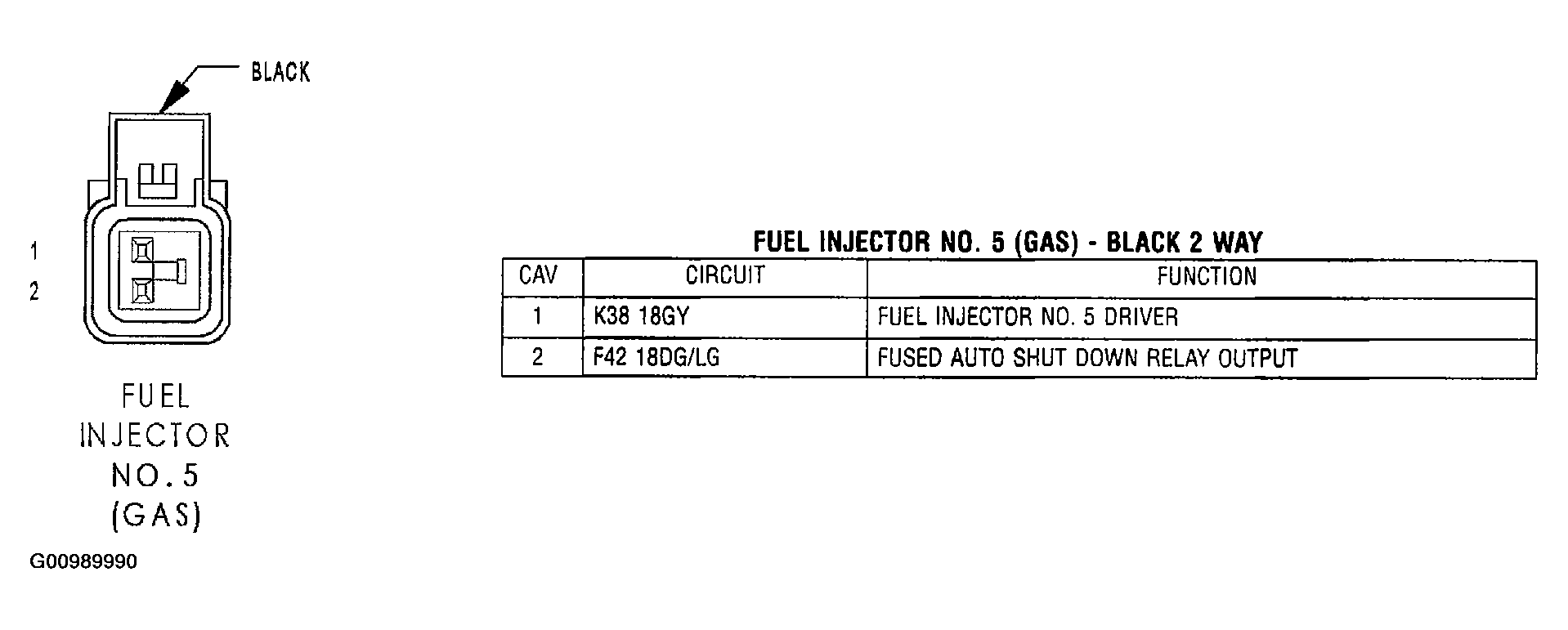

Fig 31: Identifying Fuel Injector No. 5 (Gas) - Black 2 Way - Connector Pinouts

G00989990

Courtesy of DAIMLERCHRYSLER CORP.

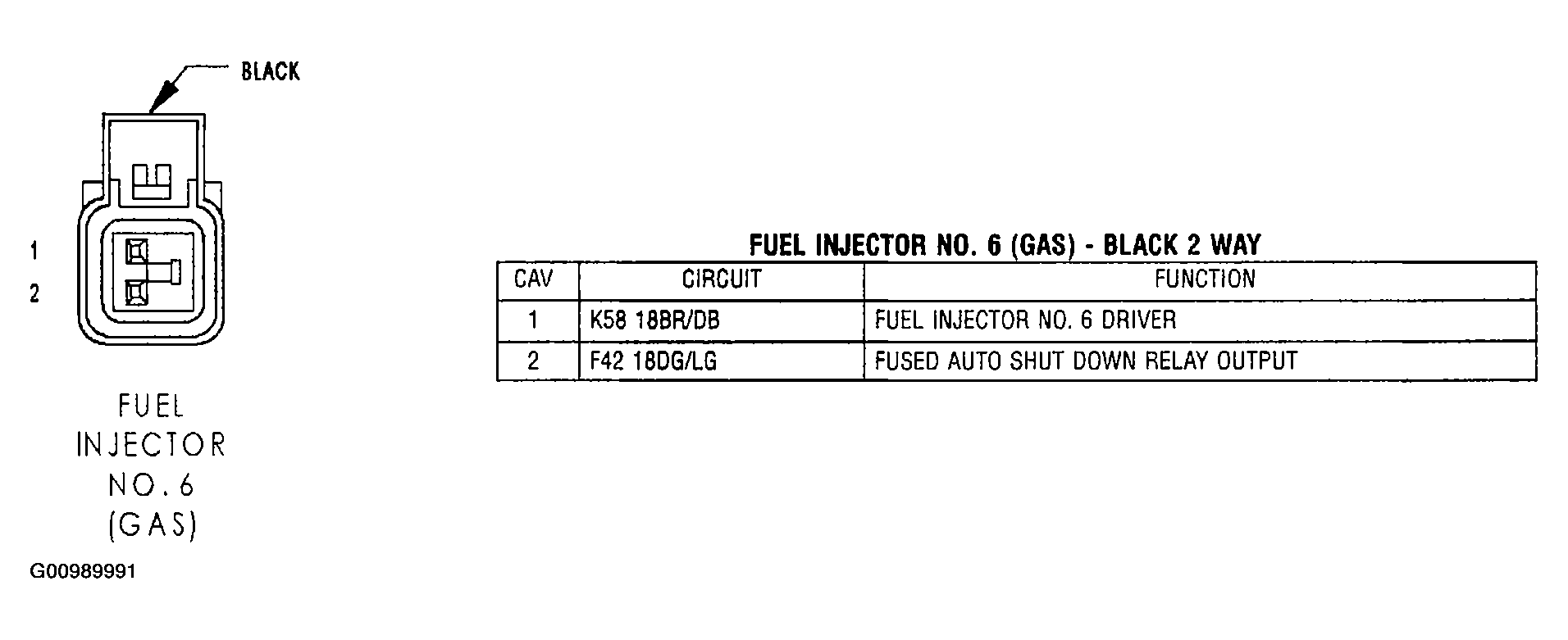

Fig 32: Identifying Fuel Injector No. 6 (Gas) - Black 2 Way - Connector Pinouts

G00989991

Courtesy of DAIMLERCHRYSLER CORP.

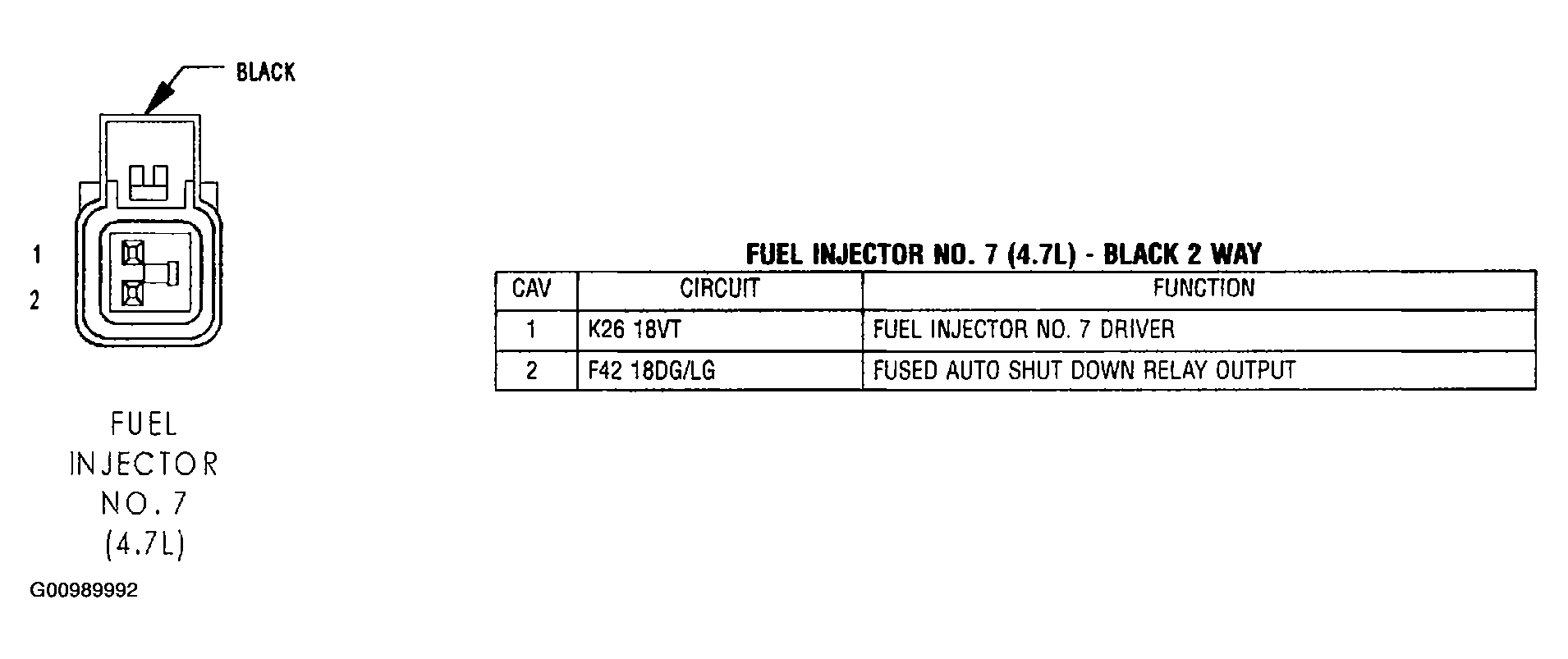

Fig 33: Identifying Fuel Injector No. 7 (4.7L) - Black 2 Way - Connector Pinouts

G00989992

Courtesy of DAIMLERCHRYSLER CORP.

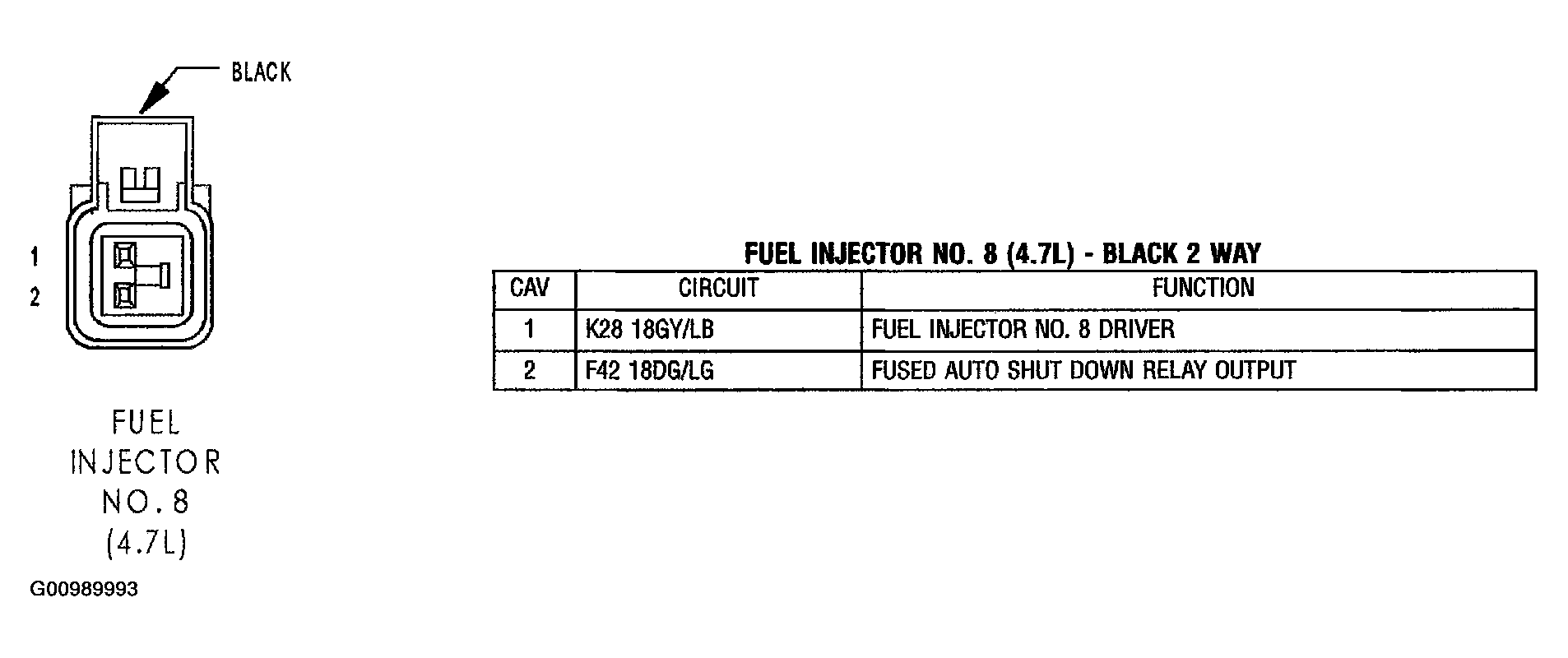

Fig 34: Identifying Fuel Injector No. 8 (4.7L) - Black 2 Way - Connector Pinouts

G00989993

Courtesy of DAIMLERCHRYSLER CORP.

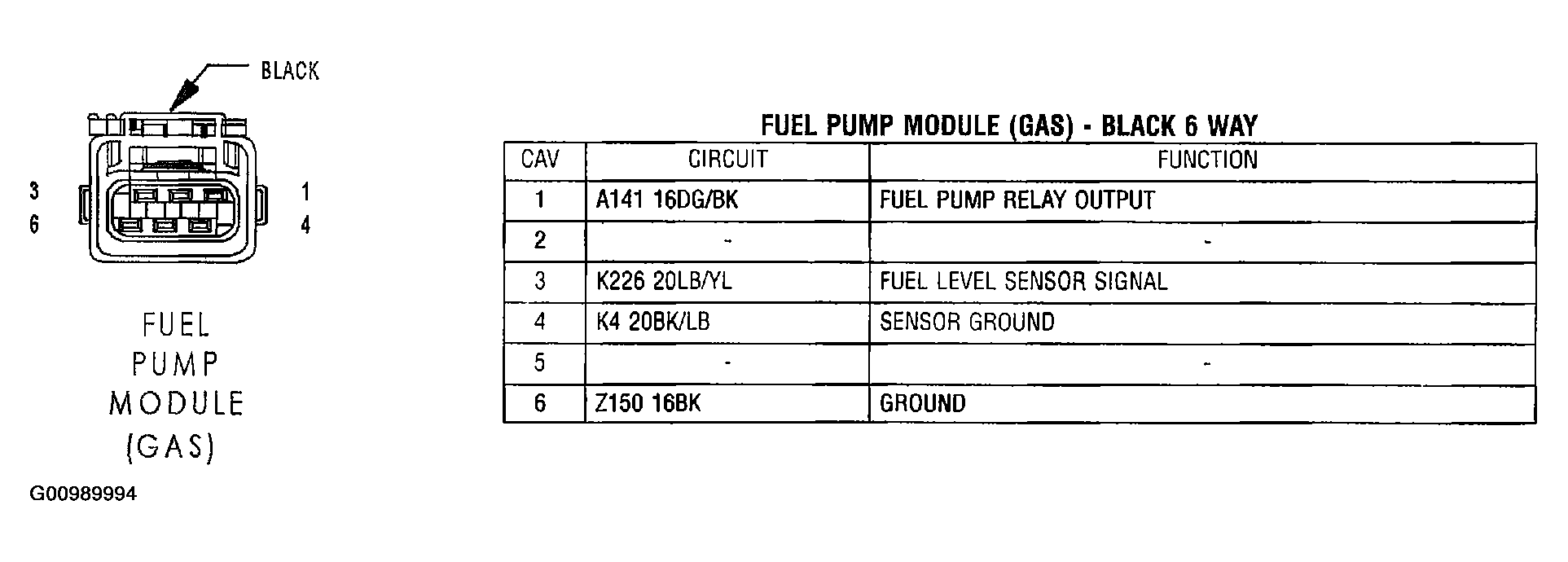

Fig 35: Identifying Fuel Pump Module (Gas) - Black 6 Way - Connector Pinouts

G00989994

Courtesy of DAIMLERCHRYSLER CORP.

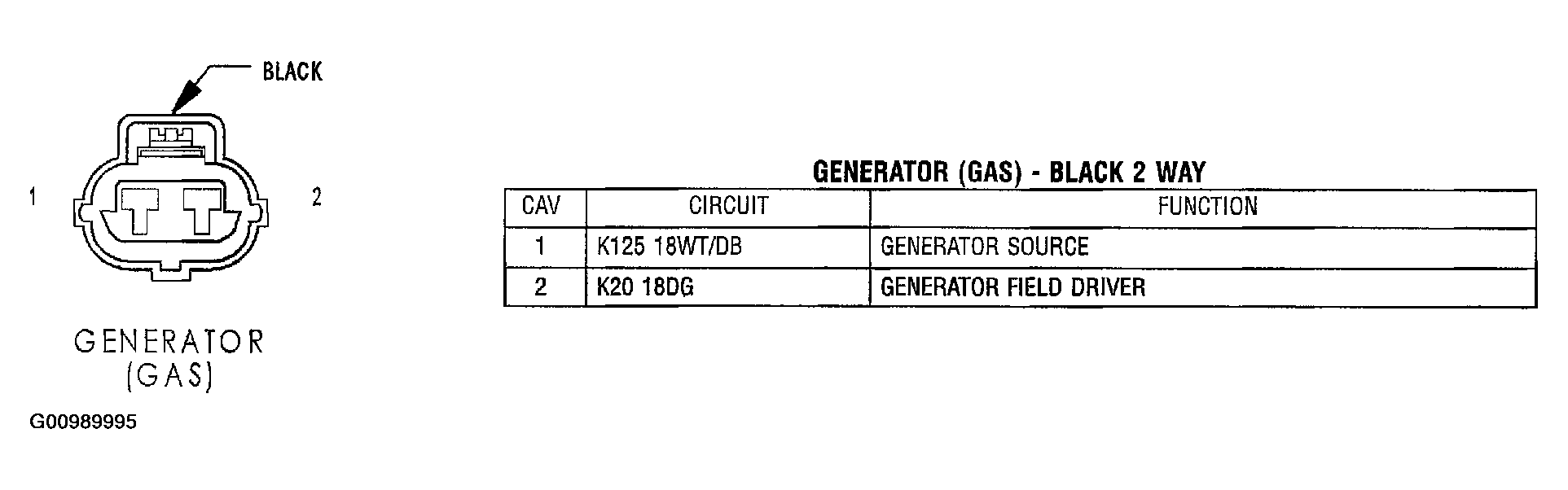

Fig 36: Identifying Generator (Gas) - Black 2 Way - Connector Pinouts

G00989995

Courtesy of DAIMLERCHRYSLER CORP.

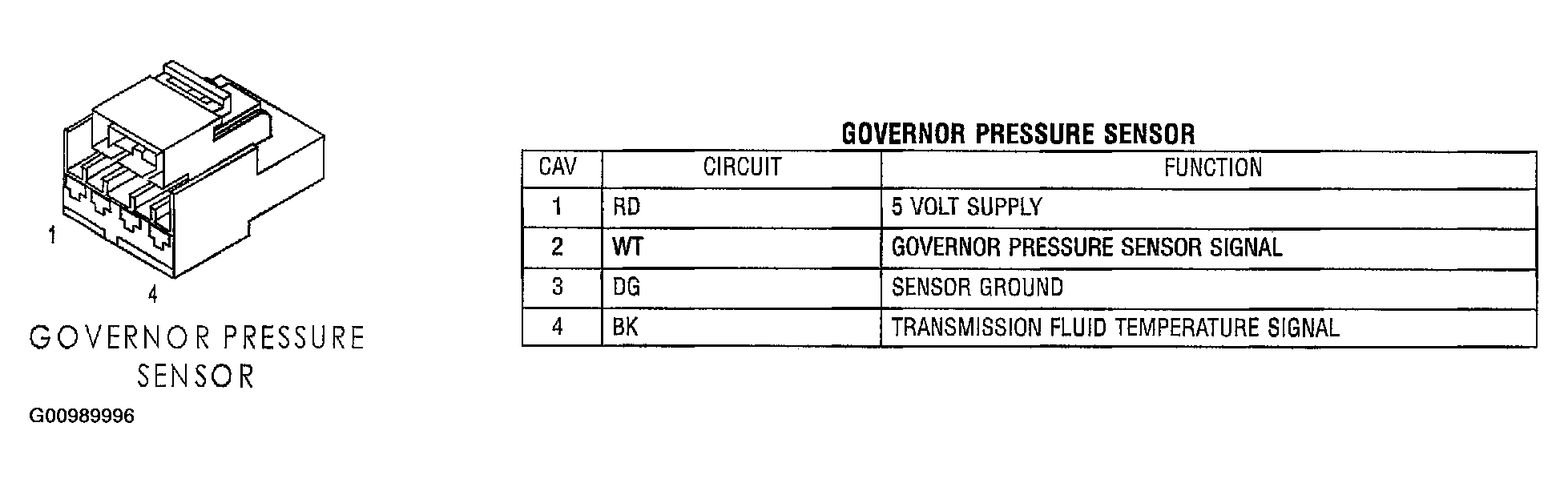

Fig 37: Identifying Governor Pressure Sensor - Connector Pinouts

G00989996

Courtesy of DAIMLERCHRYSLER CORP.

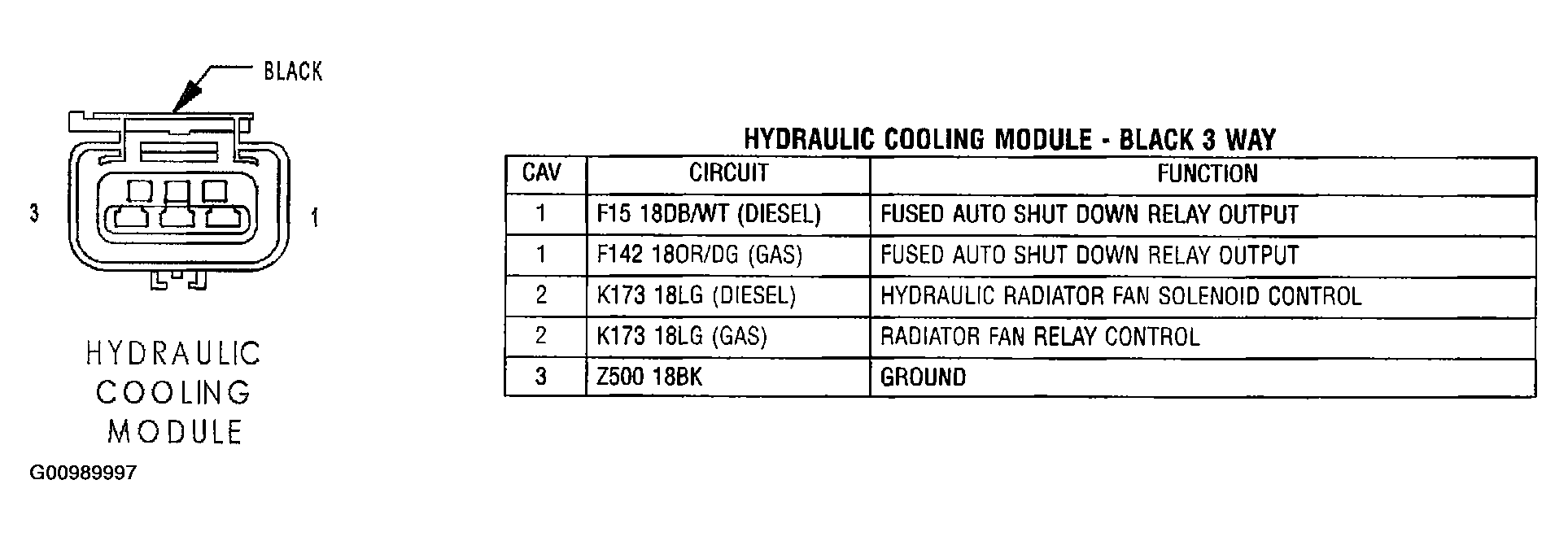

Fig 38: Identifying Hydraulic Cooling Module - Black 3 Way - Connector Pinouts

G00989997

Courtesy of DAIMLERCHRYSLER CORP.

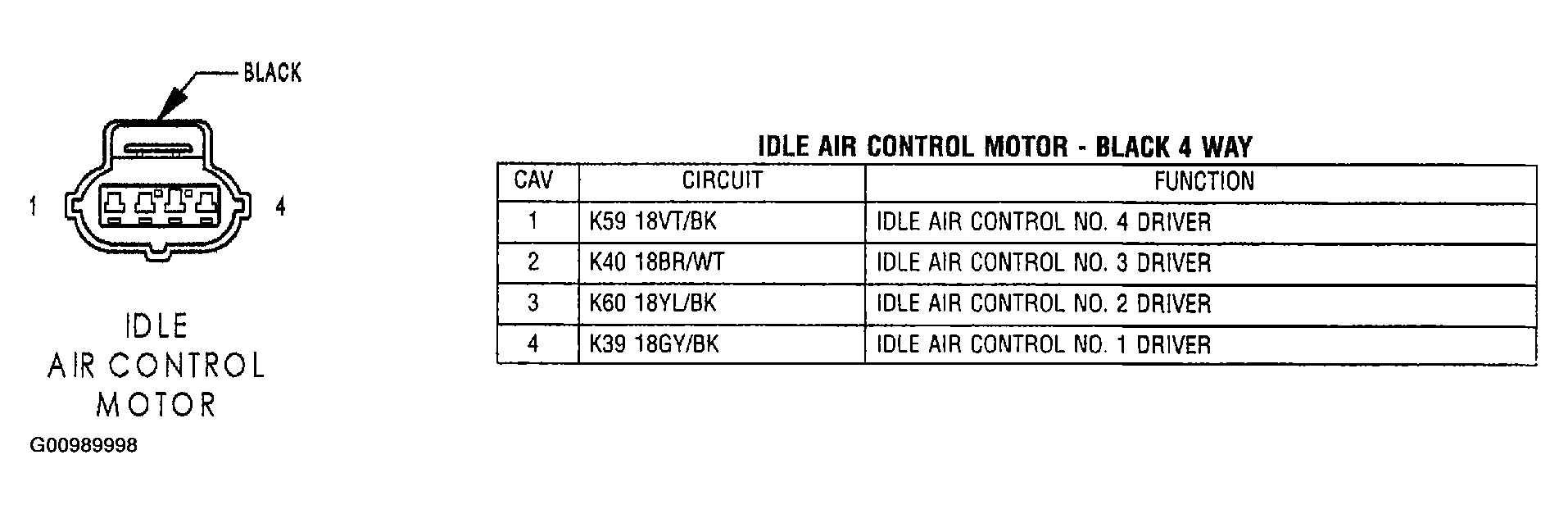

Fig 39: Identifying Idle Air Control Motor - Black 4 Way - Connector Pinouts

G00989998

Courtesy of DAIMLERCHRYSLER CORP.

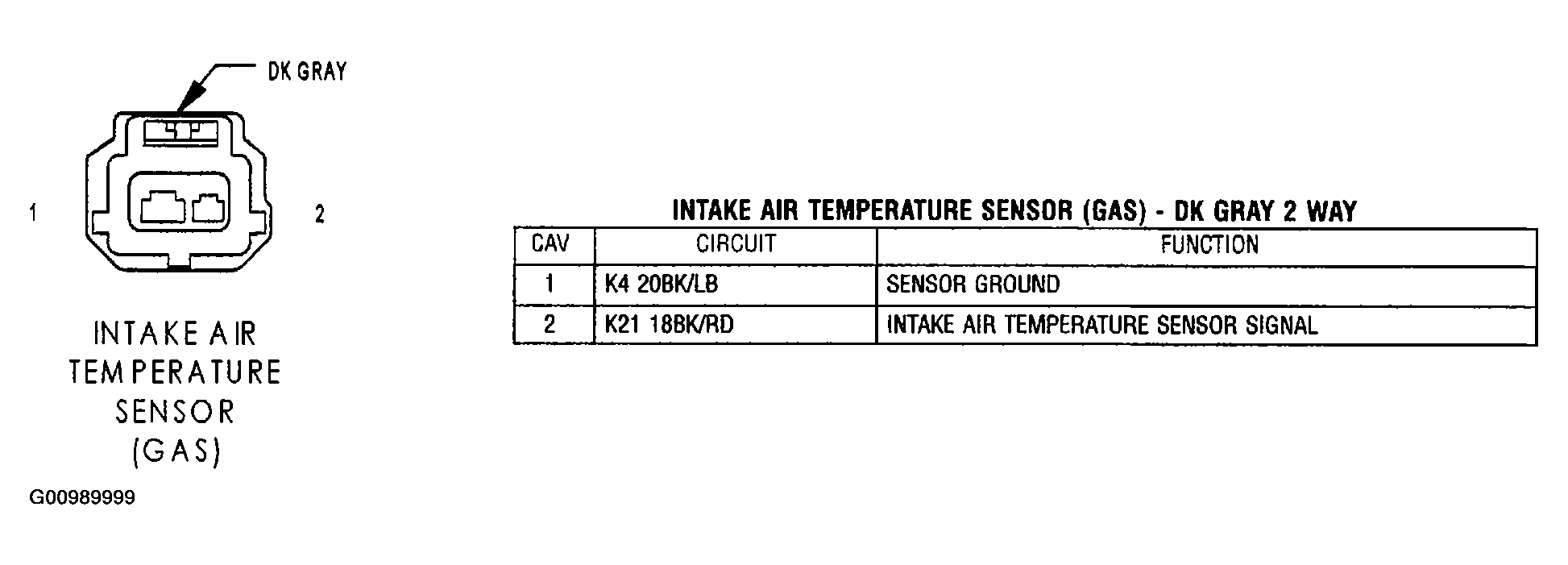

Fig 40: Identifying Intake Air Temperature Sensor (Gas) - DK Gray 2 Way - Connector Pinouts

G00989999

Courtesy of DAIMLERCHRYSLER CORP.

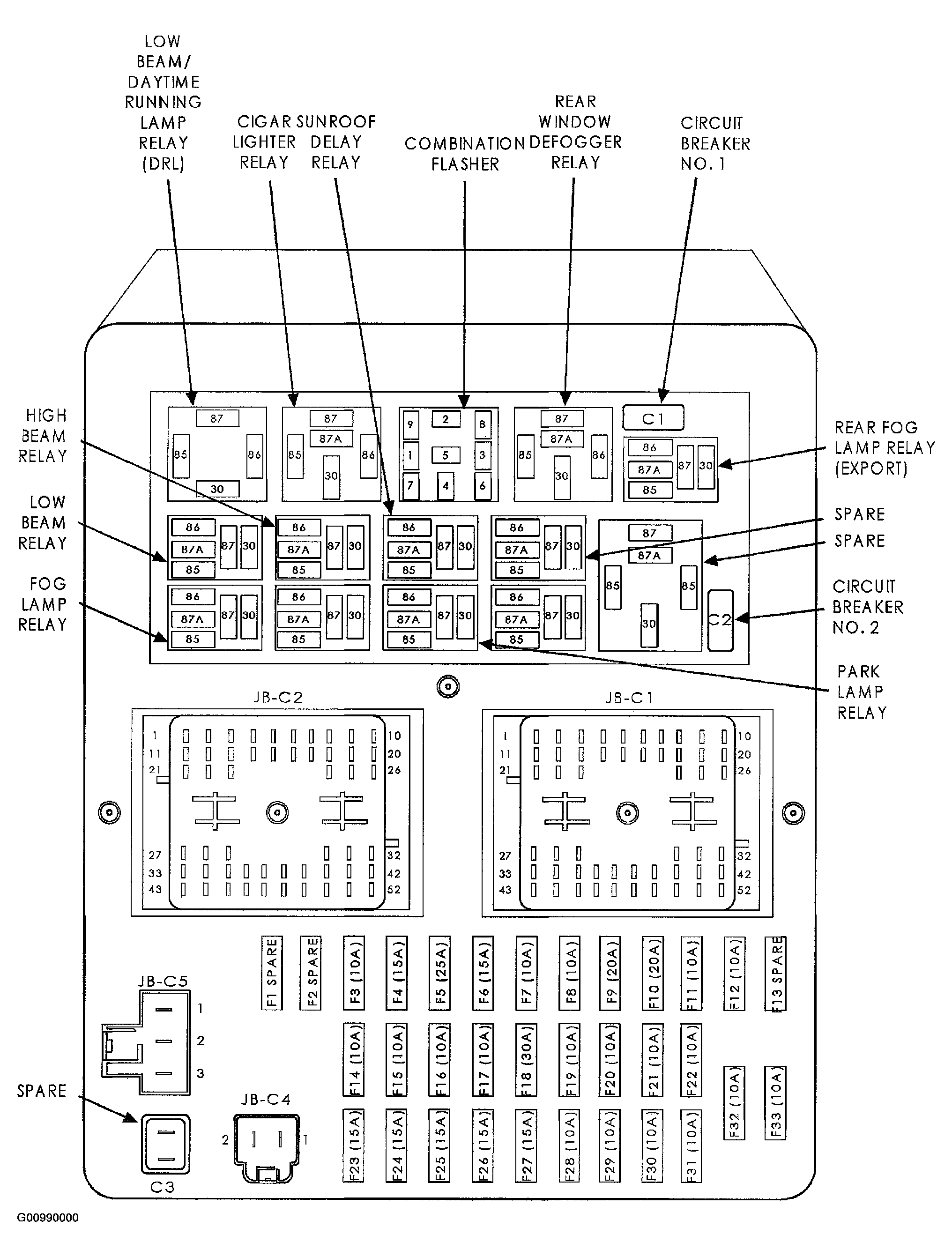

Fig 41: Identifying Junction Block - Front (1 Of 2)

G00990000

Courtesy of DAIMLERCHRYSLER CORP.

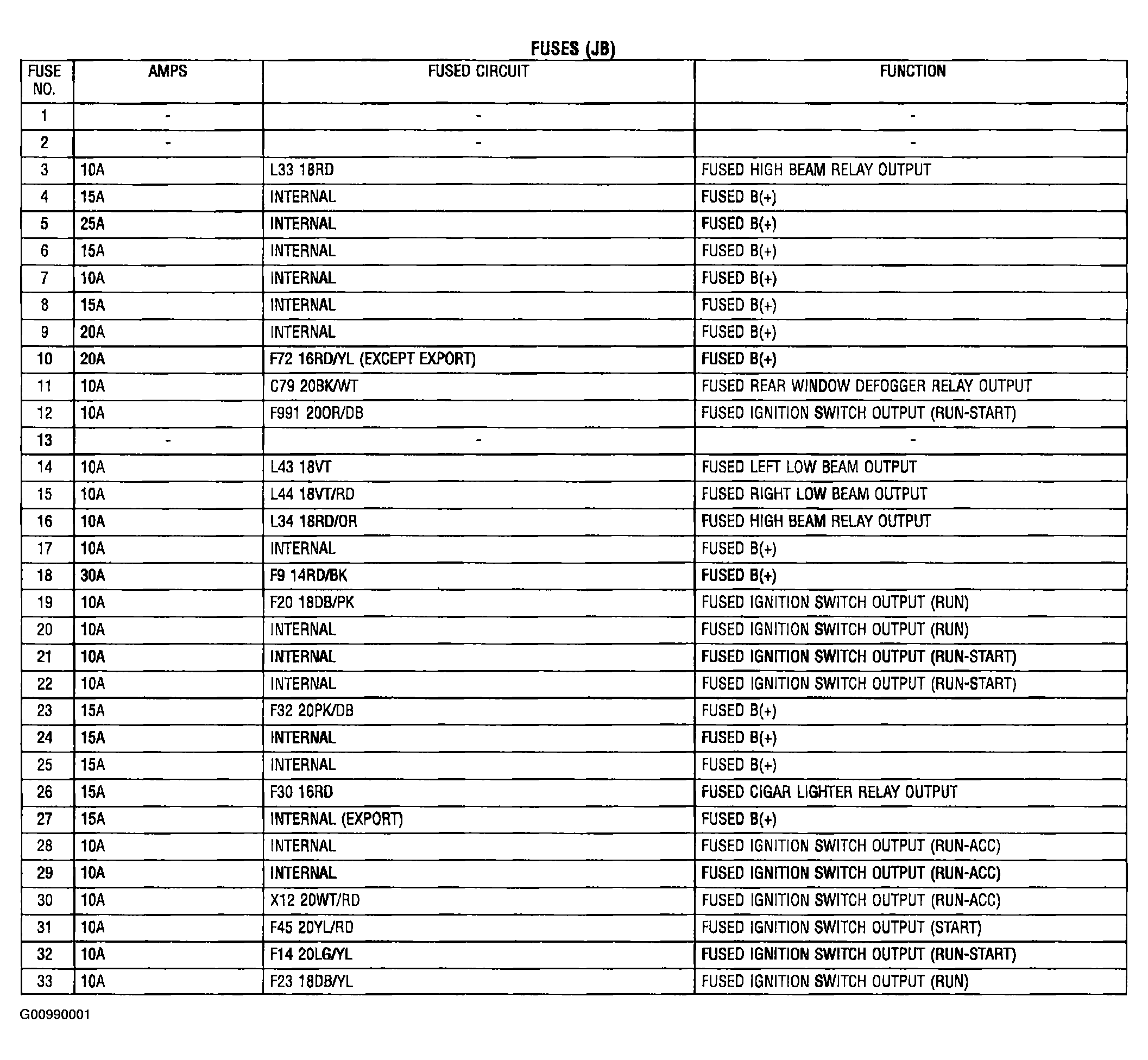

Fig 42: Identifying Junction Block - Front (2 Of 2)

G00990001

Courtesy of DAIMLERCHRYSLER CORP.

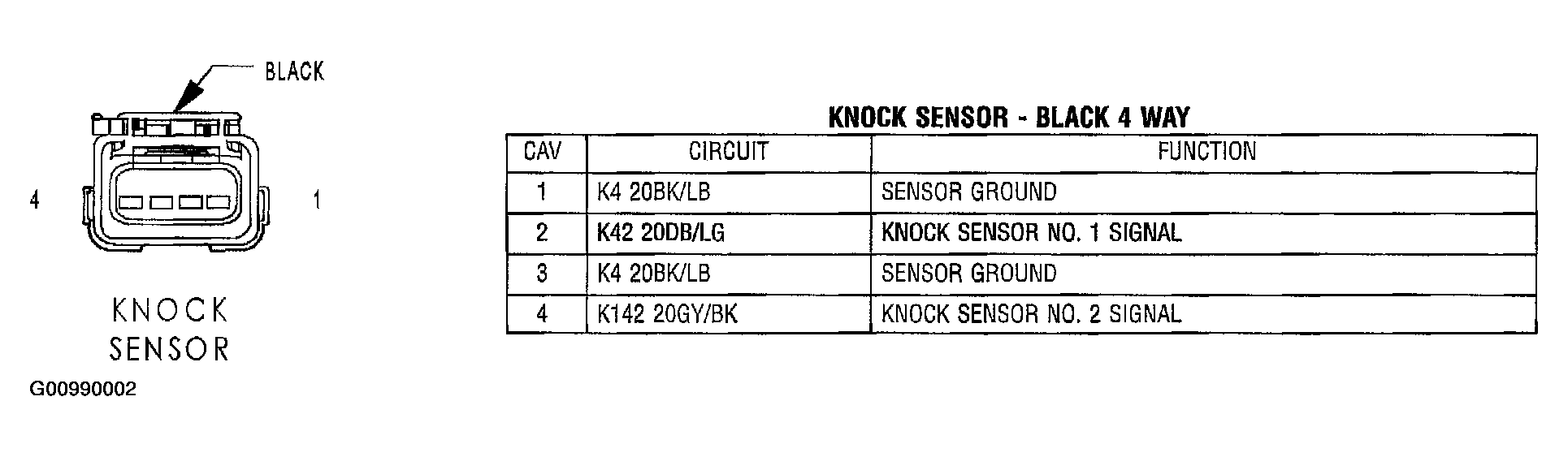

Fig 43: Identifying Knock Sensor - Black 4 Way - Connector Pinouts

G00990002

Courtesy of DAIMLERCHRYSLER CORP.

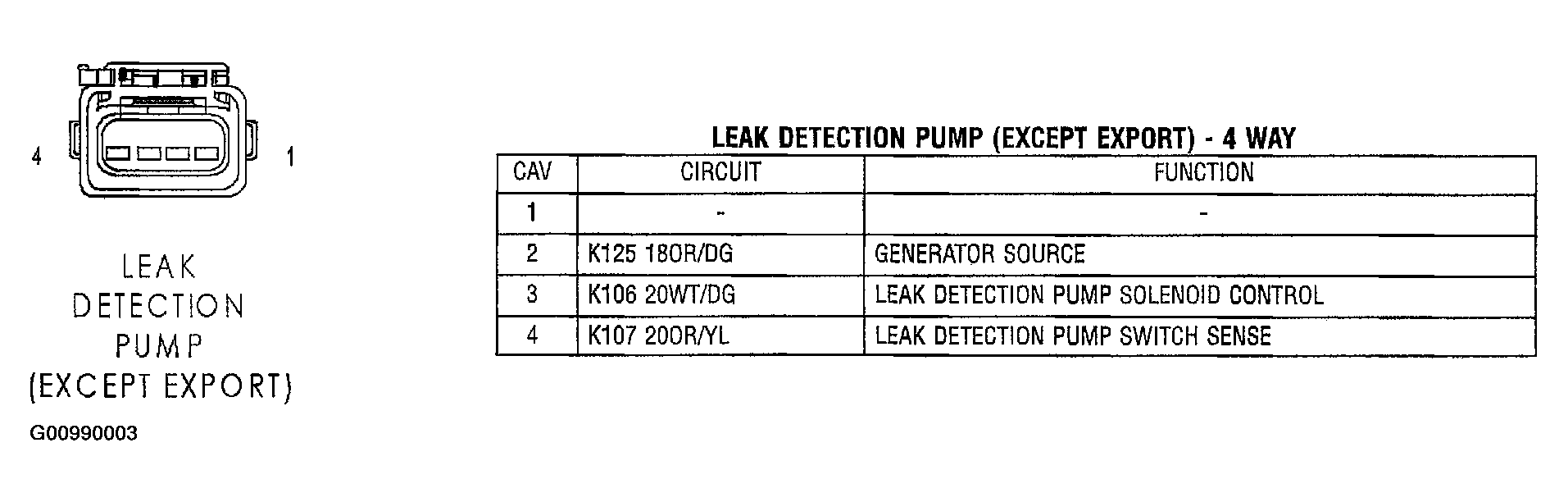

Fig 44: Identifying Leak Detection Pump (Except Export) - 4 Way - Connector Pinouts

G00990003

Courtesy of DAIMLERCHRYSLER CORP.

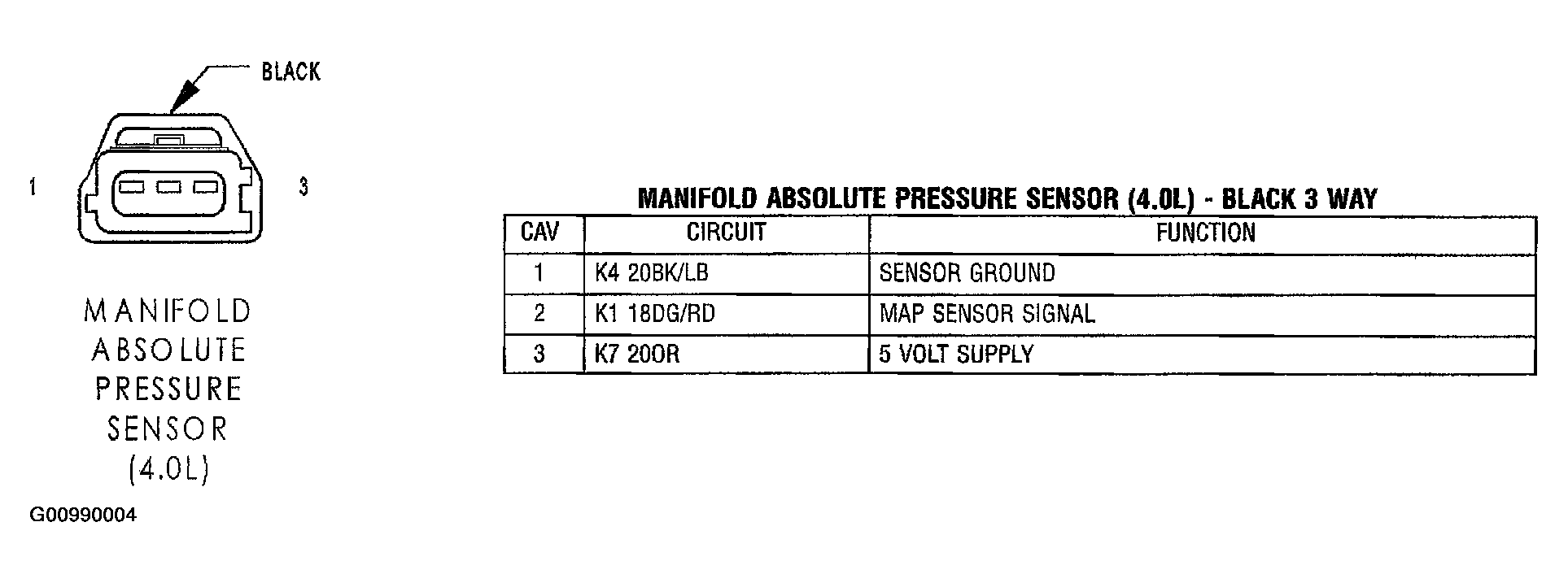

Fig 45: Identifying Manifold Absolute Pressure Sensor (4.OL) - Black 3 Way - Connector Pinouts

G00990004

Courtesy of DAIMLERCHRYSLER CORP.

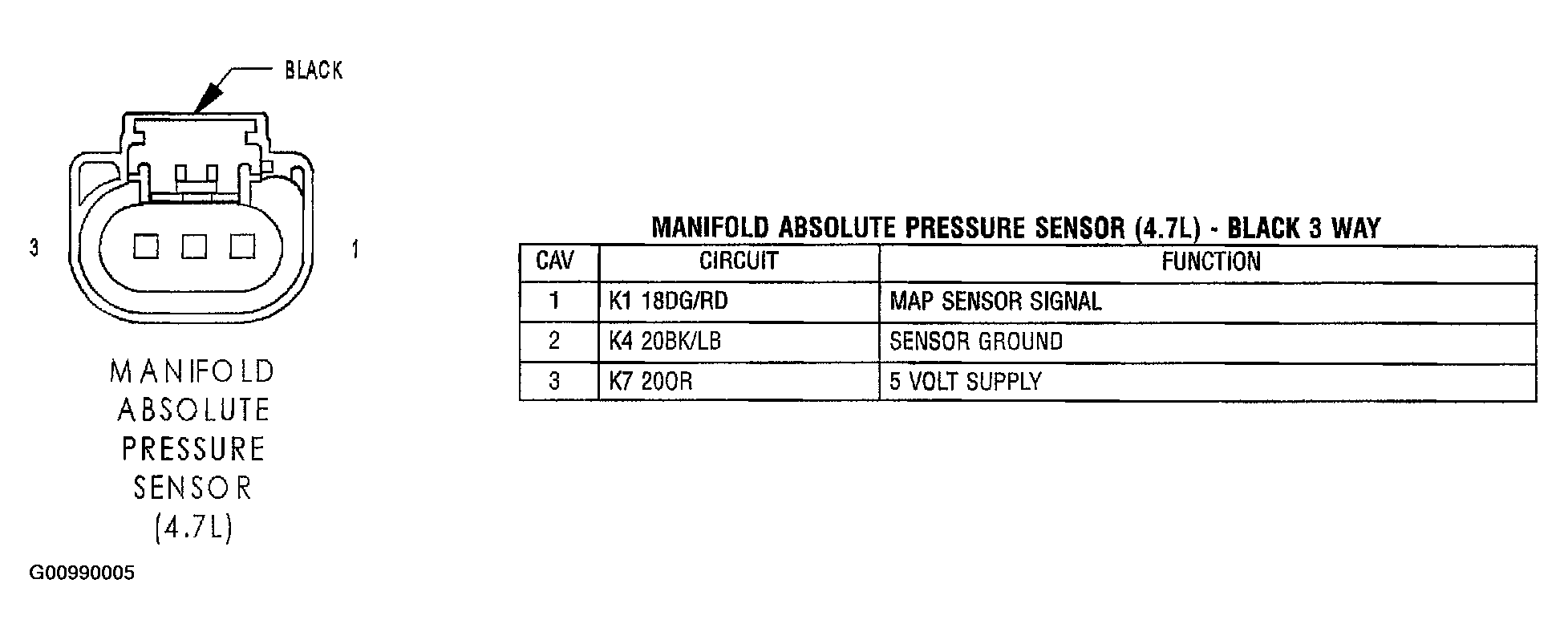

Fig 46: Identifying Manifold Absolute Pressure Sensor (4.7L) - Black 3 Way - Connector Pinouts

G00990005

Courtesy of DAIMLERCHRYSLER CORP.

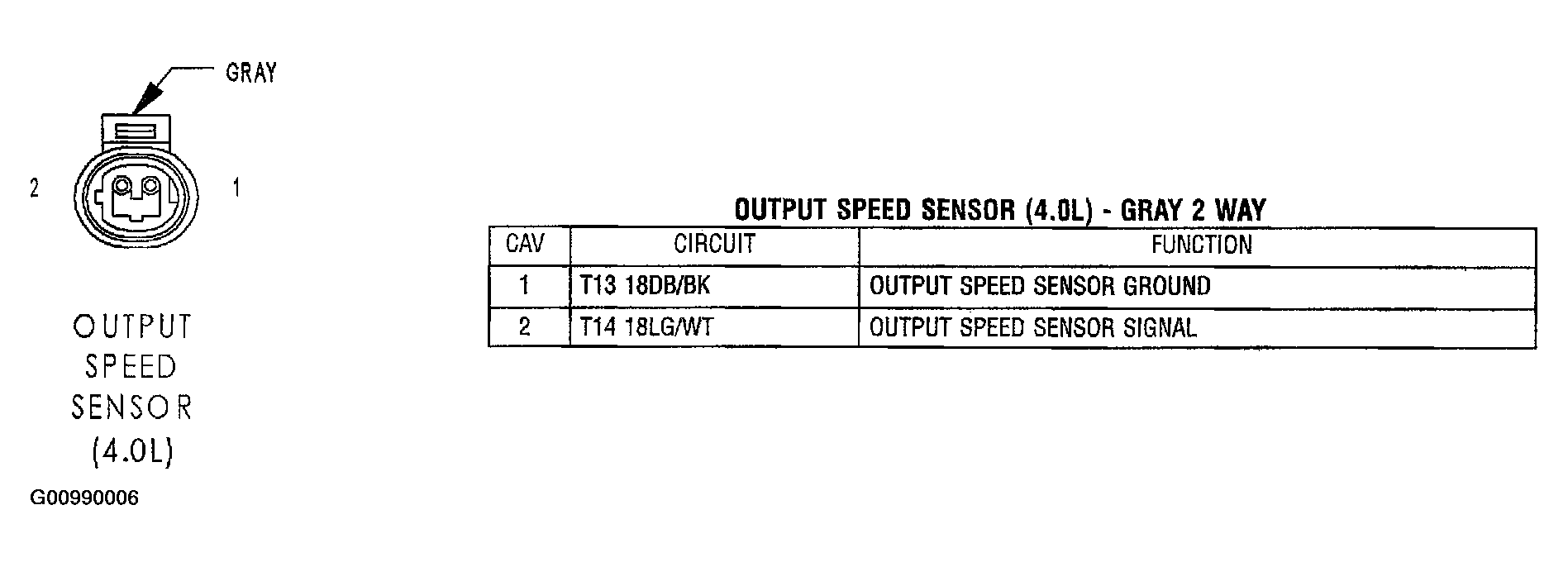

Fig 47: Identifying Output Speed Sensor (4.OL) - Gray 2 Way - Connector Pinouts

G00990006

Courtesy of DAIMLERCHRYSLER CORP.

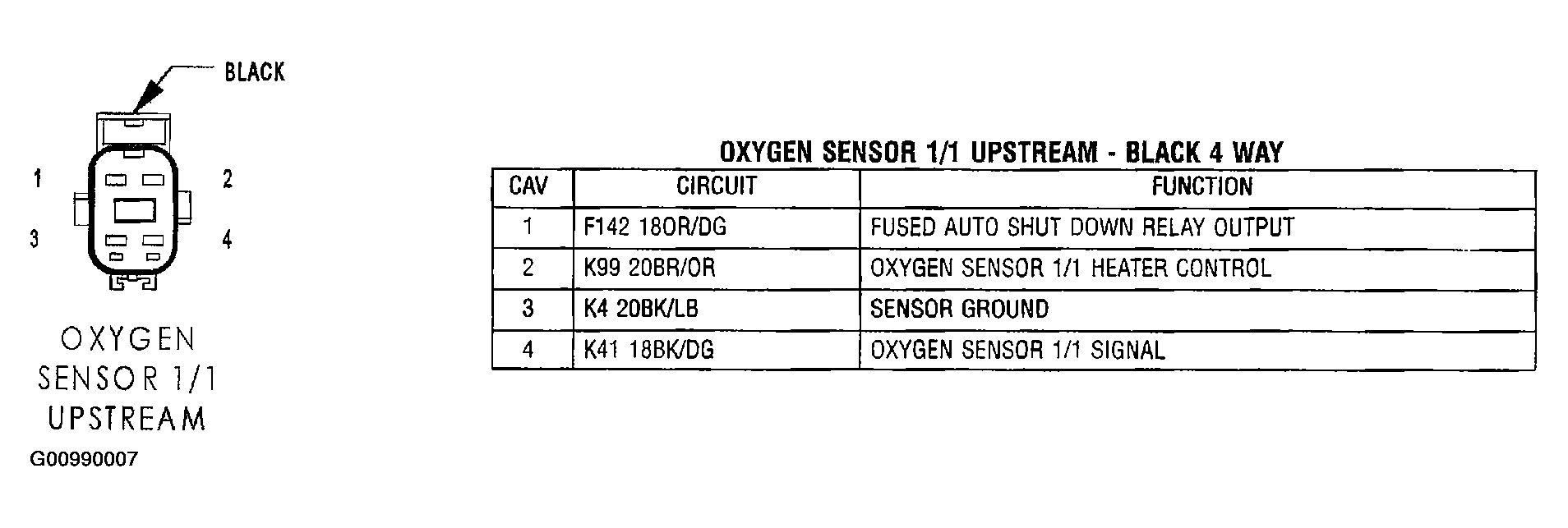

Fig 48: Identifying Oxygen Sensor 1/1 Upstream - Black 4 Way - Connector Pinouts

G00990007

Courtesy of DAIMLERCHRYSLER CORP.

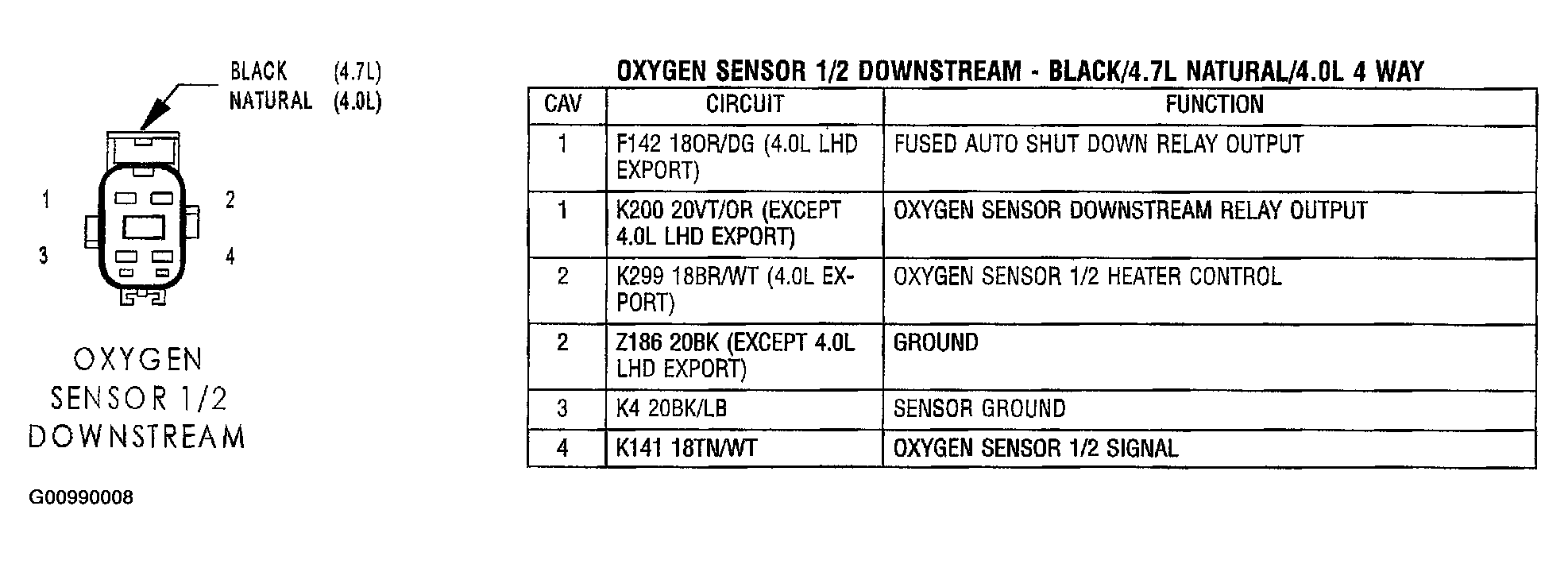

Fig 49: Identifying Oxygen Sensor 1/2 Downstream - Black/4.7L Natural/4.OL 4 Way - Connector Pinouts

G00990008

Courtesy of DAIMLERCHRYSLER CORP.

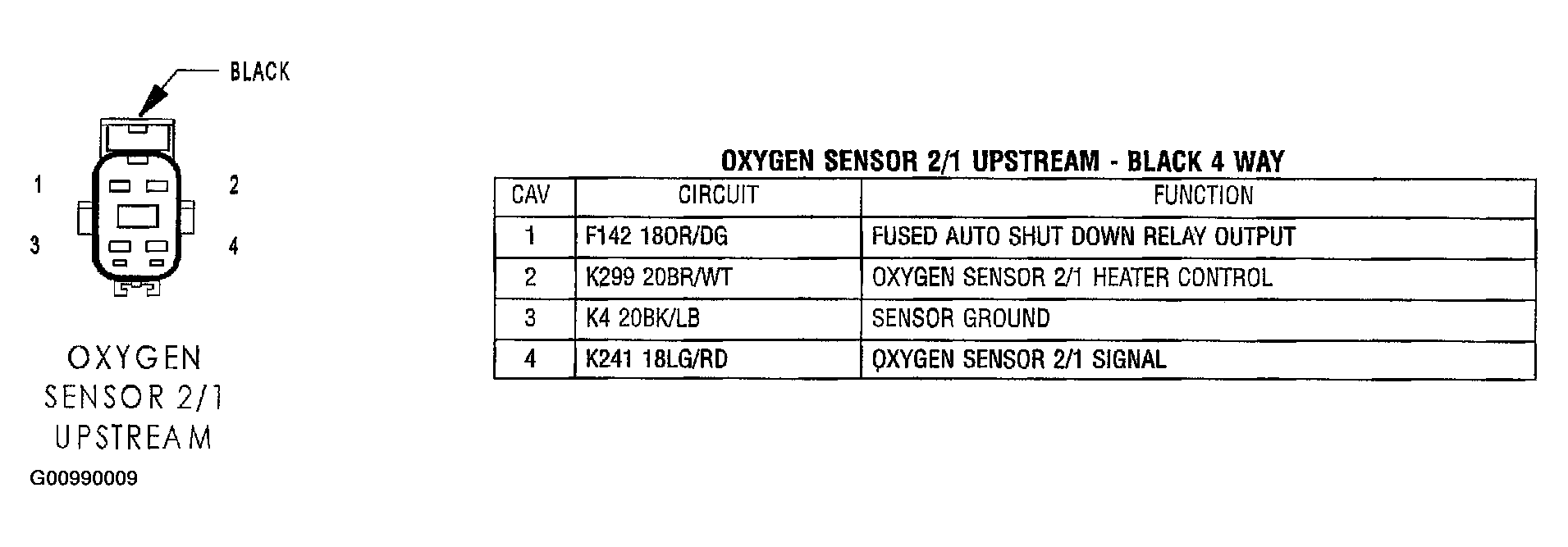

Fig 50: Identifying Oxygen Sensor 2/1 Upstream - Black 4 Way - Connector Pinouts

G00990009

Courtesy of DAIMLERCHRYSLER CORP.

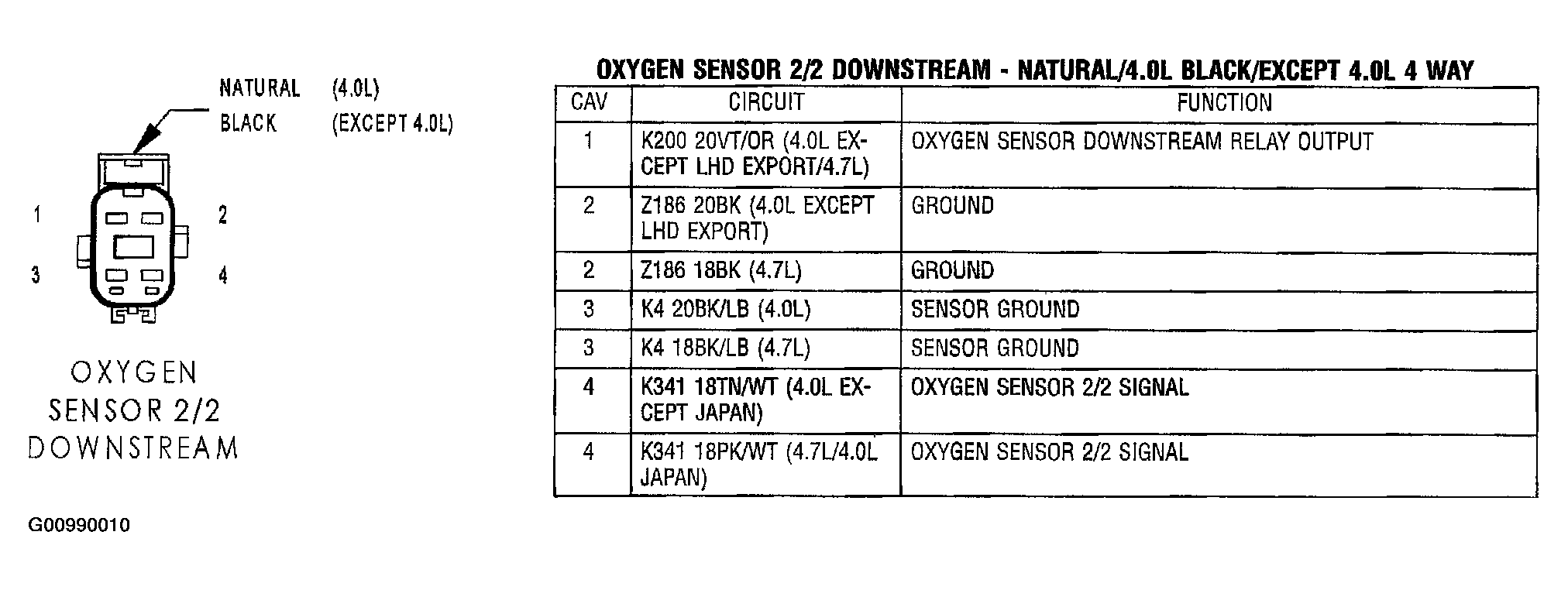

Fig 51: Identifying Oxygen Sensor 2/2 Downstream - Natural/4.OL Black/Except 4.OL 4 Way - Connector Pinouts

G00990010

Courtesy of DAIMLERCHRYSLER CORP.

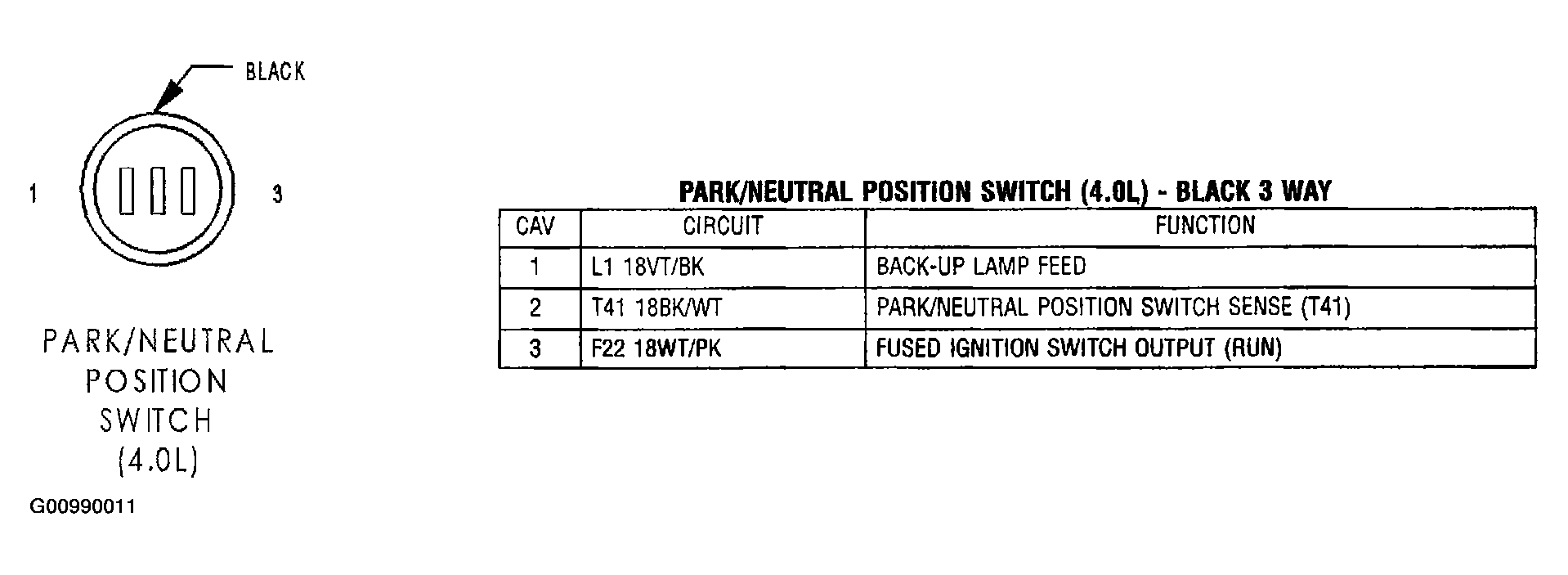

Fig 52: Identifying Park/Neutral Position Switch (4.OL) - Black 3 Way - Connector Pinouts

G00990011

Courtesy of DAIMLERCHRYSLER CORP.

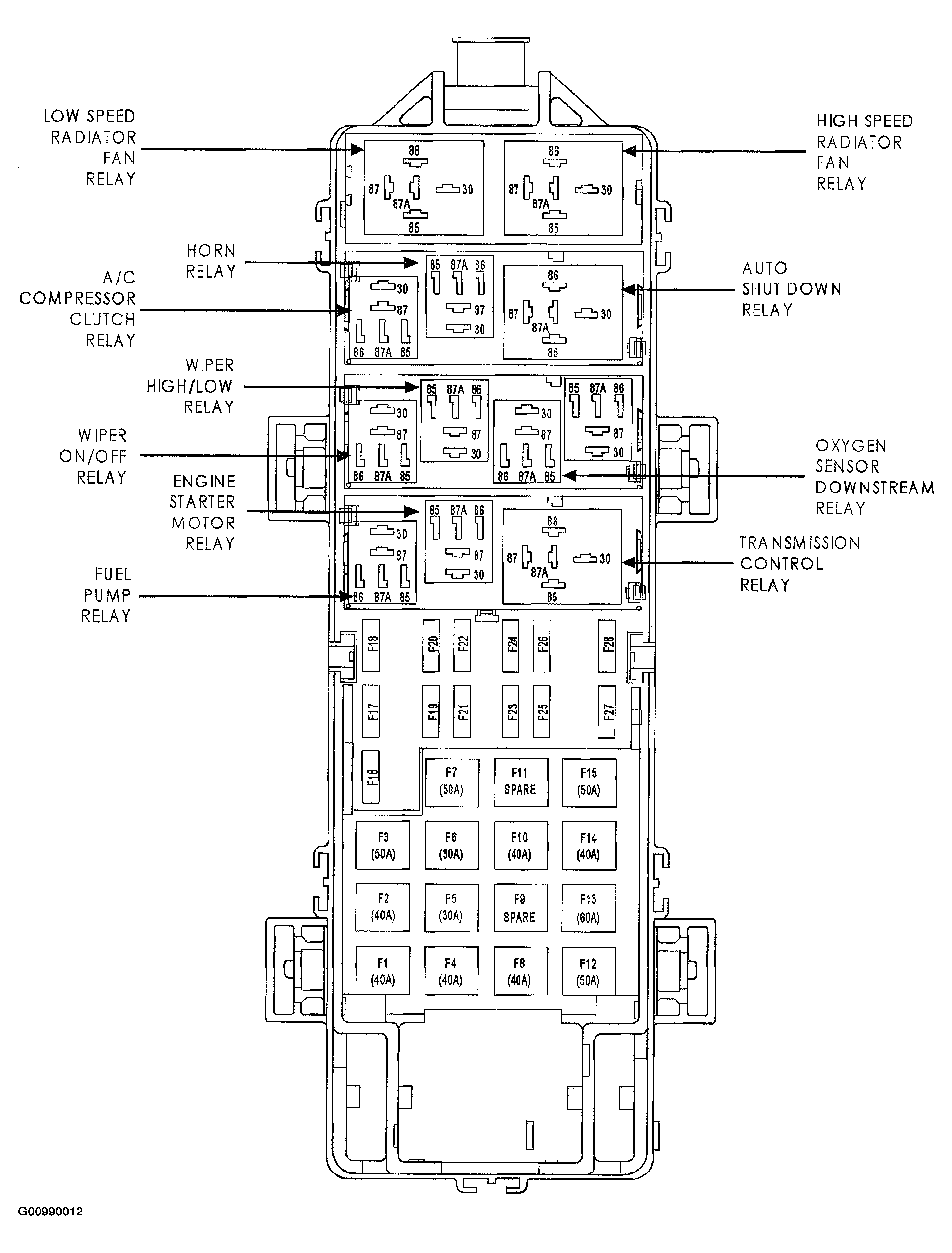

Fig 53: Identifying Power Distribution Center (Gas) - (1 Of 2)

G00990012

Courtesy of DAIMLERCHRYSLER CORP.

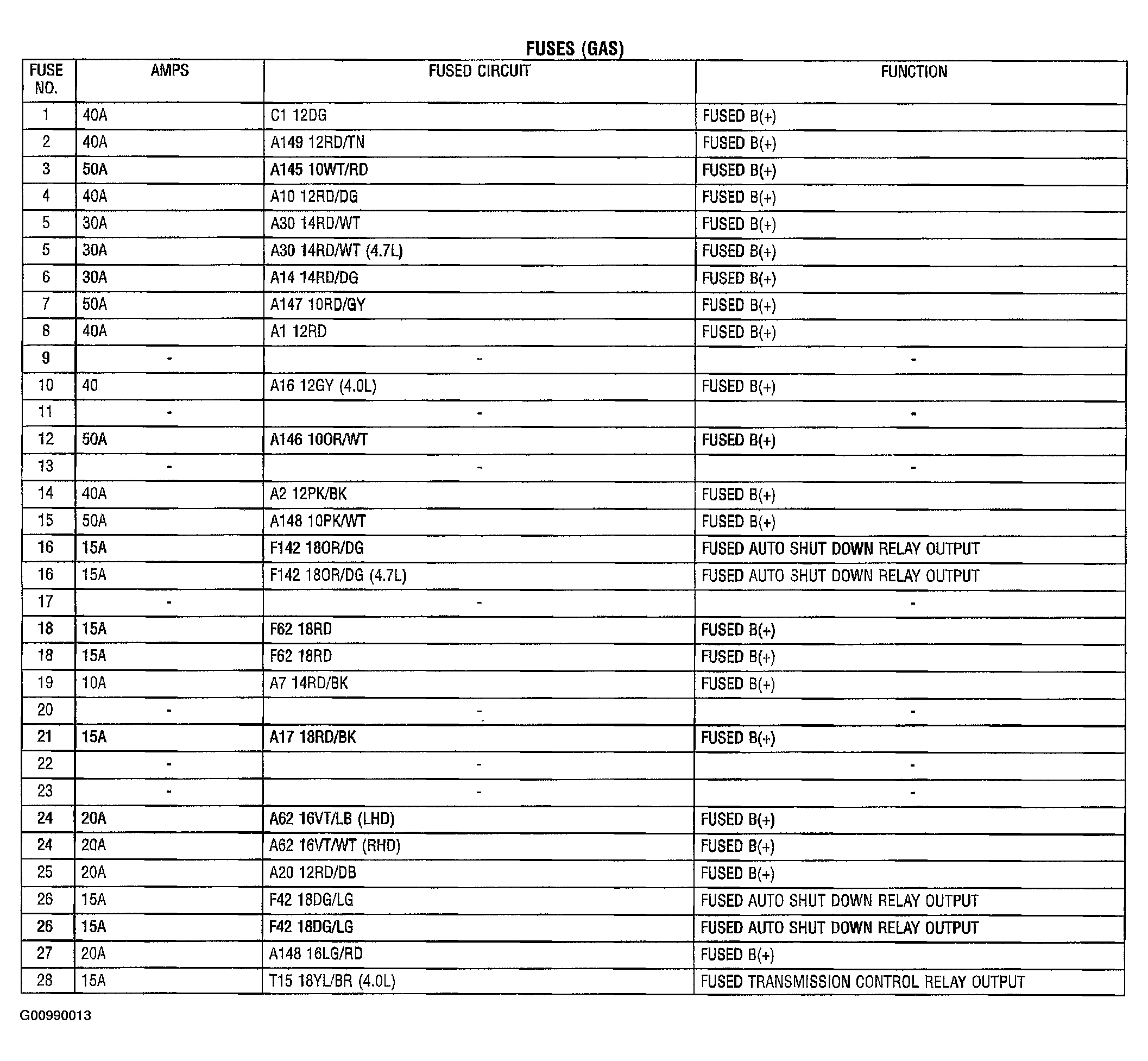

Fig 54: Identifying Power Distribution Center (Gas) - (2 Of 2)

G00990013

Courtesy of DAIMLERCHRYSLER CORP.

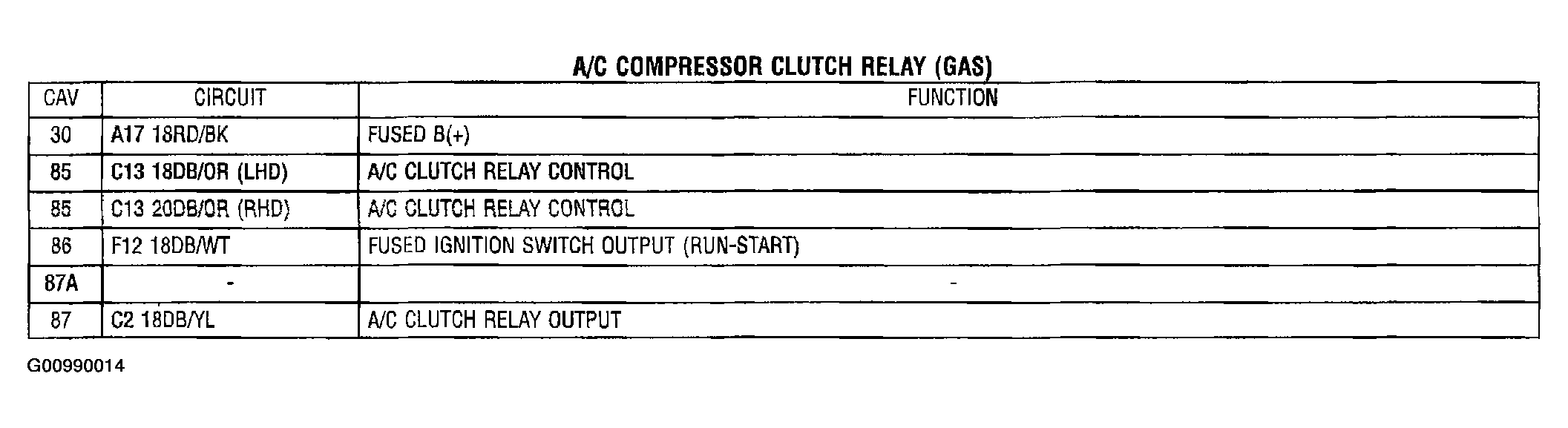

Fig 55: Identifying A/C Compressor Clutch Relay (Gas) - Pinouts

G00990014

Courtesy of DAIMLERCHRYSLER CORP.

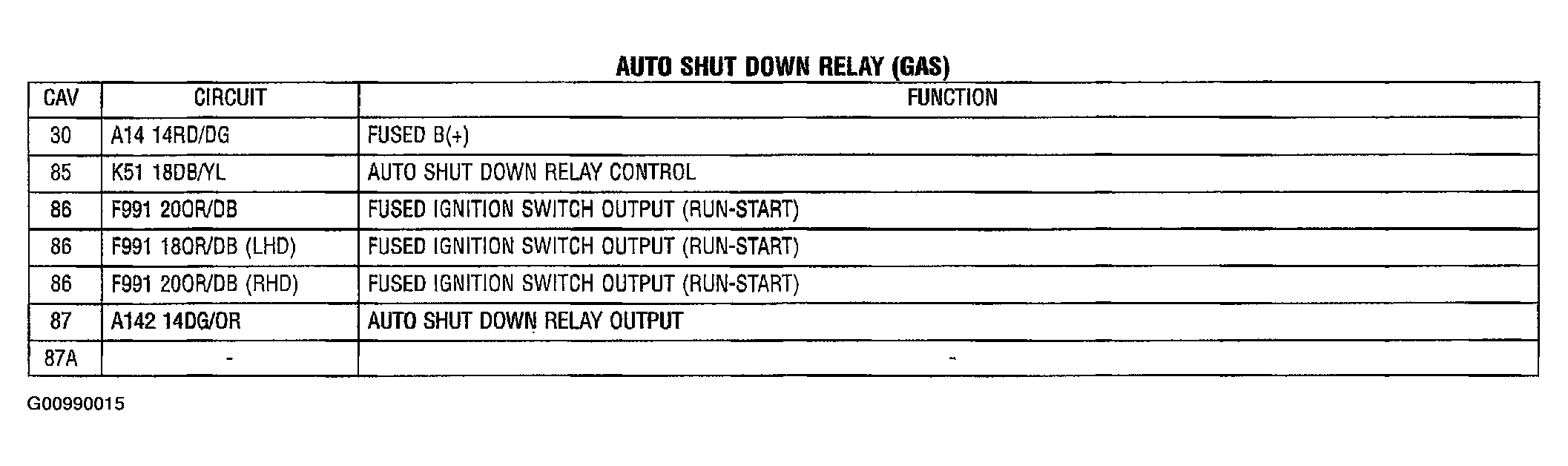

Fig 56: Identifying Auto Shut Down Relay (Gas)- Pinouts

G00990015

Courtesy of DAIMLERCHRYSLER CORP.

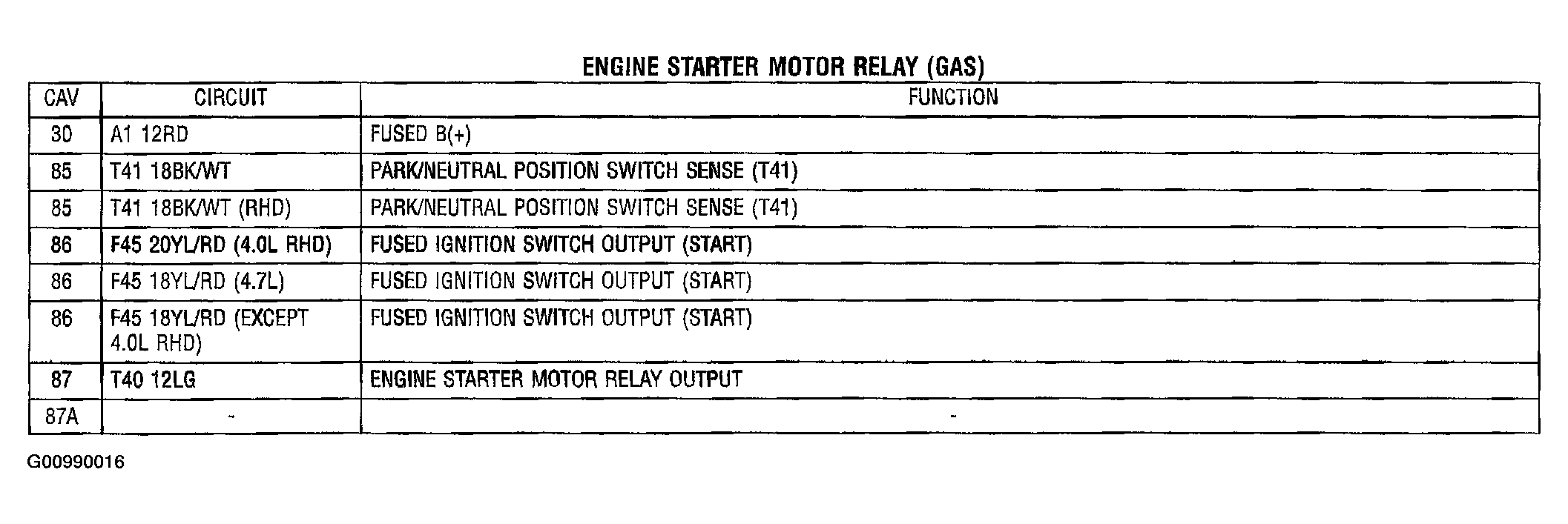

Fig 57: Identifying Engine Starter Motor Relay (Gas) - Connector Pinouts

G00990016

Courtesy of DAIMLERCHRYSLER CORP.

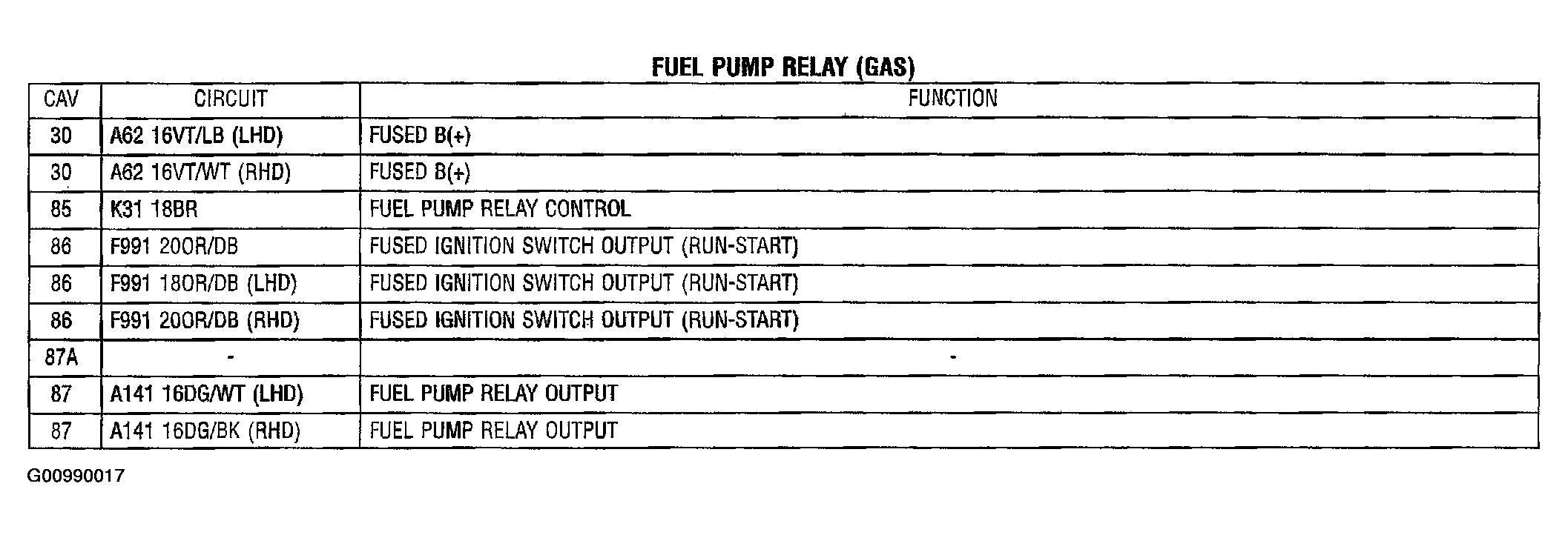

Fig 58: Identifying Fuel Pump Relay (Gas) - Pinouts

G00990017

Courtesy of DAIMLERCHRYSLER CORP.

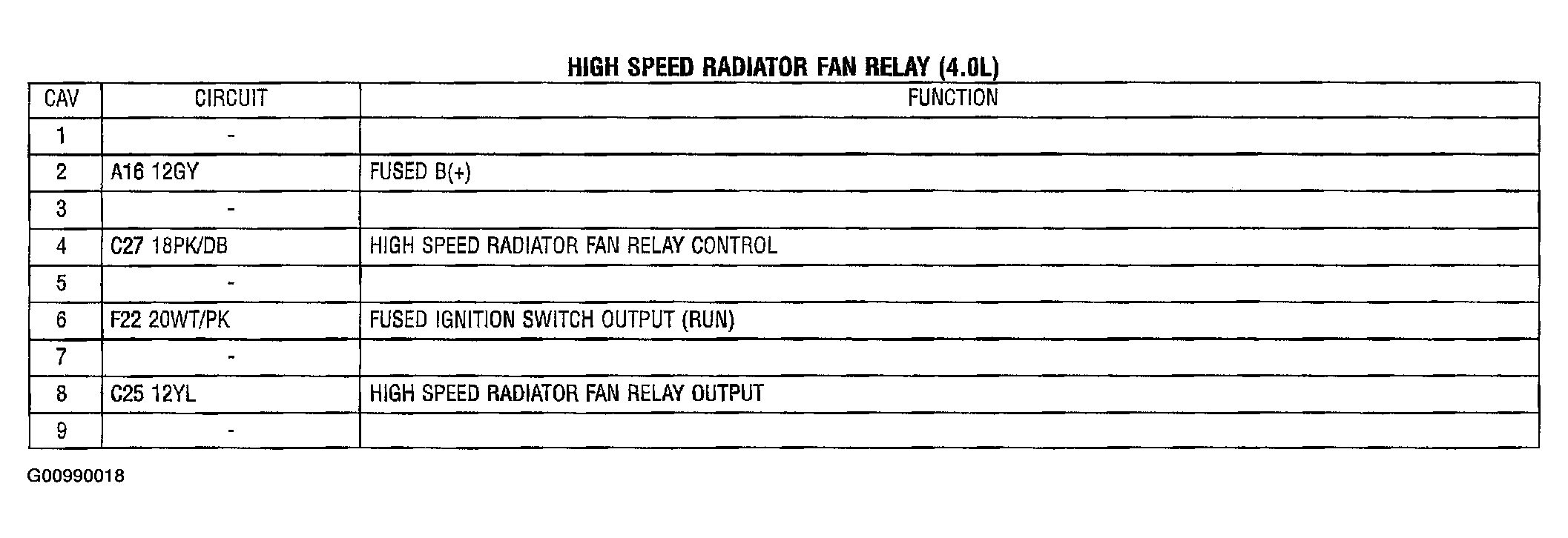

Fig 59: Identifying High Speed Radiator Fan Relay (4.OL) - Pinouts

G00990018

Courtesy of DAIMLERCHRYSLER CORP.

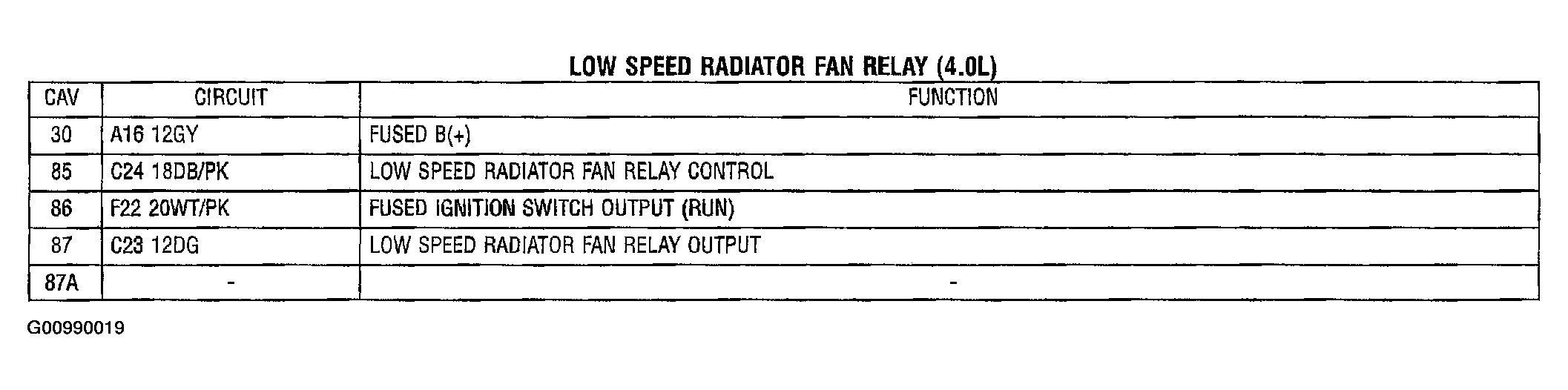

Fig 60: Identifying Low Speed Radiator Fan Relay (4.OL) - Pinouts

G00990019

Courtesy of DAIMLERCHRYSLER CORP.

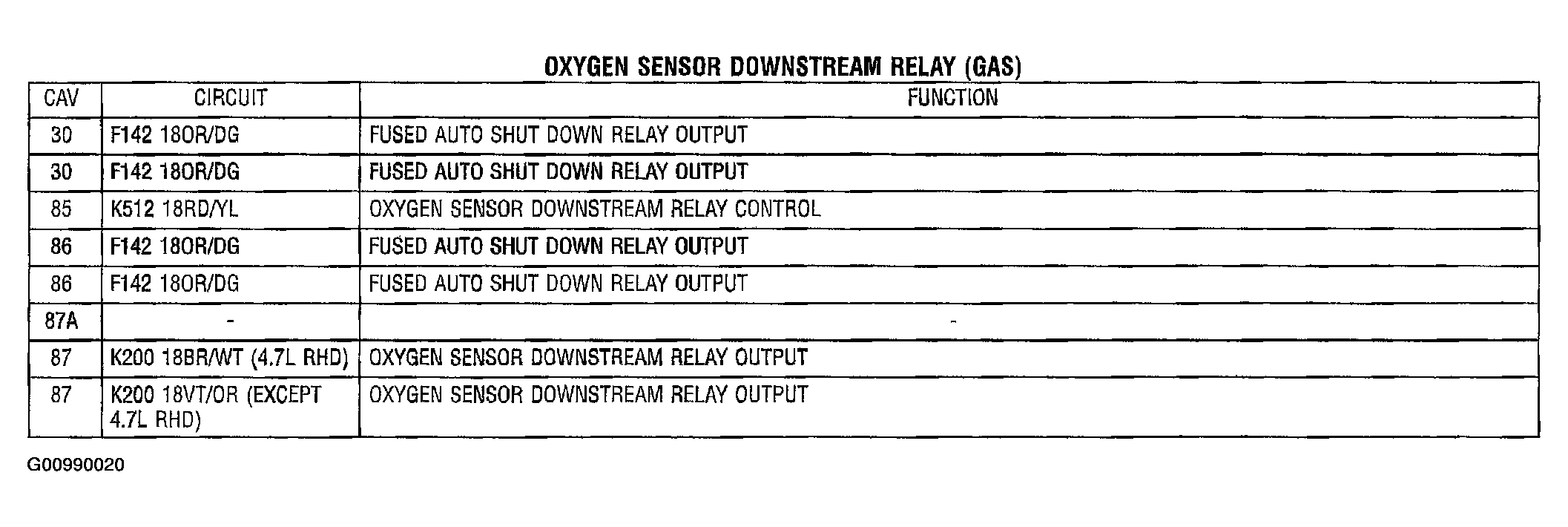

Fig 61: Identifying Oxygen Sensor Downstream Relay (Gas) - Pinouts

G00990020

Courtesy of DAIMLERCHRYSLER CORP.

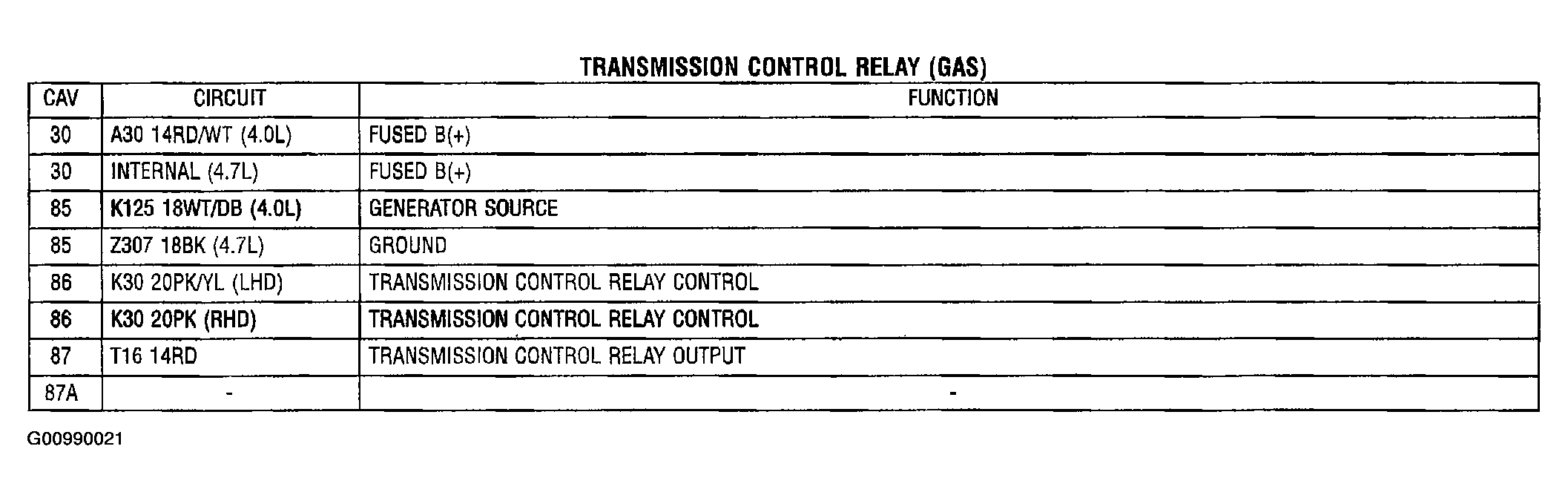

Fig 62: Identifying Transmission Control Relay (Gas) - Pinouts

G00990021

Courtesy of DAIMLERCHRYSLER CORP.

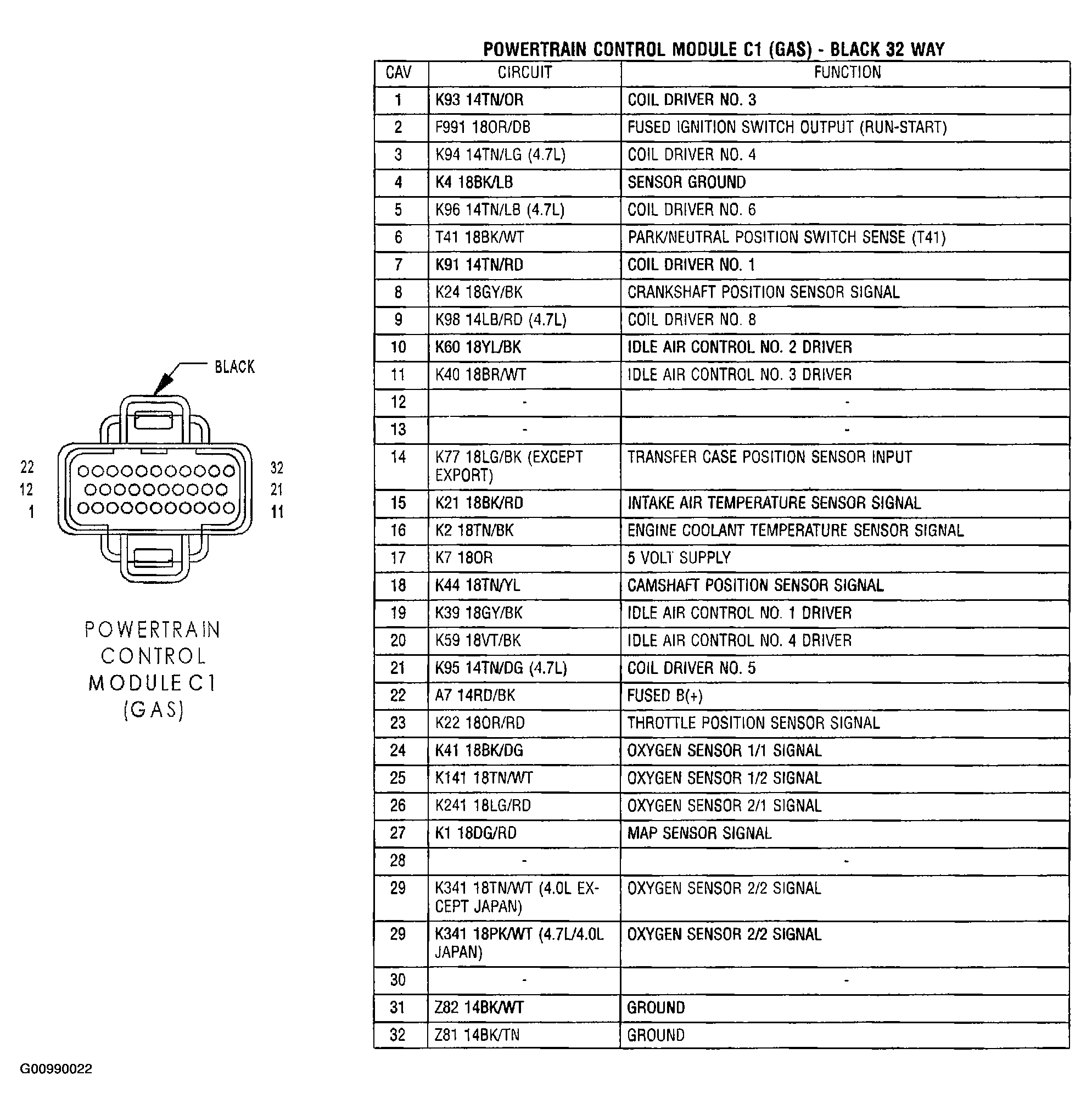

Fig 63: Identifying Powertrain Control Module C1 (Gas) - Black 32 Way - Connector Pinouts

G00990022

Courtesy of DAIMLERCHRYSLER CORP.

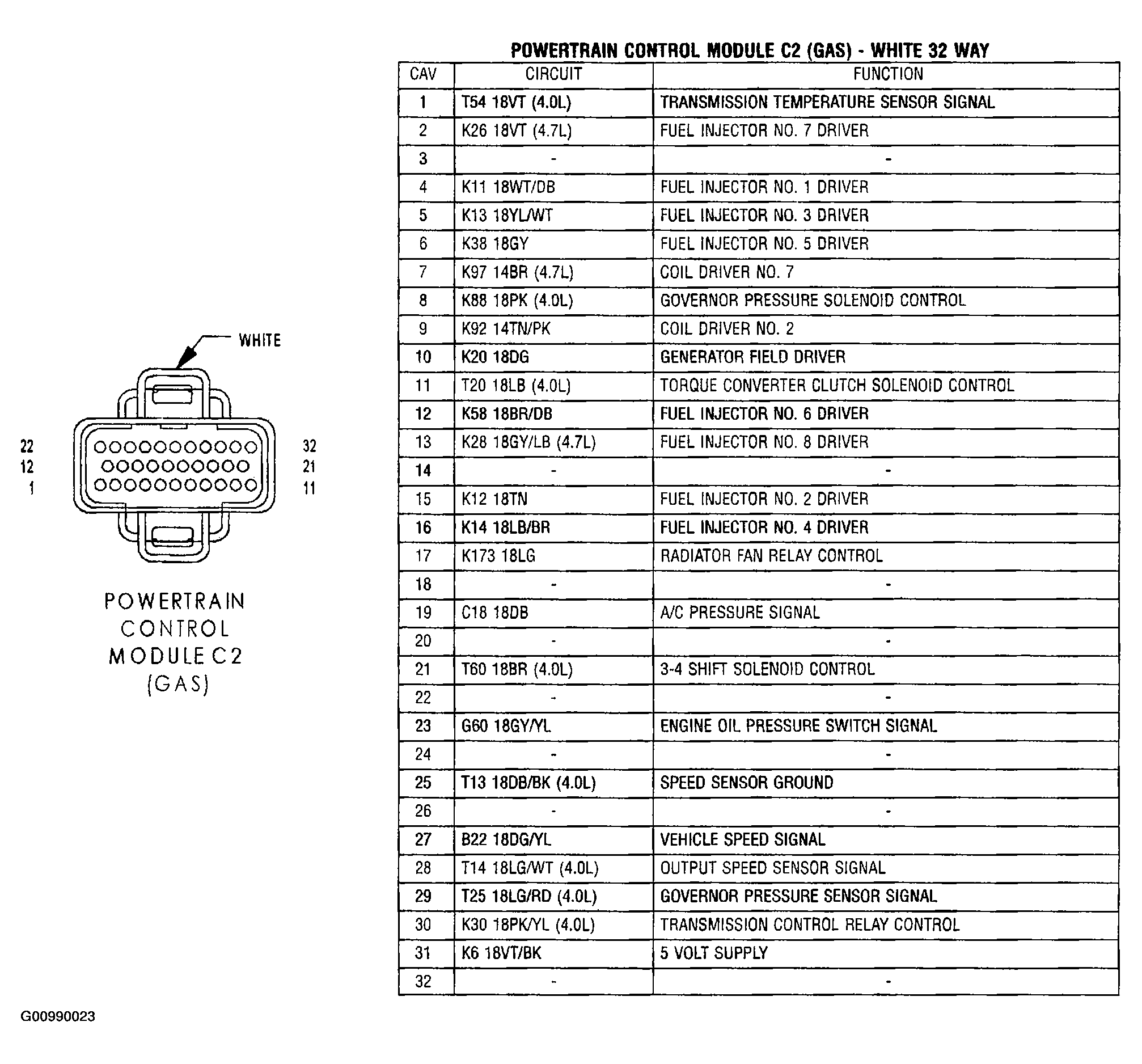

Fig 64: Identifying Powertrain Control Module C2 (Gas) - White 32 Way - Connector Pinouts

G00990023

Courtesy of DAIMLERCHRYSLER CORP.

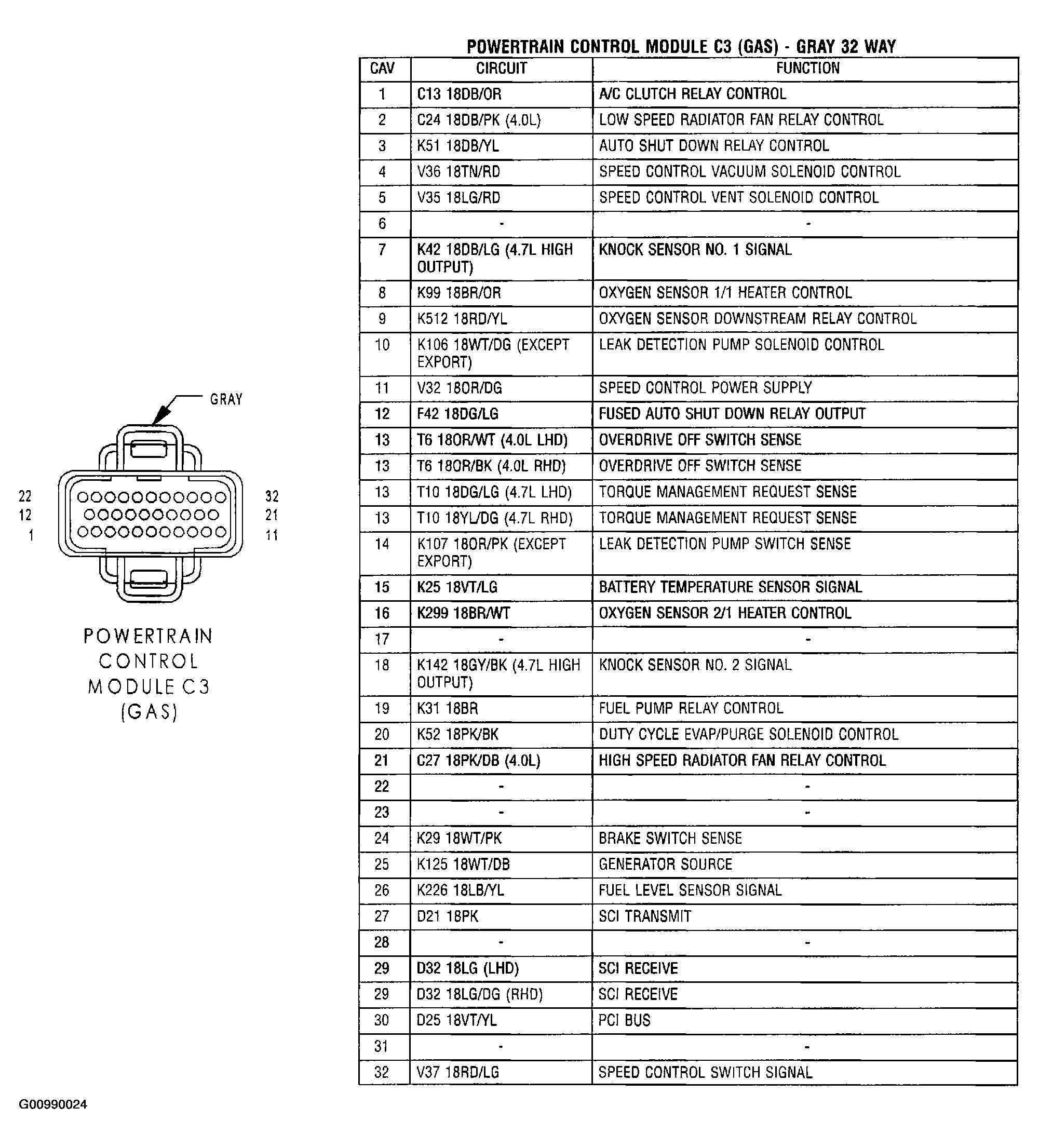

Fig 65: Identifying Powertrain Control Module C3 (Gas) - Gray 32 Way - Connector Pinouts

G00990024

Courtesy of DAIMLERCHRYSLER CORP.

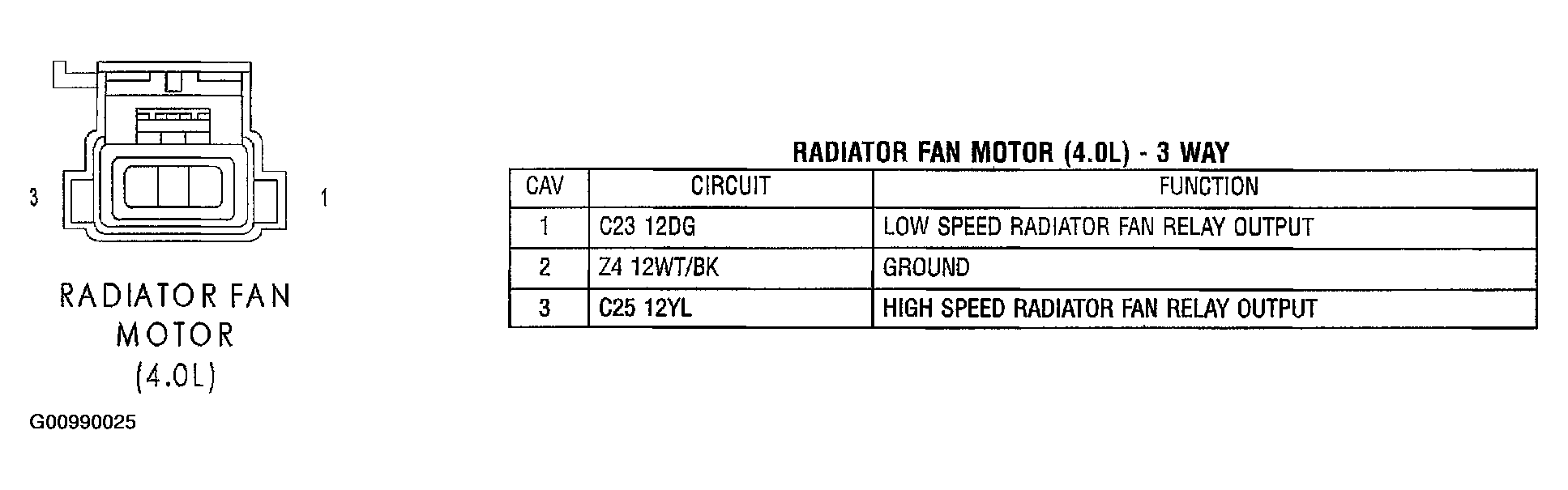

Fig 66: Identifying Radiator Fan Motor (4.OL) - 3 Way - Connector Pinouts

G00990025

Courtesy of DAIMLERCHRYSLER CORP.

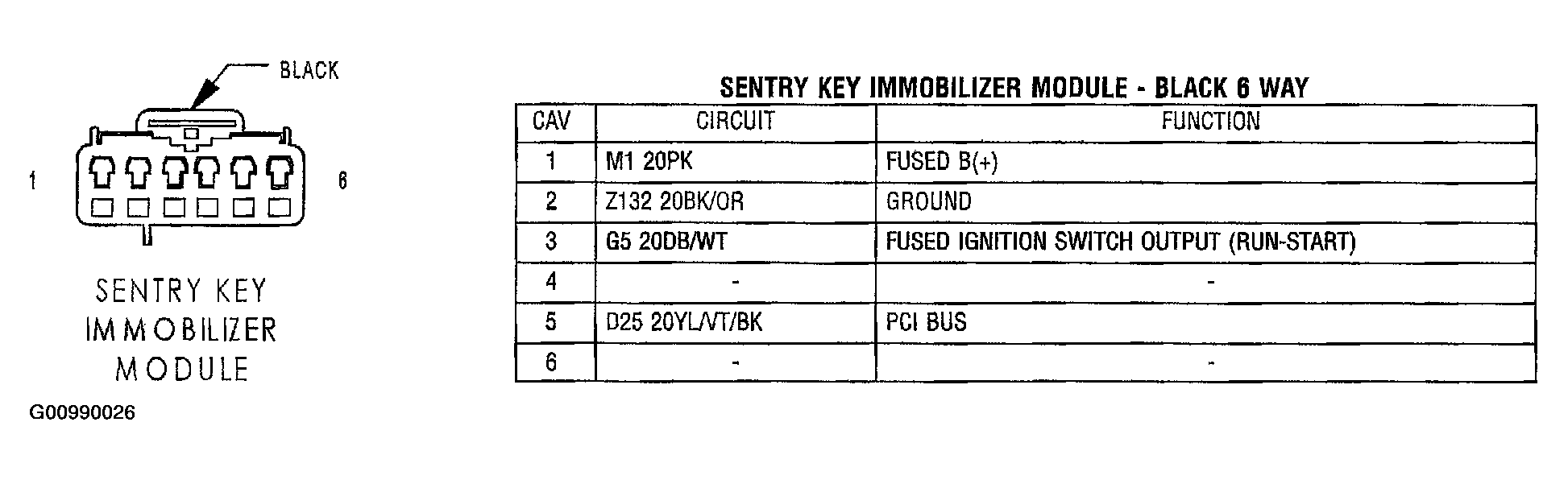

Fig 67: Identifying Sentry Key Immobilizer Module - Black 6 Way - Connector Pinouts

G00990026

Courtesy of DAIMLERCHRYSLER CORP.

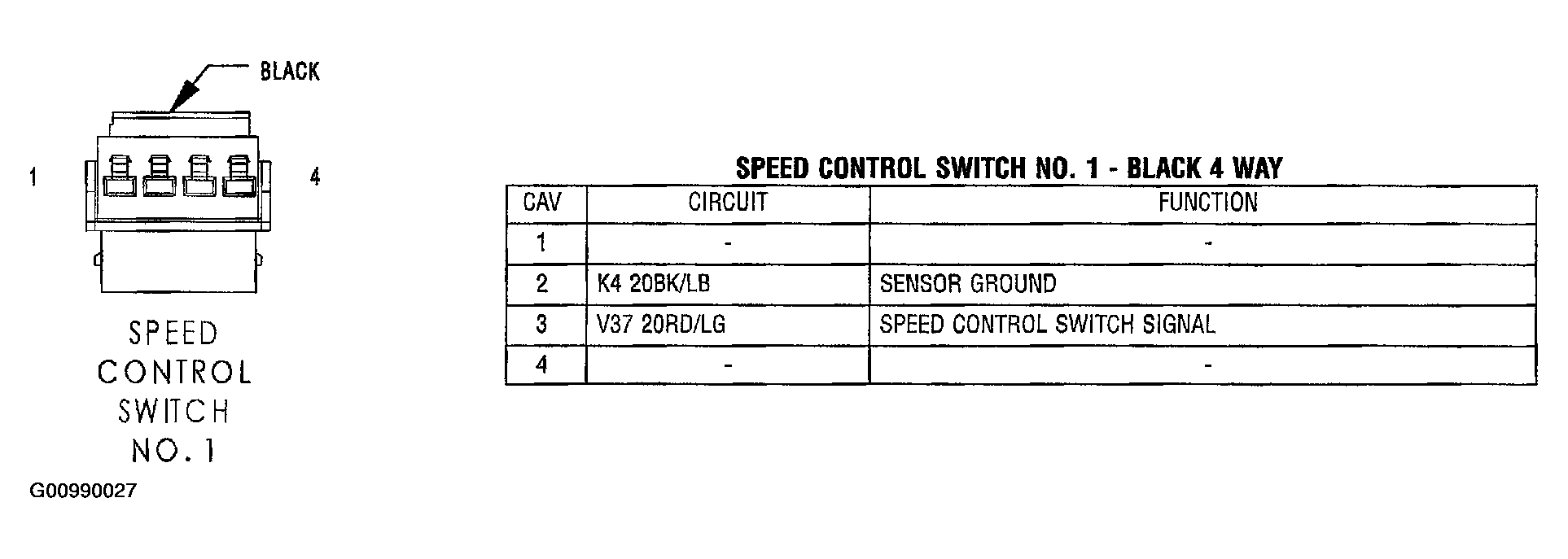

Fig 68: Identifying Speed Control Switch No. 1 - Black 4 Way - Connector Pinouts

G00990027

Courtesy of DAIMLERCHRYSLER CORP.

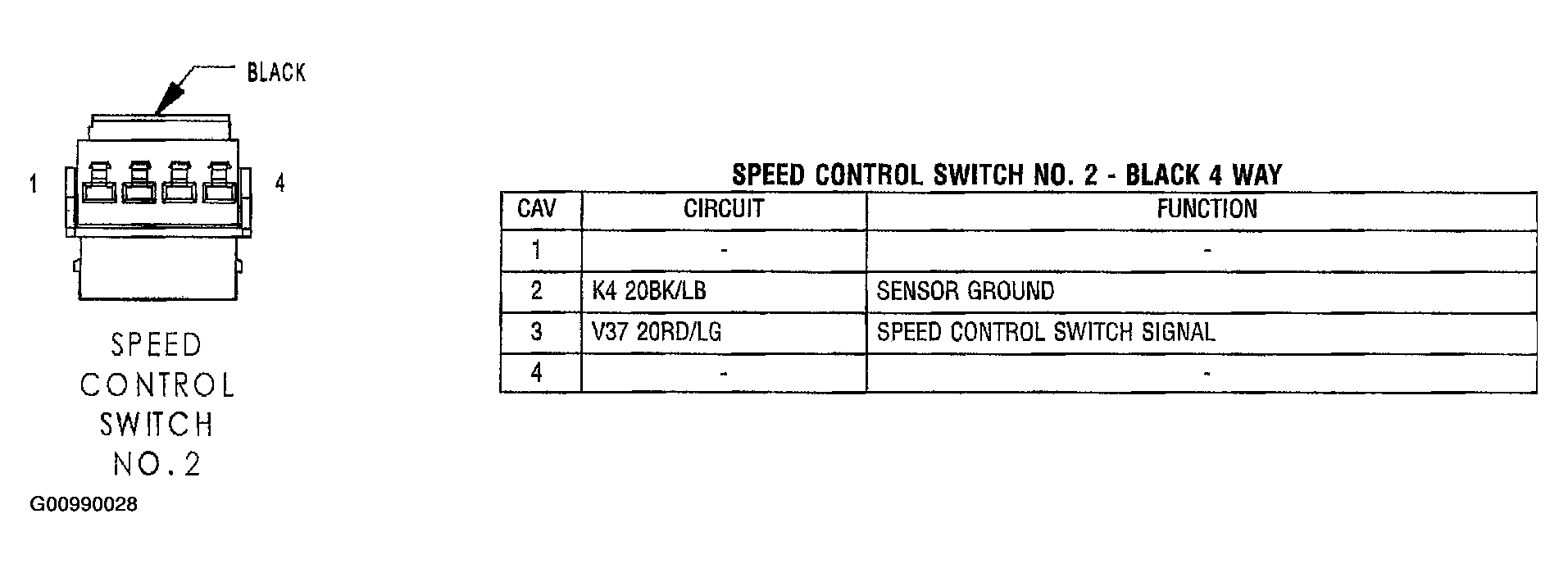

Fig 69: Identifying Speed Control Switch No. 2 - Black 4 Way - Connector Pinouts

G00990028

Courtesy of DAIMLERCHRYSLER CORP.

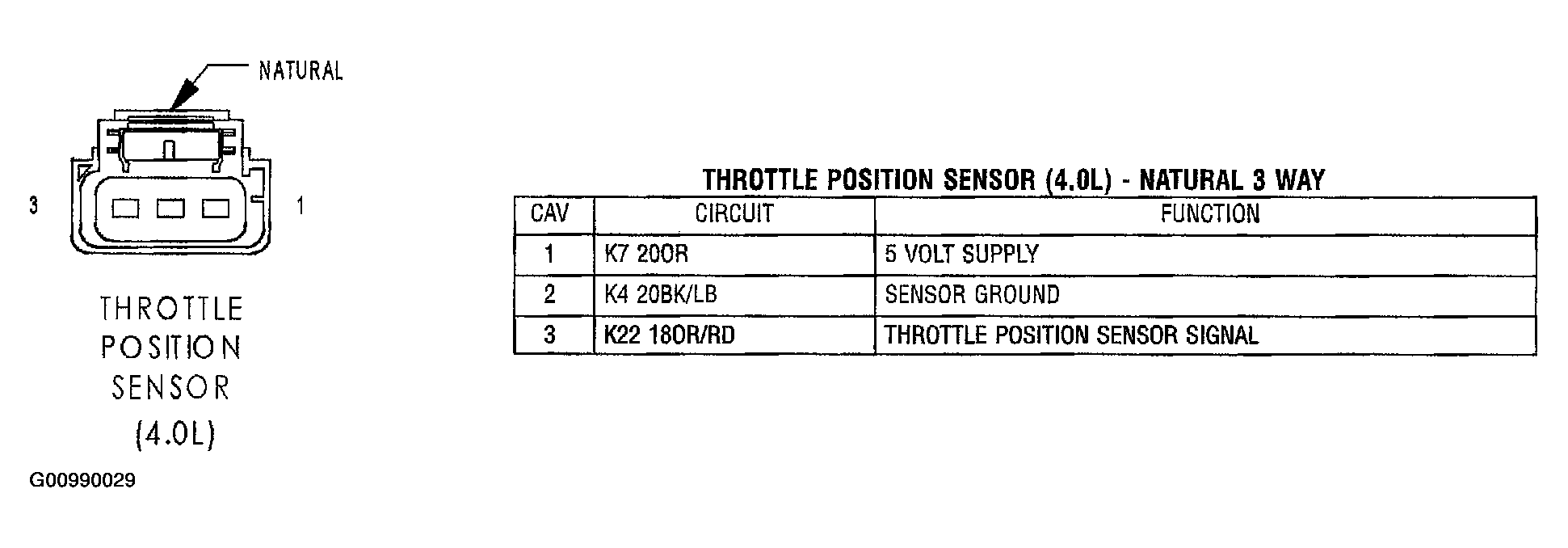

Fig 70: Identifying Throttle Position Sensor (4.0L) - Natural 3 Way - Connector Pinouts

G00990029

Courtesy of DAIMLERCHRYSLER CORP.

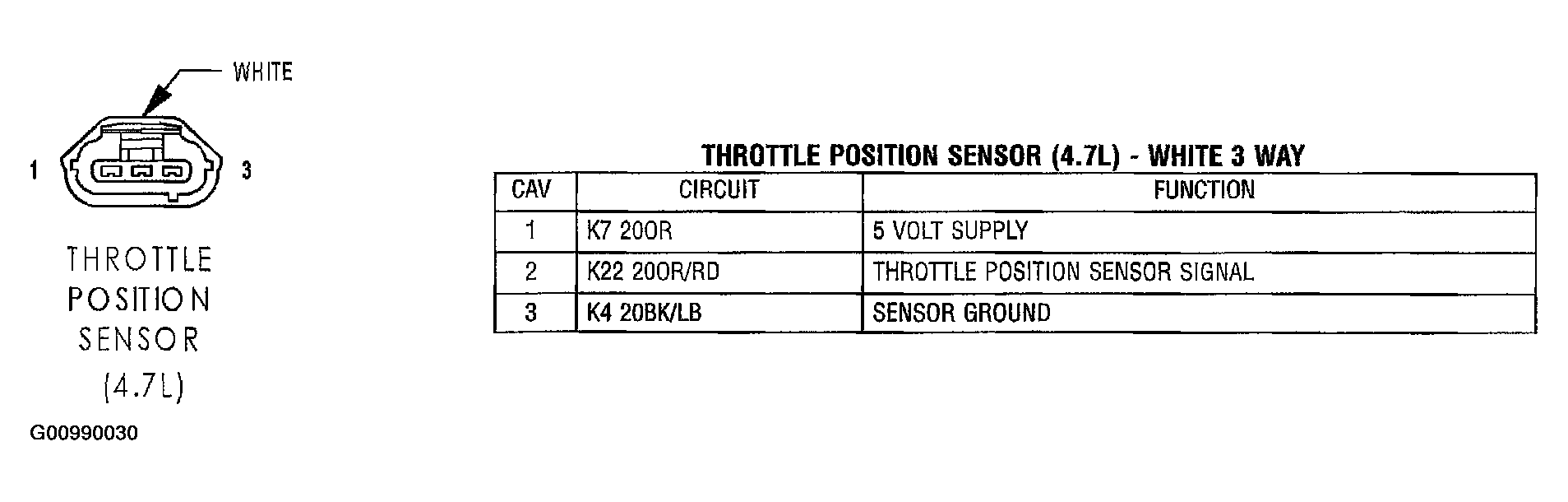

Fig 71: Identifying Throttle Position Sensor (4.7L) - White 3 Way - Connector Pinouts

G00990030

Courtesy of DAIMLERCHRYSLER CORP.

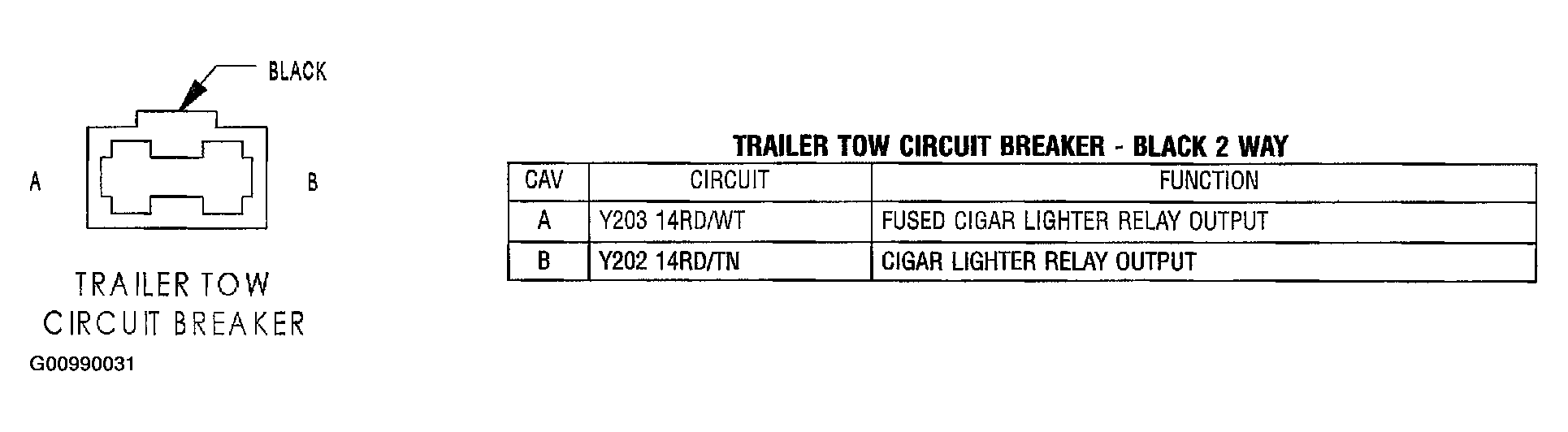

Fig 72: Identifying Trailer Tow Circuit Breaker - Black 2 Way - Connector Pinouts

G00990031

Courtesy of DAIMLERCHRYSLER CORP.

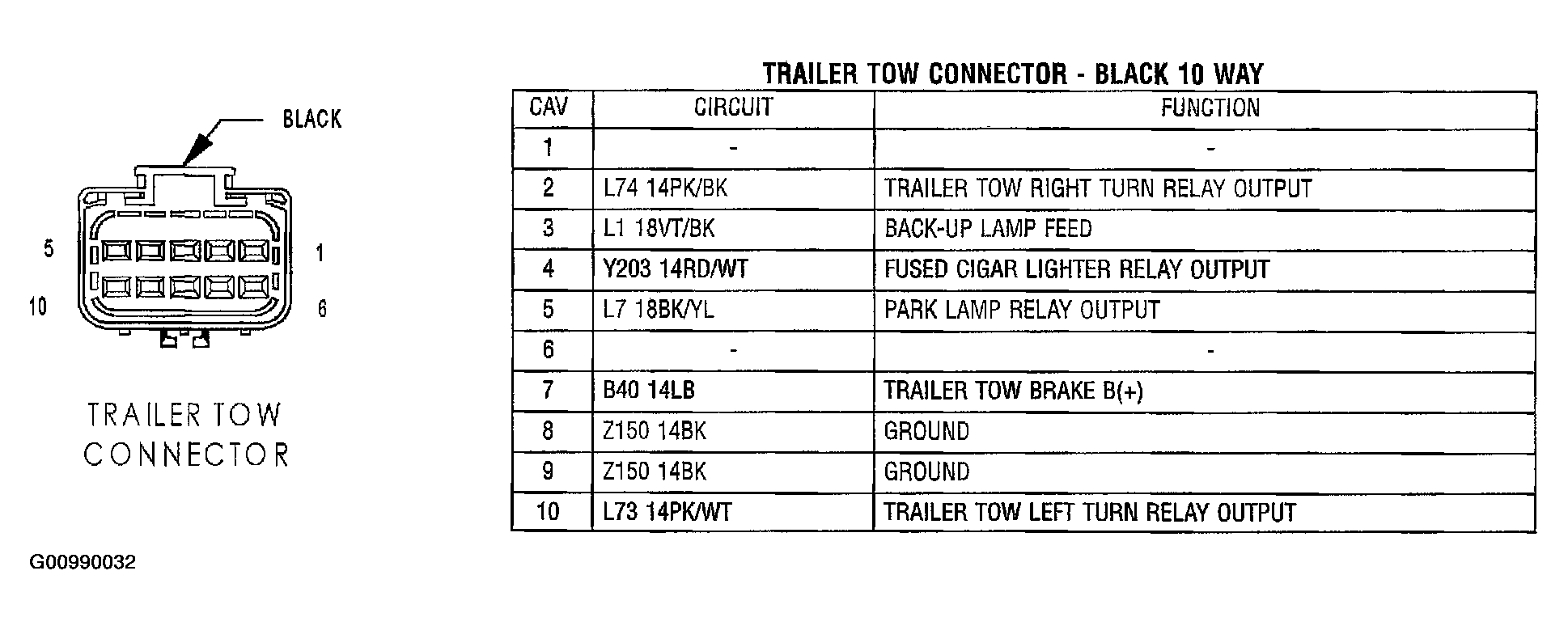

Fig 73: Identifying Trailer Tow Connector - Black 10 Way - Connector Pinouts

G00990032

Courtesy of DAIMLERCHRYSLER CORP.

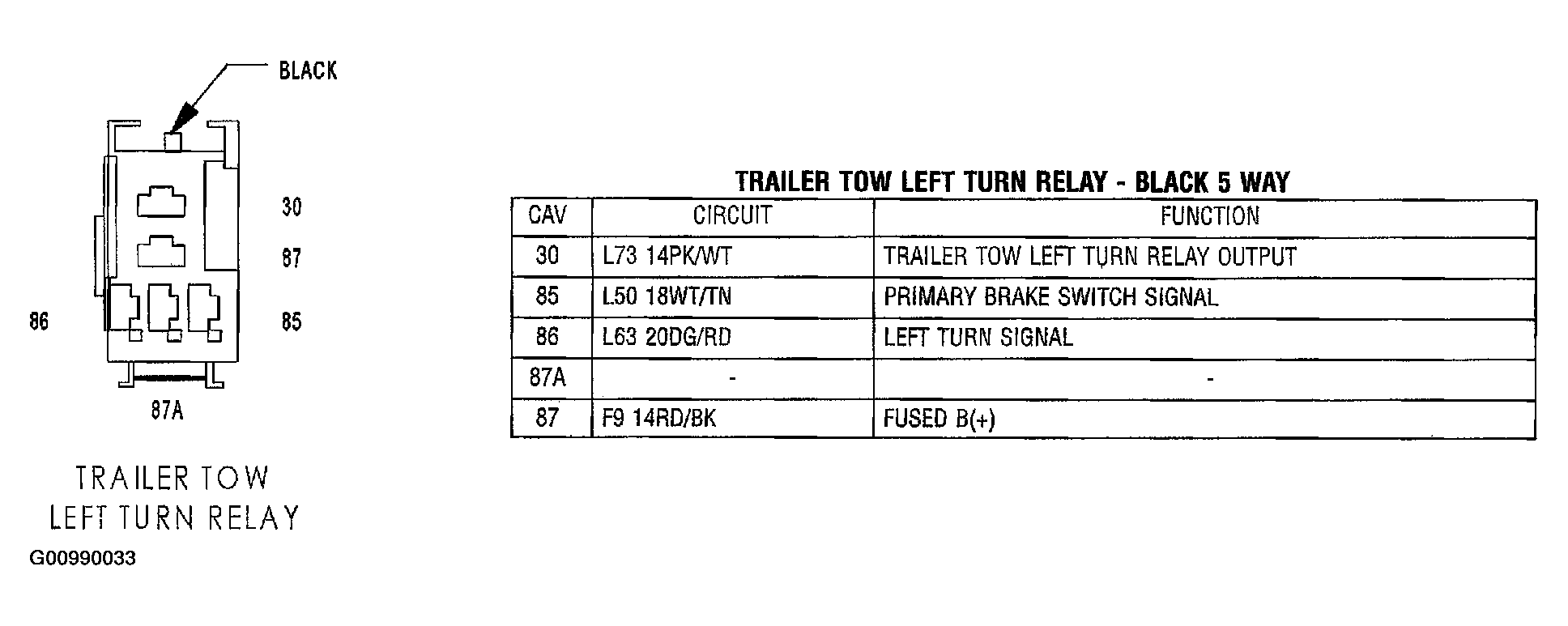

Fig 74: Identifying Trailer Tow Left Turn Relay - Black 5 Way - Connector Pinouts

G00990033

Courtesy of DAIMLERCHRYSLER CORP.

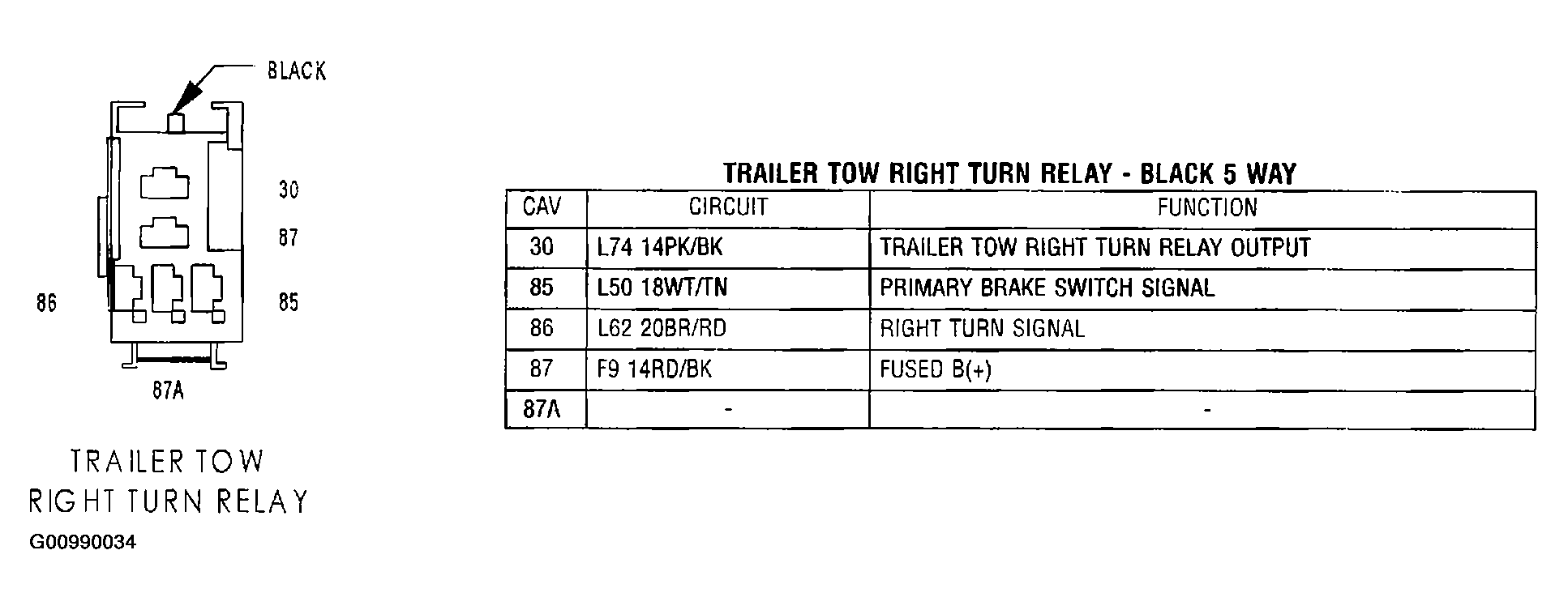

Fig 75: Identifying Trailer Tow Right Turn Relay - Black 5 Way - Connector Pinouts

G00990034

Courtesy of DAIMLERCHRYSLER CORP.

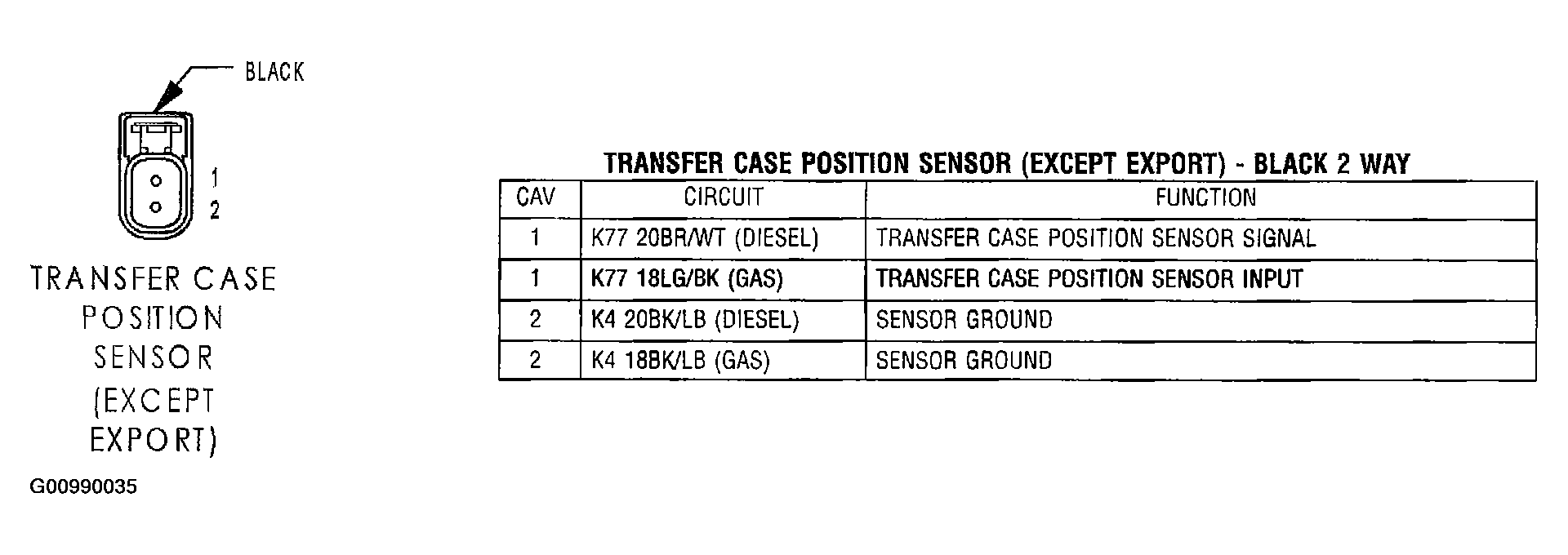

Fig 76: Identifying Transfer Case Position Sensor (Except Export) - Black 2 Way - Connector Pinouts

G00990035

Courtesy of DAIMLERCHRYSLER CORP.

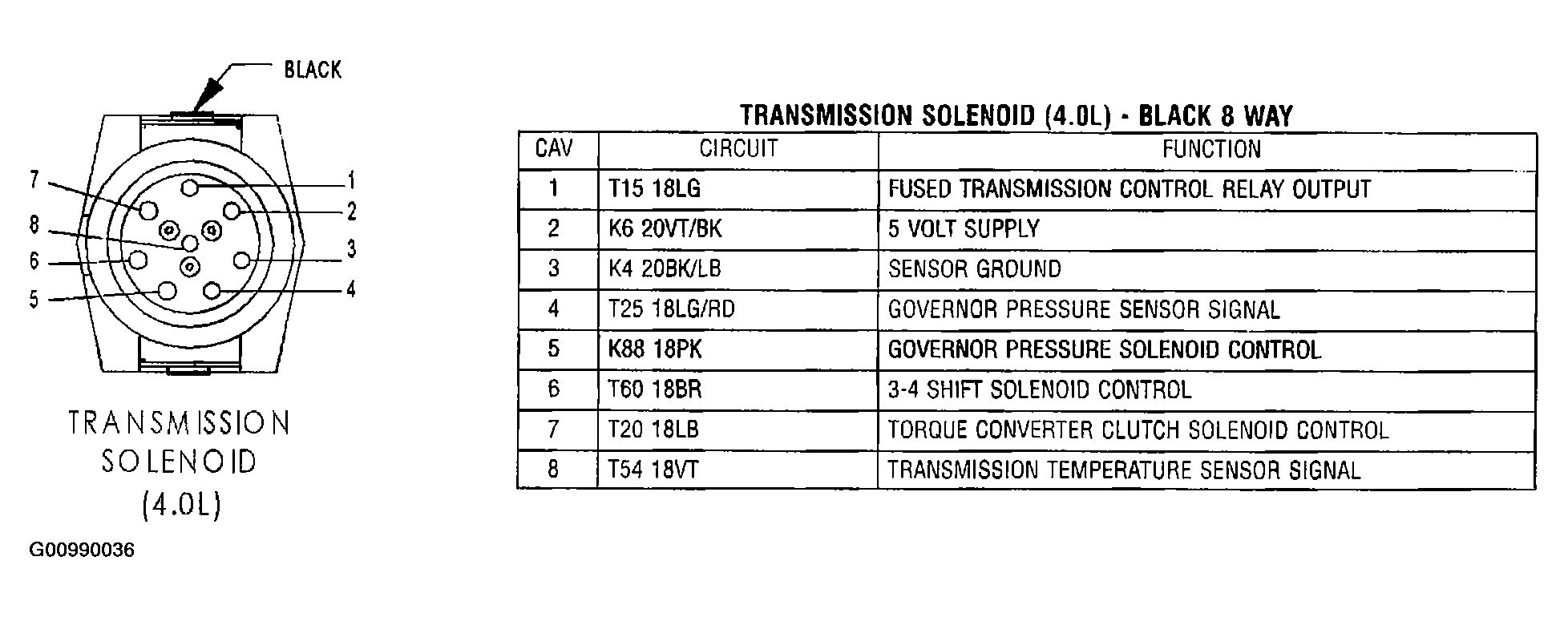

Fig 77: Identifying Transmission Solenoid (4.0L) - Black 8 Way - Connector Pinouts

G00990036

Courtesy of DAIMLERCHRYSLER CORP.
