Washer Fluid Level Switch Connector End View

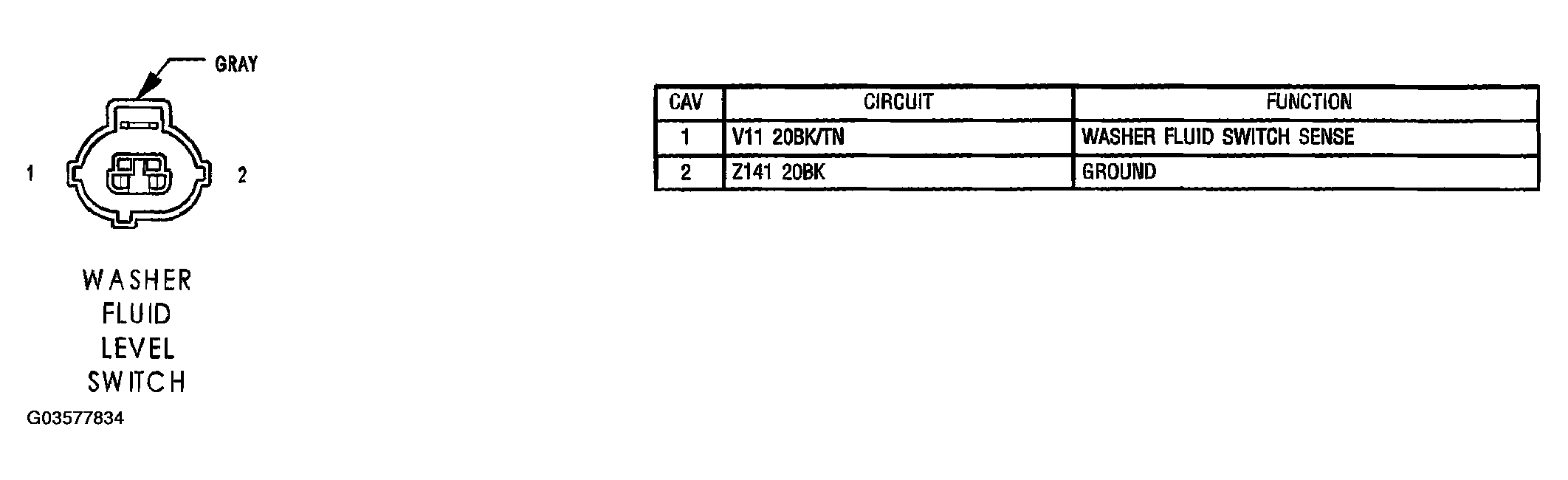

Fig 1: Washer Fluid Level Switch Connector End View

G03577834

Courtesy of DAIMLERCHRYSLER CORP.
