CLOCKSPRING C3 Connector End View

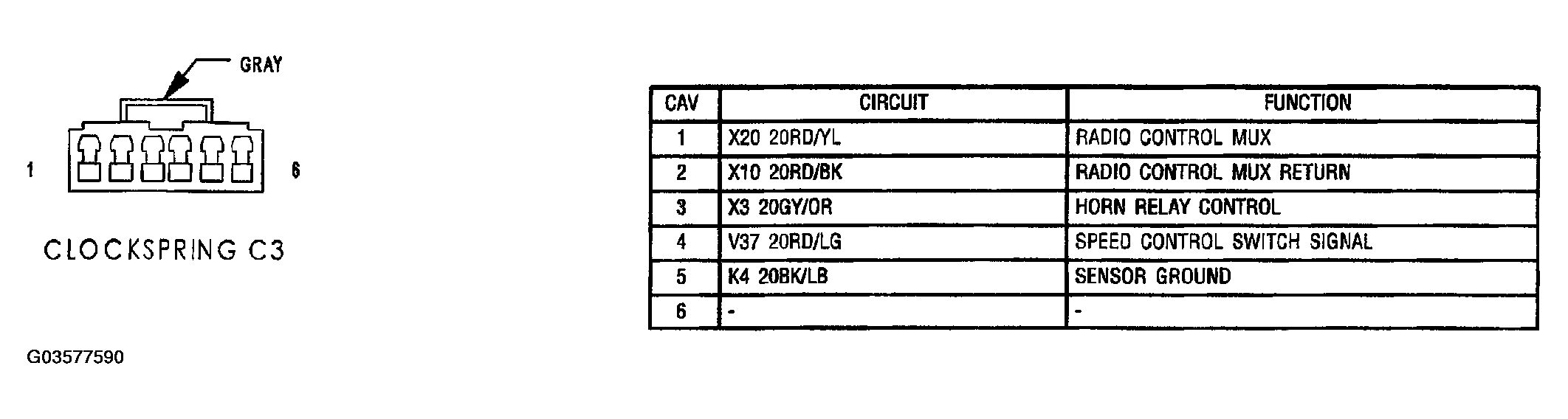

Fig 1: Clockspring Connector End View (C3)

G03577590

Courtesy of DAIMLERCHRYSLER CORP.
