Cruise Control Systems: Servo: Removal
- Disconnect negative battery cable at battery.

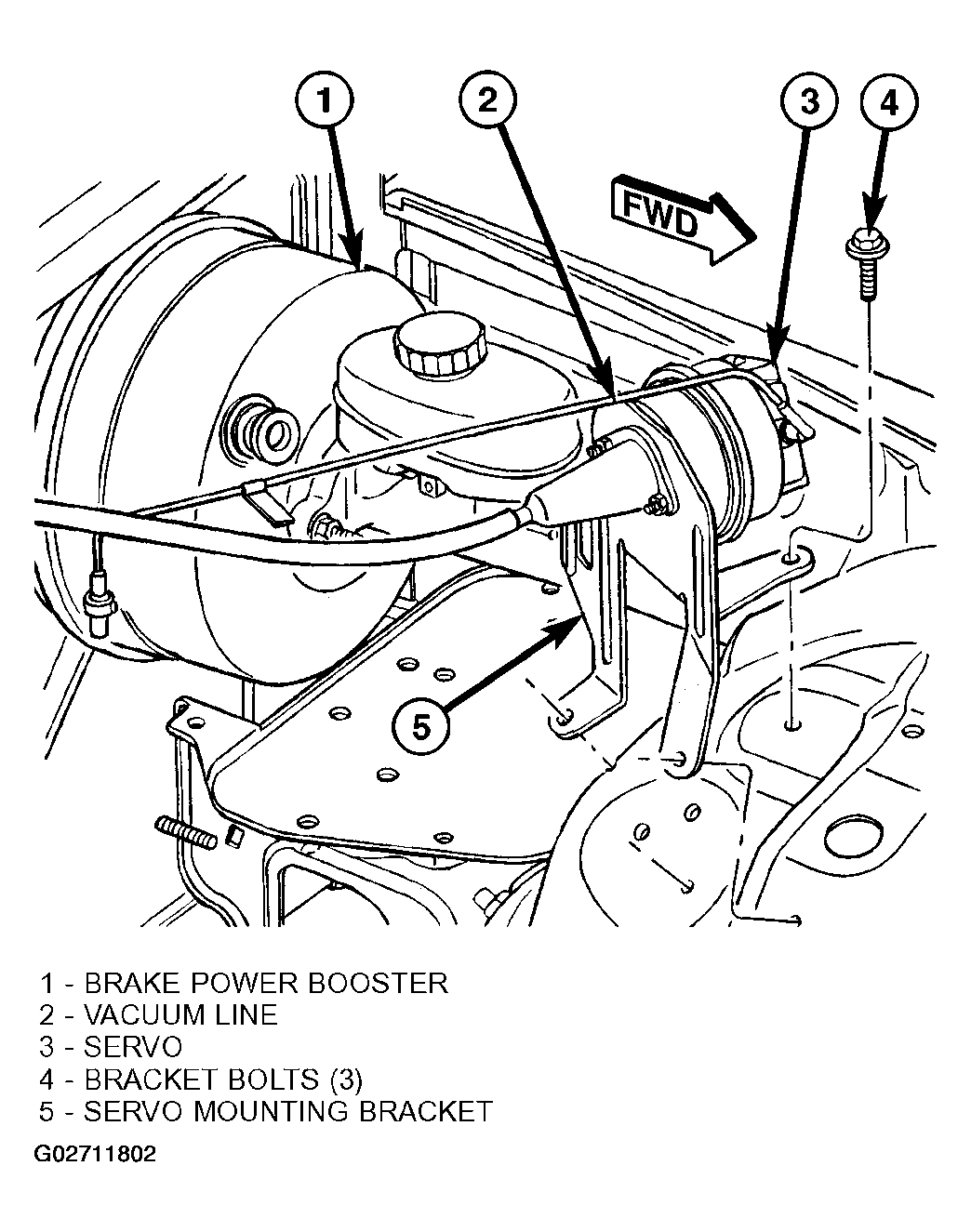

- Disconnect vacuum line at servo (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect electrical connector at servo.
- Disconnect servo cable at throttle body. Refer to CABLE
.
- Remove three bracket mounting bolts (Fig 1
).

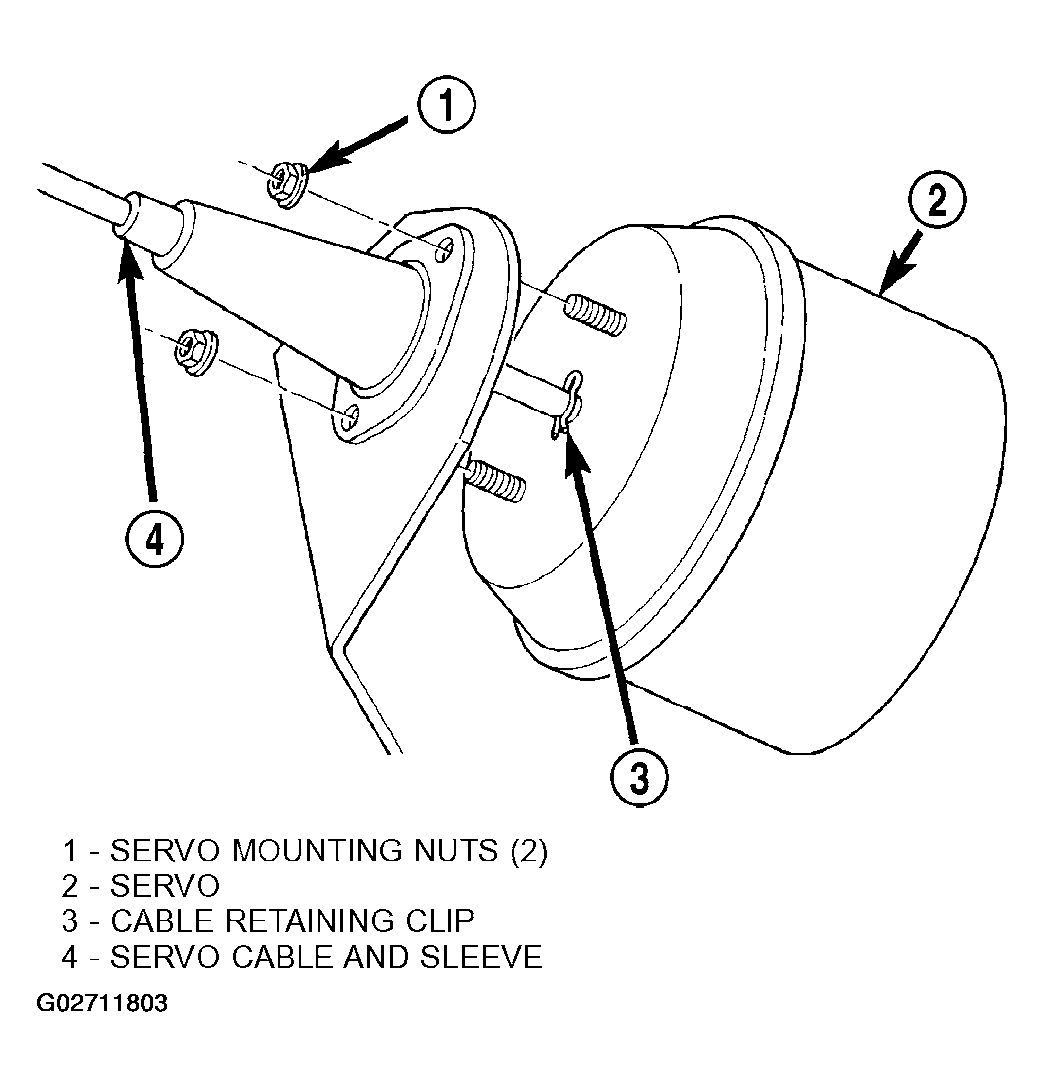

- Remove 2 mounting nuts holding servo cable sleeve to bracket (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
- Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (Fig 2
) and remove clip. Note: The servo mounting bracket displayed in (Fig 2
) is a typical bracket and may/may not be applicable to this model vehicle.
- Remove servo from mounting bracket. While removing, note orientation of servo to bracket.
