Blower Motor Relay Connector End View

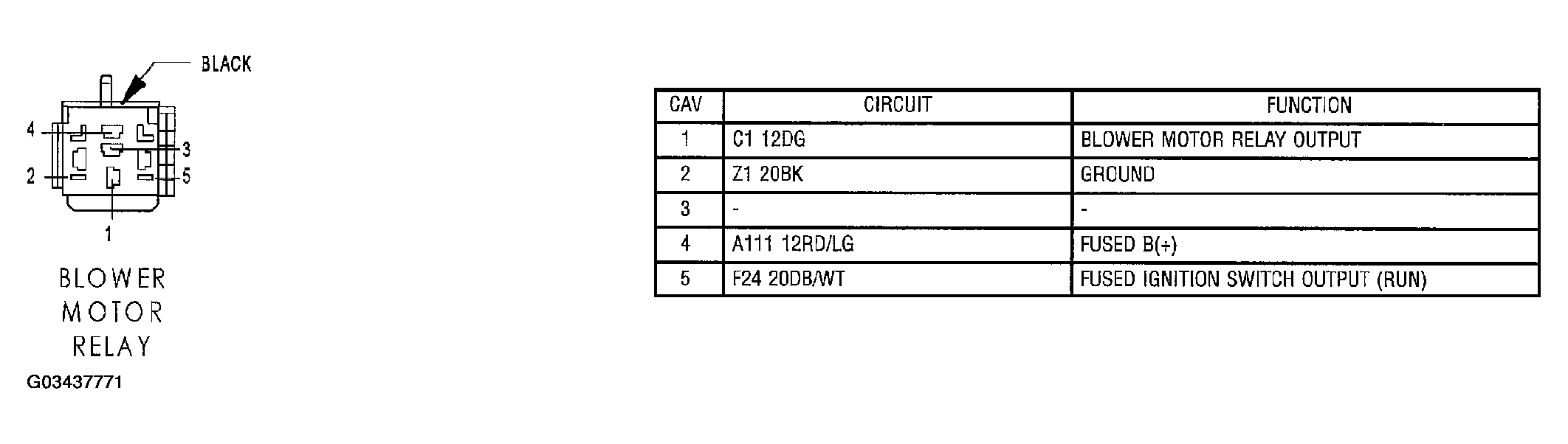

Fig 1: Blower Motor Relay Connector End View

G03437771

Courtesy of DAIMLERCHRYSLER CORP.
