Leak Detection Pump Connector End View

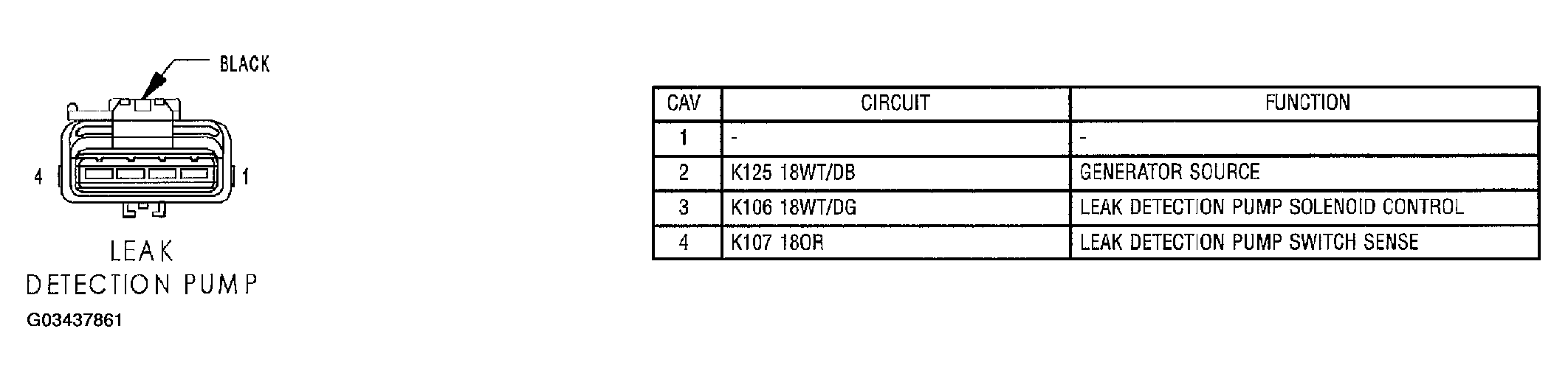

Fig 1: Leak Detection Pump Connector End View

G03437861

Courtesy of DAIMLERCHRYSLER CORP.
