Right Rear Lamp Assembly Connector End View
Right Rear Lamp Assembly Connector End View

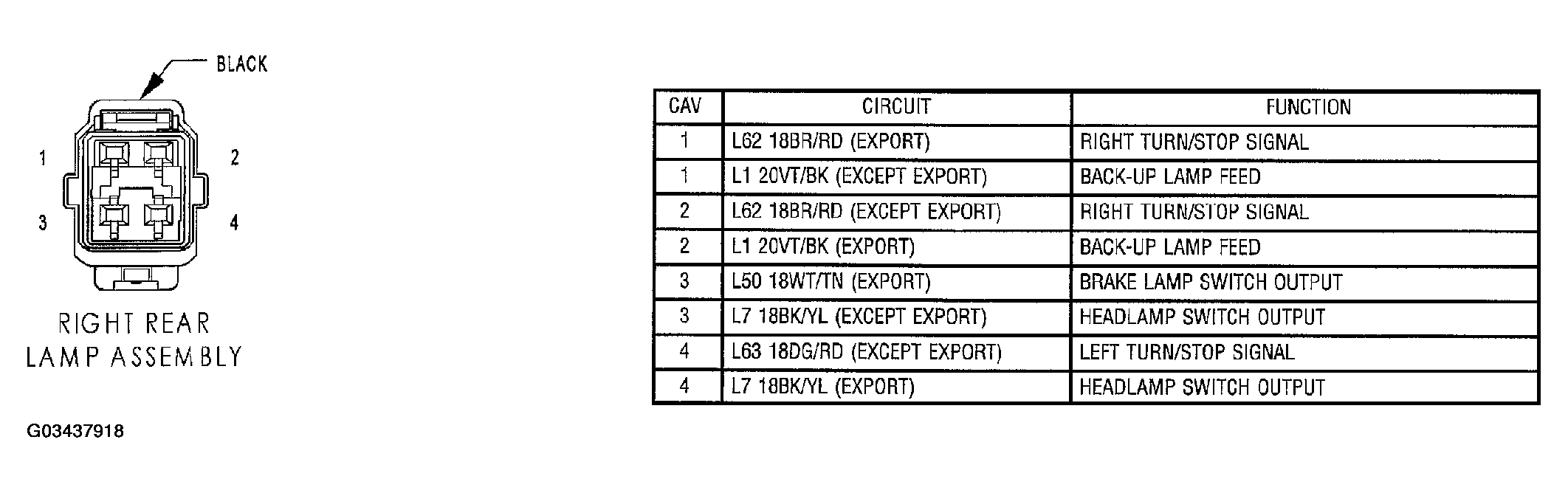

Fig 1: Right Rear Lamp Assembly Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
