Front Mount: Installation
WARNING: This page is about a different variant/trim than selected.

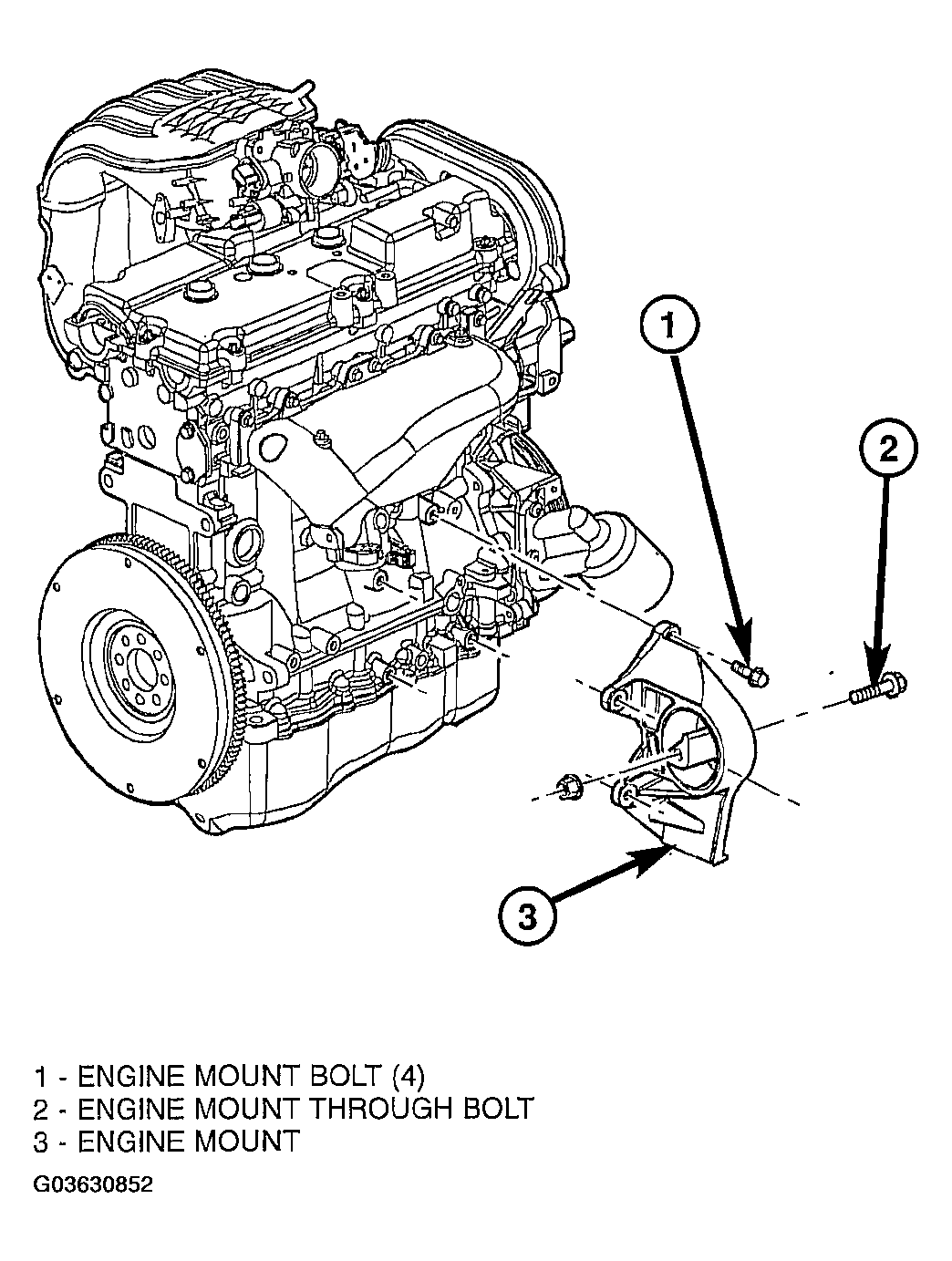

- Install the insulator mount assembly (Fig 1

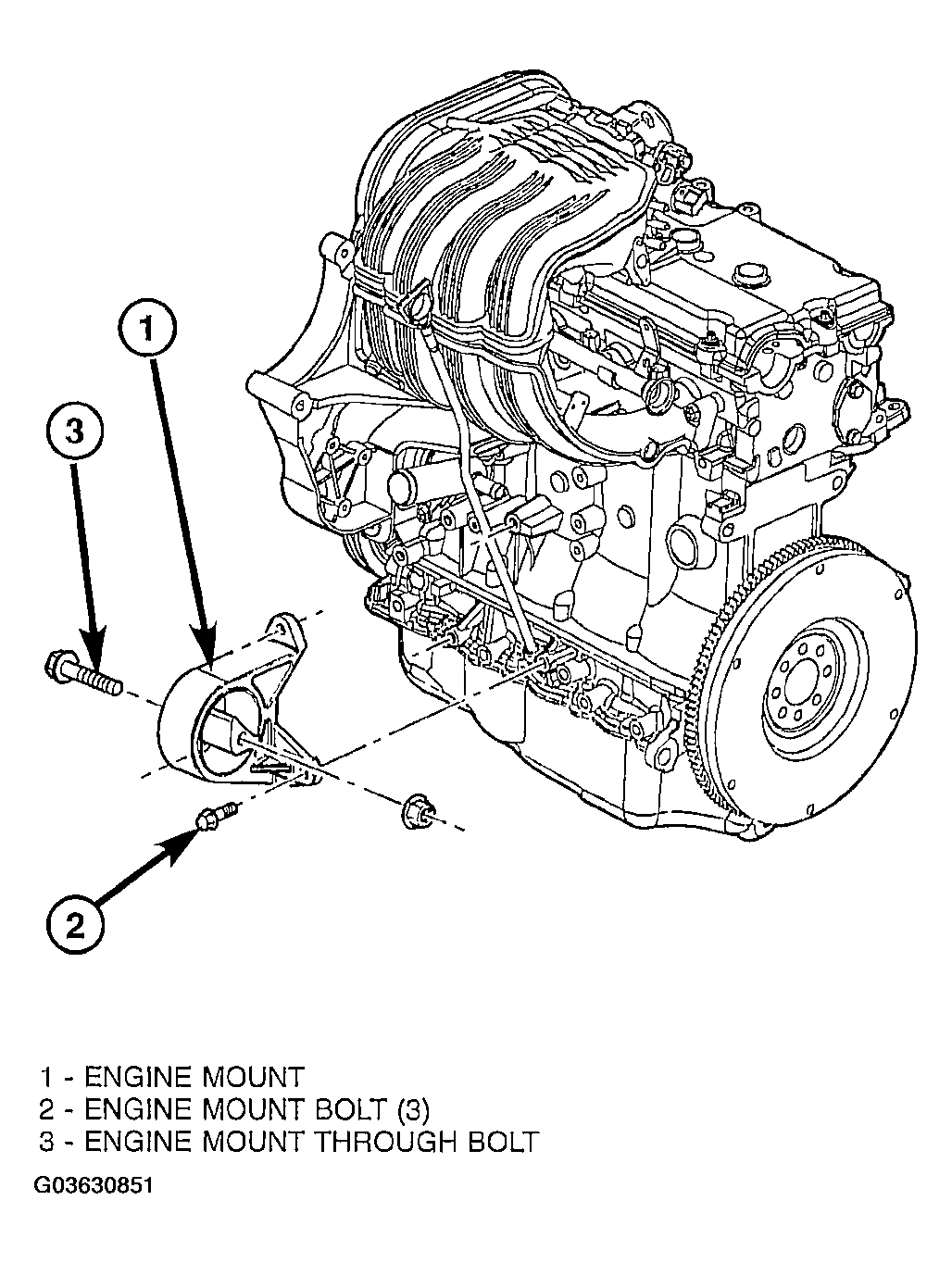

) and (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Tighten the mount to engine bolts.
- Loosely install the front engine mount through bolt to the insulator.
- Lower the engine.
- Tighten the through bolt.
- Lower the vehicle.
