Front Seat: Installation

  1. Position seat on floor pan.
  2. If equipped, connect power seat wire harness connector.
  3. Install rear bolts attaching seat to floor pan and tighten to 40 N.m (30 ft. lbs.).
  4. If equipped, install cover on seat track.
  5. Move seat to full rearward position.

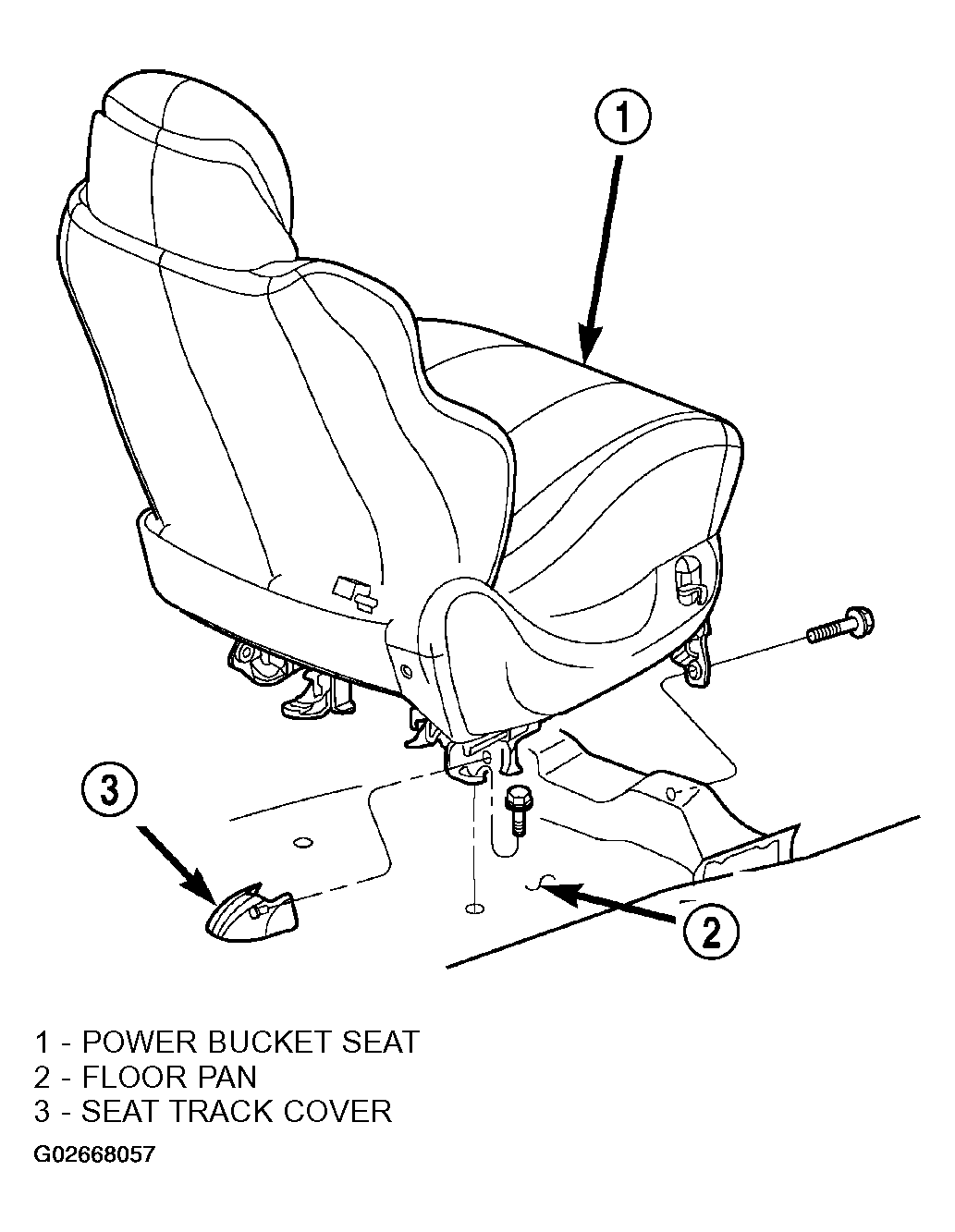

    Fig 1: Installing Front Bucket Seat
    G02668057Courtesy of DAIMLERCHRYSLER CORP.
  6. Install front bolts attaching seat to floor pan and tighten to 40 N.m (30 ft. lbs.).
