Powertrain Control Module C4 Connector End View - Black/Green 38 Way

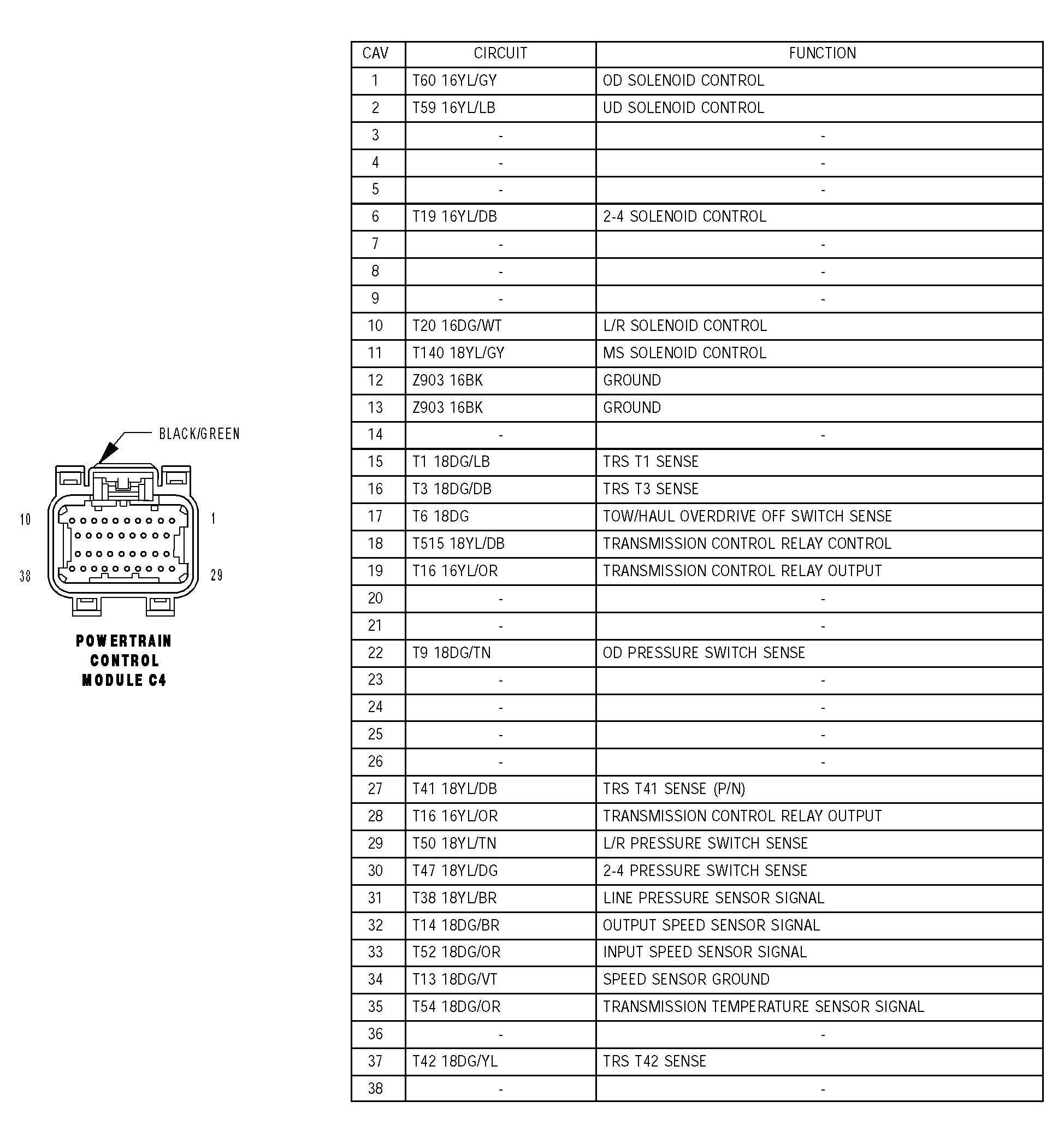

Fig 1: Powertrain Control Module C4 Connector End View - Black/Green 38 Way

G04550693

Courtesy of CHRYSLER GROUP, LLC
