Junction Block C2 Connector End View

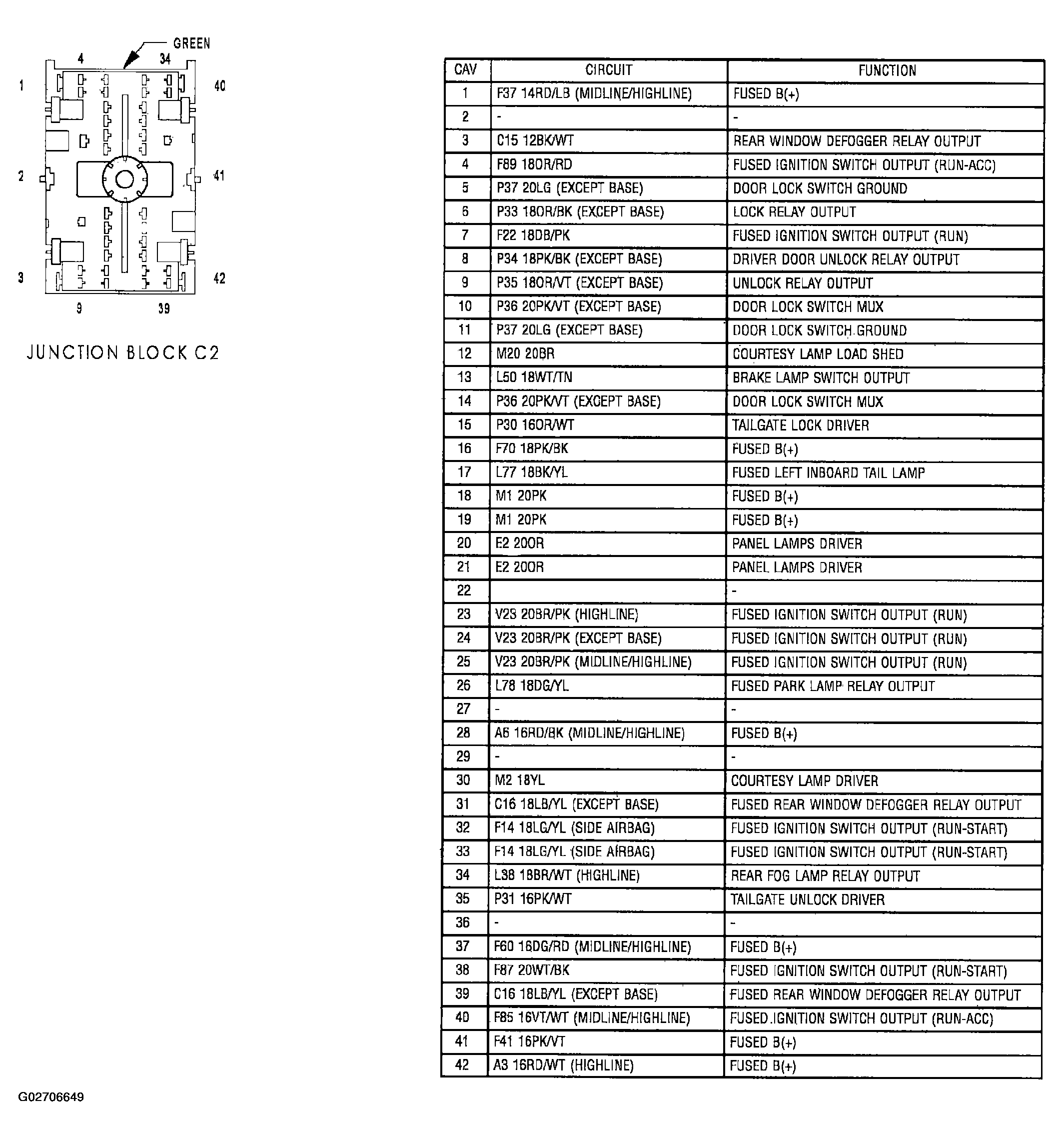

Fig 1: Junction Block C2 Connector End View

G02706649

Courtesy of CHRYSLER GROUP, LLC
