Transfer Case Position Sensor Connector End View

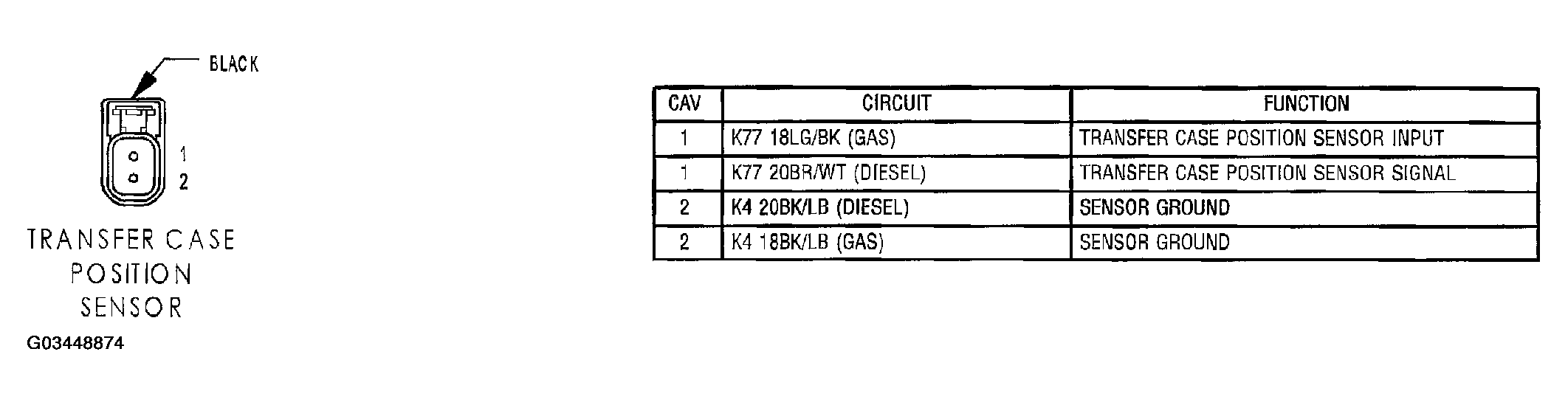

Fig 1: Transfer Case Position Sensor Connector End View

G03448874

Courtesy of CHRYSLER GROUP, LLC
