Home >> Jeep >> 2002 >> Grand Cherokee Overland >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Powertrain Control Module (Gas) Connector End View (C2)

Powertrain Control Module (Gas) Connector End View (C2)

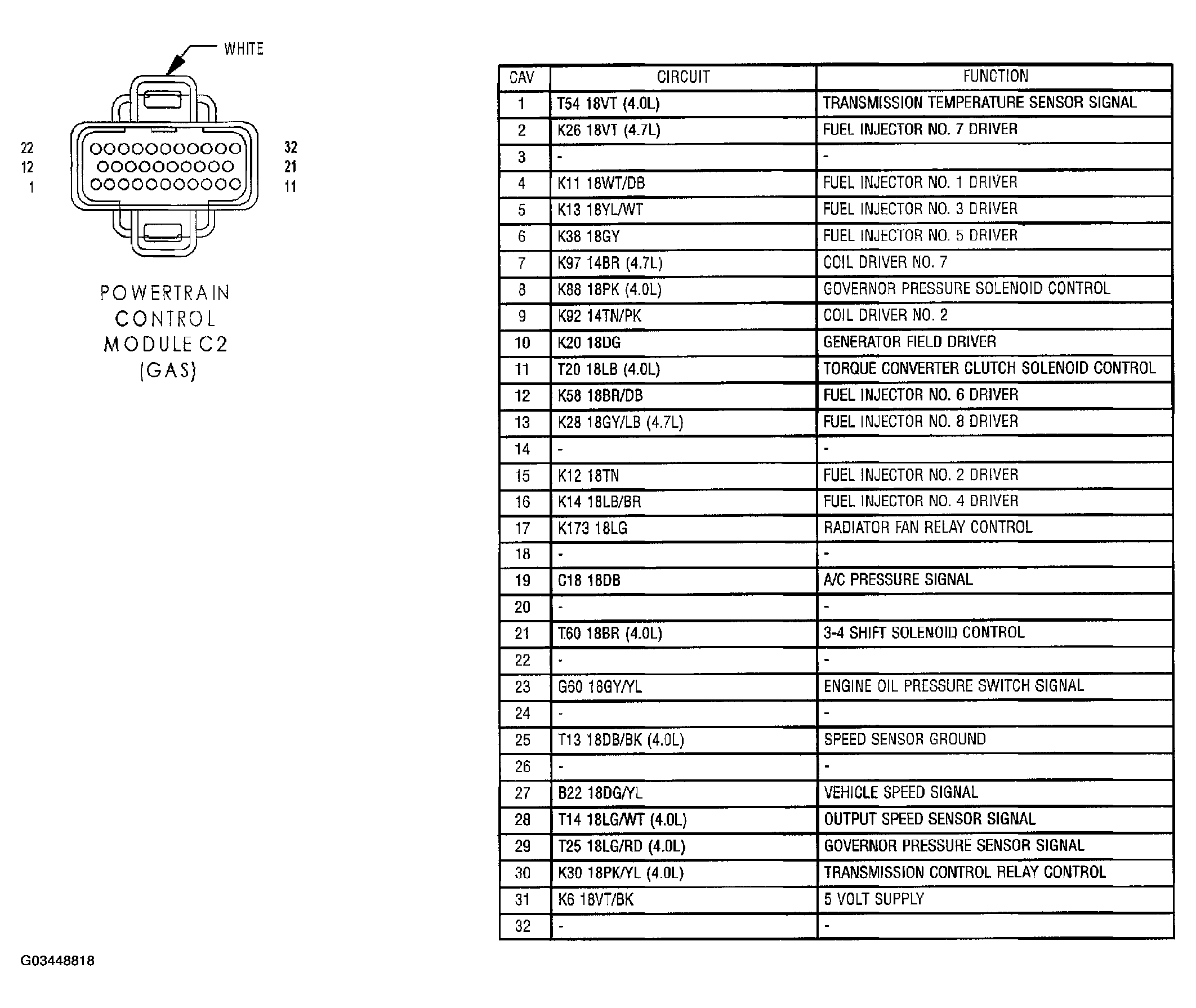

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)

G03448818

Courtesy of CHRYSLER GROUP, LLC
