ORC Airbag Control Module Connector End View (C2)

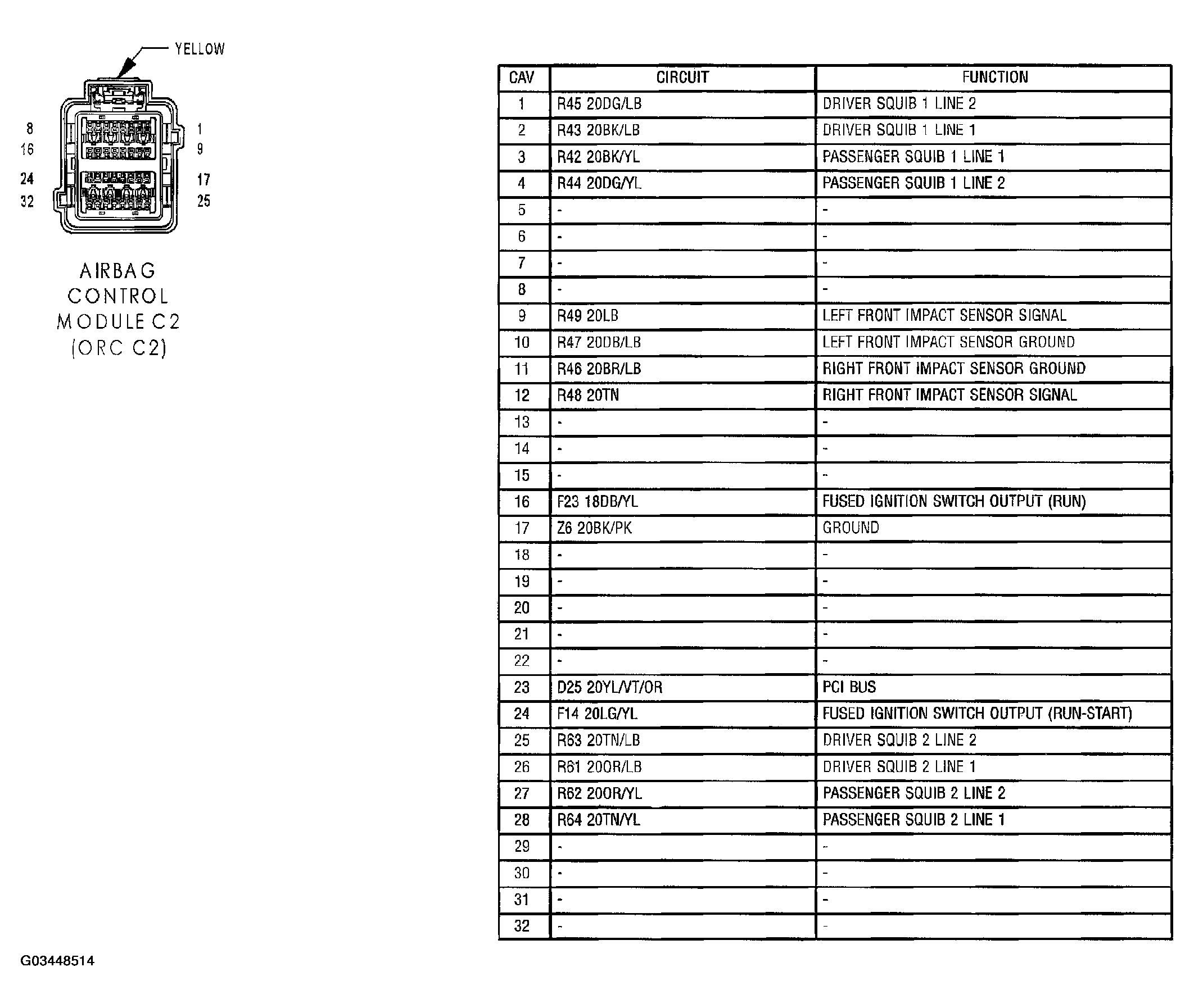

Fig 1: ORC Airbag Control Module Connector End View (C2)

G03448514

Courtesy of CHRYSLER GROUP, LLC
