ORC Airbag Control Module Connector End View (C1)

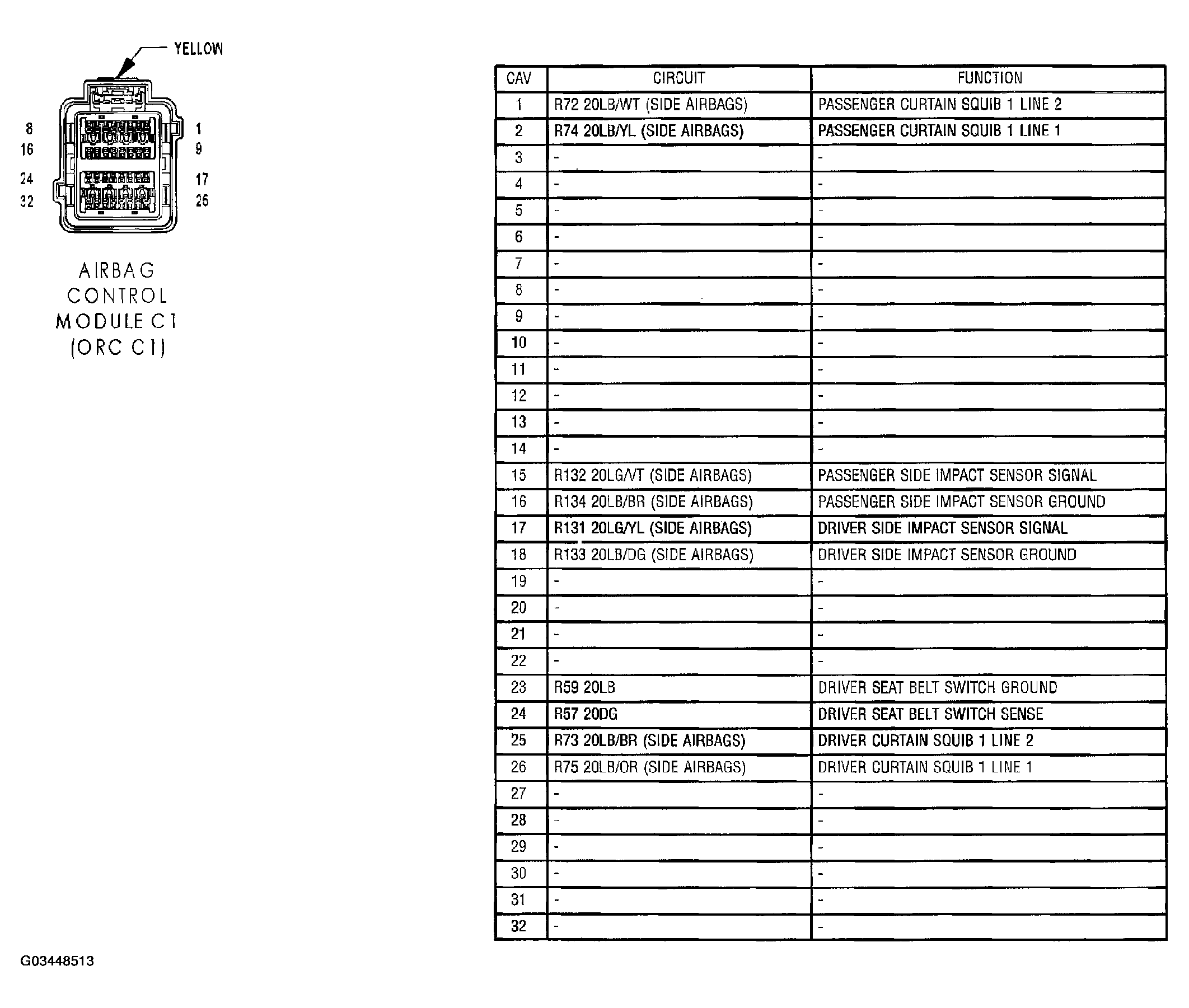

Fig 1: ORC Airbag Control Module Connector End View (C1)

G03448513

Courtesy of CHRYSLER GROUP, LLC
