Power Distribution Center

NOTE: Power distribution center is located on passenger's side of engine compartment, near the battery. See Fig 1 .

Fig 1: Locating Power Distribution Box

Courtesy of CHRYSLER CORP.

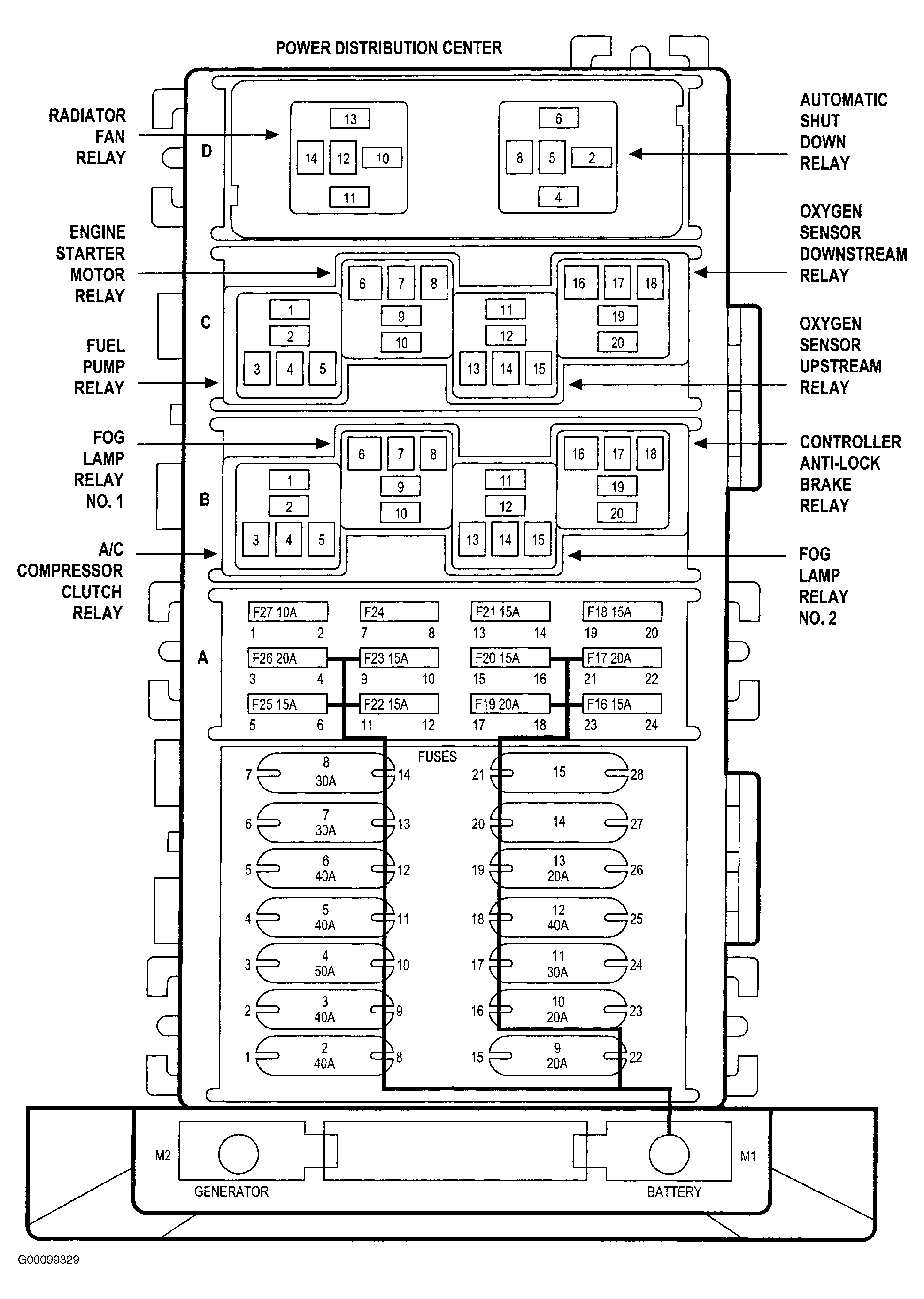

Fig 2: Identifying Power Distribution Box Components

Courtesy of CHRYSLER CORP.

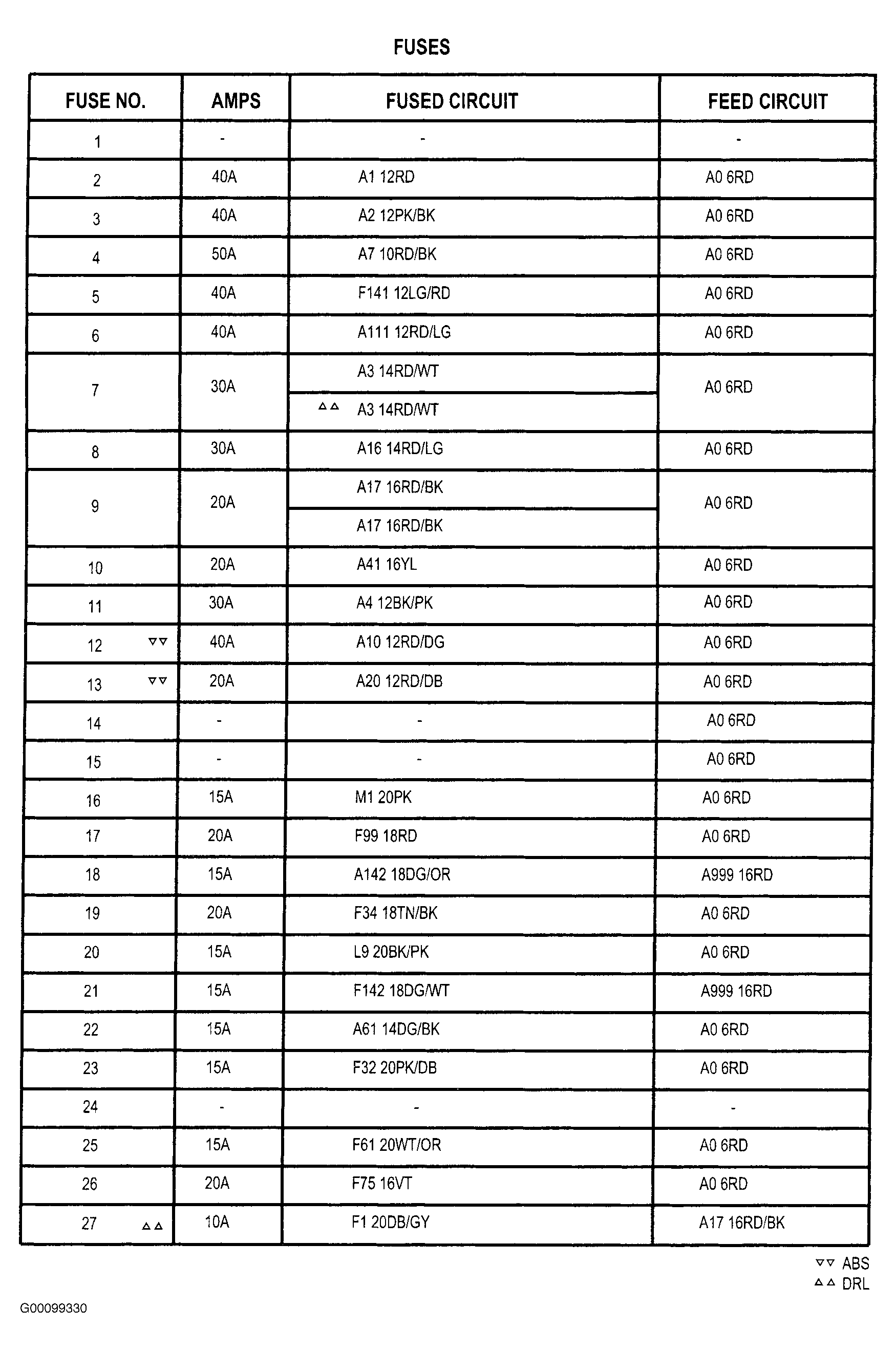

Fig 3: Power Distribution Box Legend

Courtesy of CHRYSLER CORP.
