Connector Identification

Fig 1: Identifying Buzzer Module Connector Terminals (Terminal Side)

G00110349

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Buzzer Module Terminals

G00110352

Courtesy of CHRYSLER CORP.

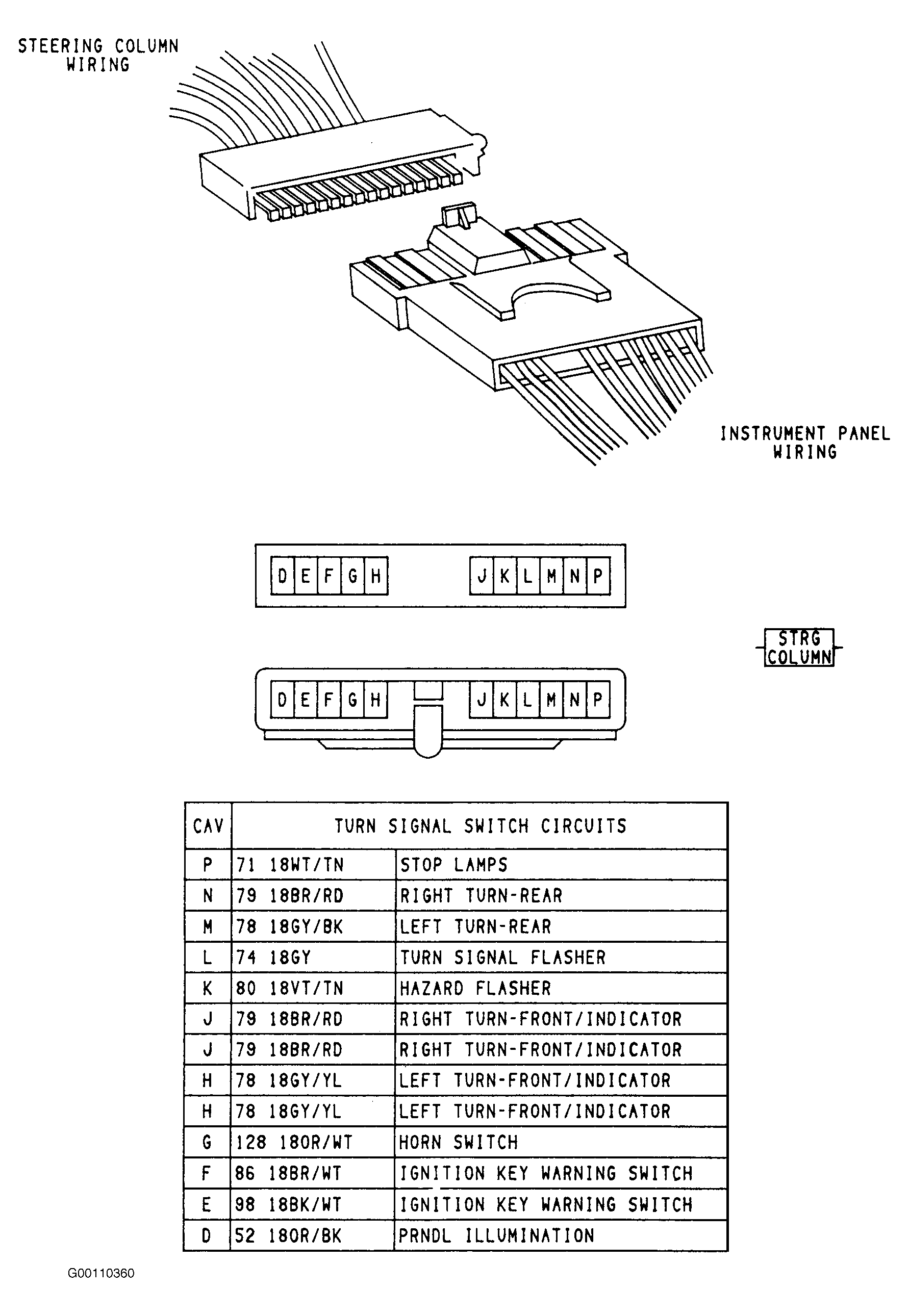

Fig 3: Identifying Steering Column Wiring Connector

G00110360

Courtesy of CHRYSLER CORP.
