Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See Fig.
Brakelight Switch	1
Cruise Control Relay	2
Cruise Control Servo	3
Cruise Control Switch	4
Distance Sensor	5
Single Board Engine Controller (SBEC)	6

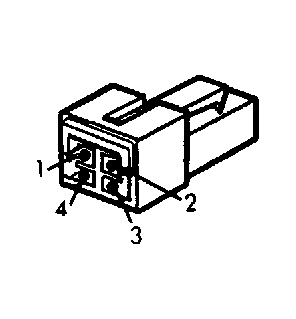

Fig 1: Identifying Brakelight Switch Connector Terminals

Courtesy of CHRYSLER MOTORS

Fig 2: Identifying Cruise Control Relay Connector Terminals

Courtesy of CHRYSLER MOTORS

Fig 3: Identifying Cruise Control Servo Connector Terminals

Courtesy of CHRYSLER MOTORS

Fig 4: Identifying Cruise Control Switch Connector Terminals

Courtesy of CHRYSLER MOTORS

Fig 5: Identifying Distance Sensor Connector Terminals

Courtesy of CHRYSLER MOTORS

Fig 6: Single Board Engine Controller (SBEC) Connector Terminals Id

Courtesy of CHRYSLER MOTORS
