Intermittent Wiper Module

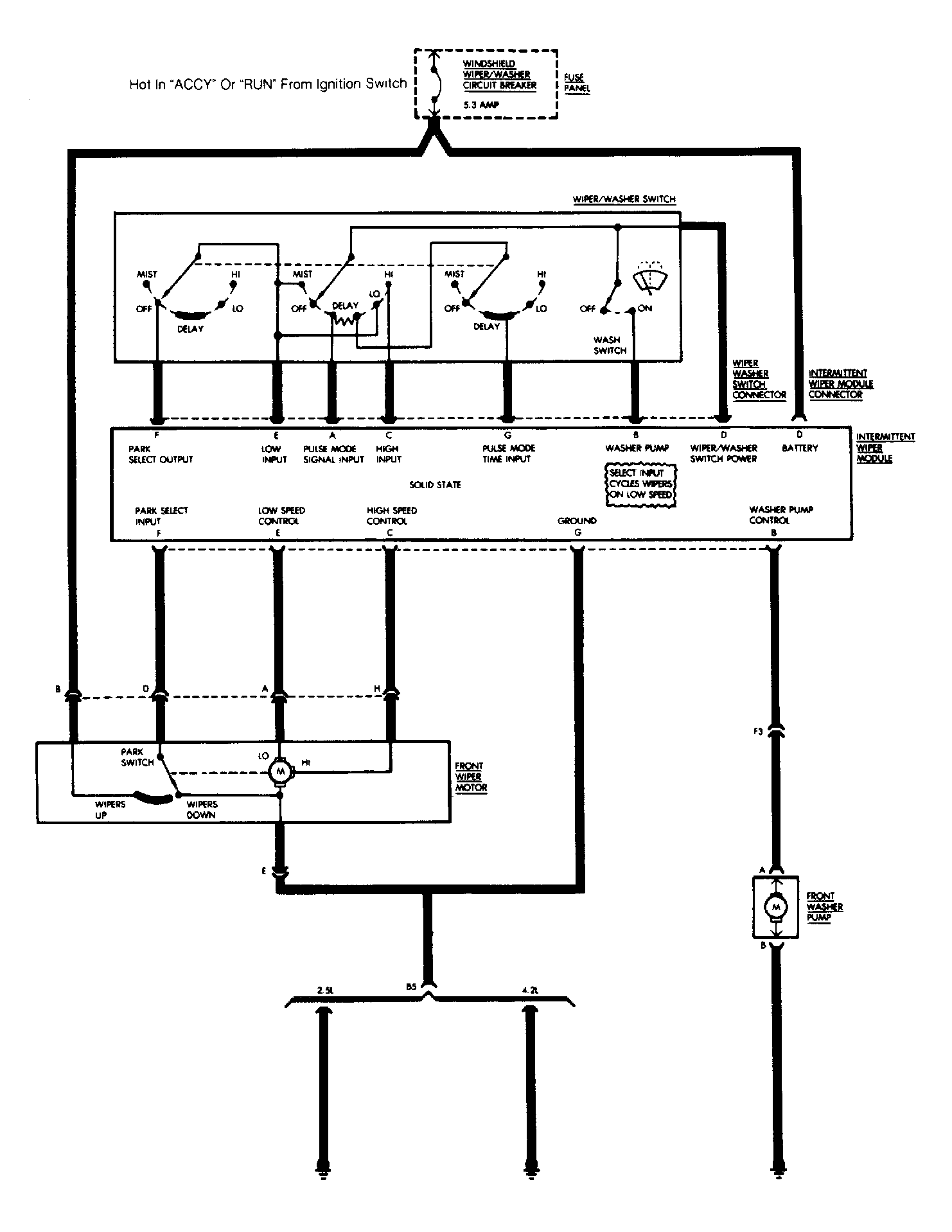

Turn ignition on with engine off. Remove intermittent delay module and plug connectors "A" and "B" together. See Figure . If wipers and washer now operate, replace intermittent wiper module. If wipers do not operate, proceed to switch test.
