Code 702: Speed Sensor

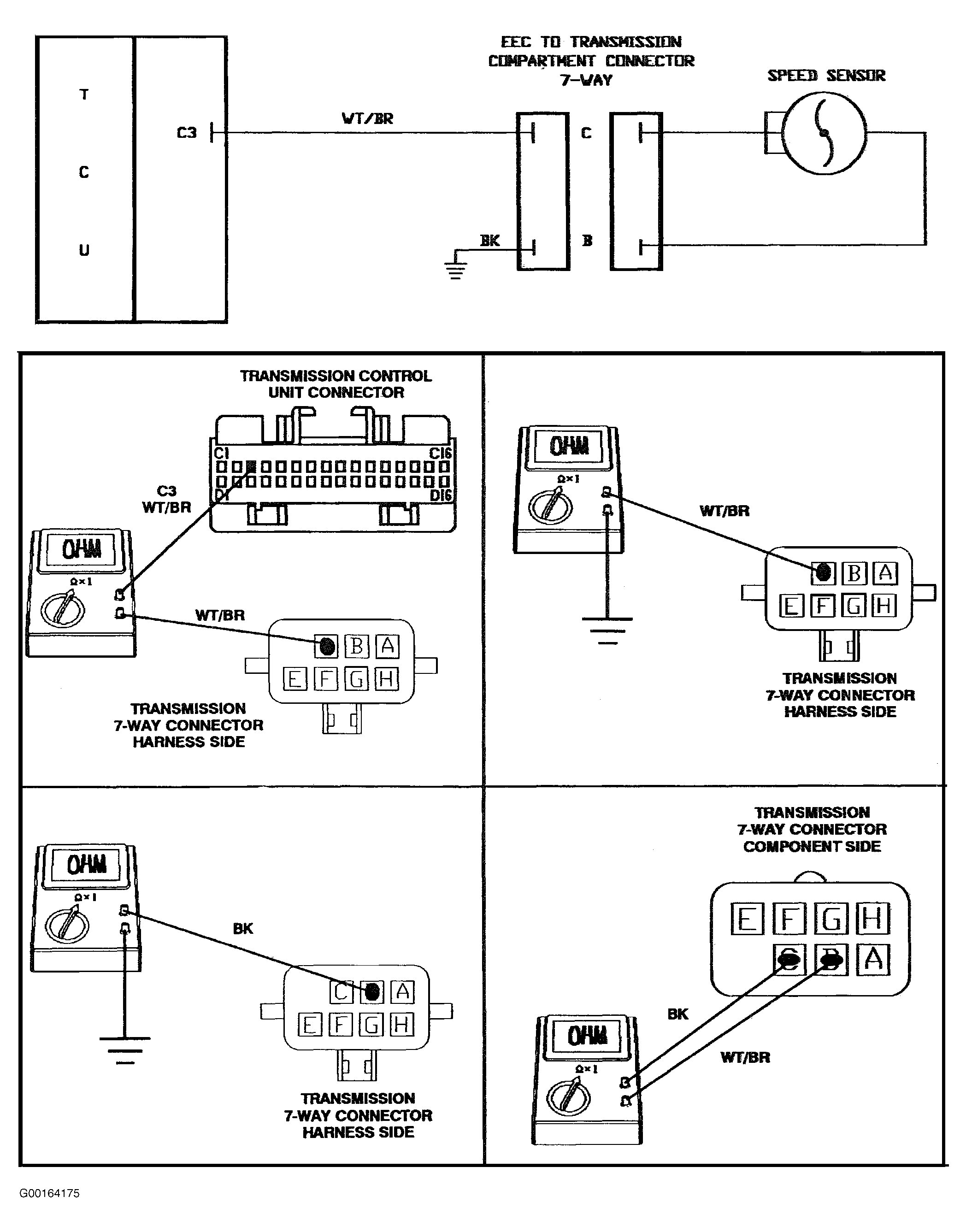

Fig 1: Code 702 - Speed Sensor (1 Of 2)

G00164175

Courtesy of CHRYSLER CORP.

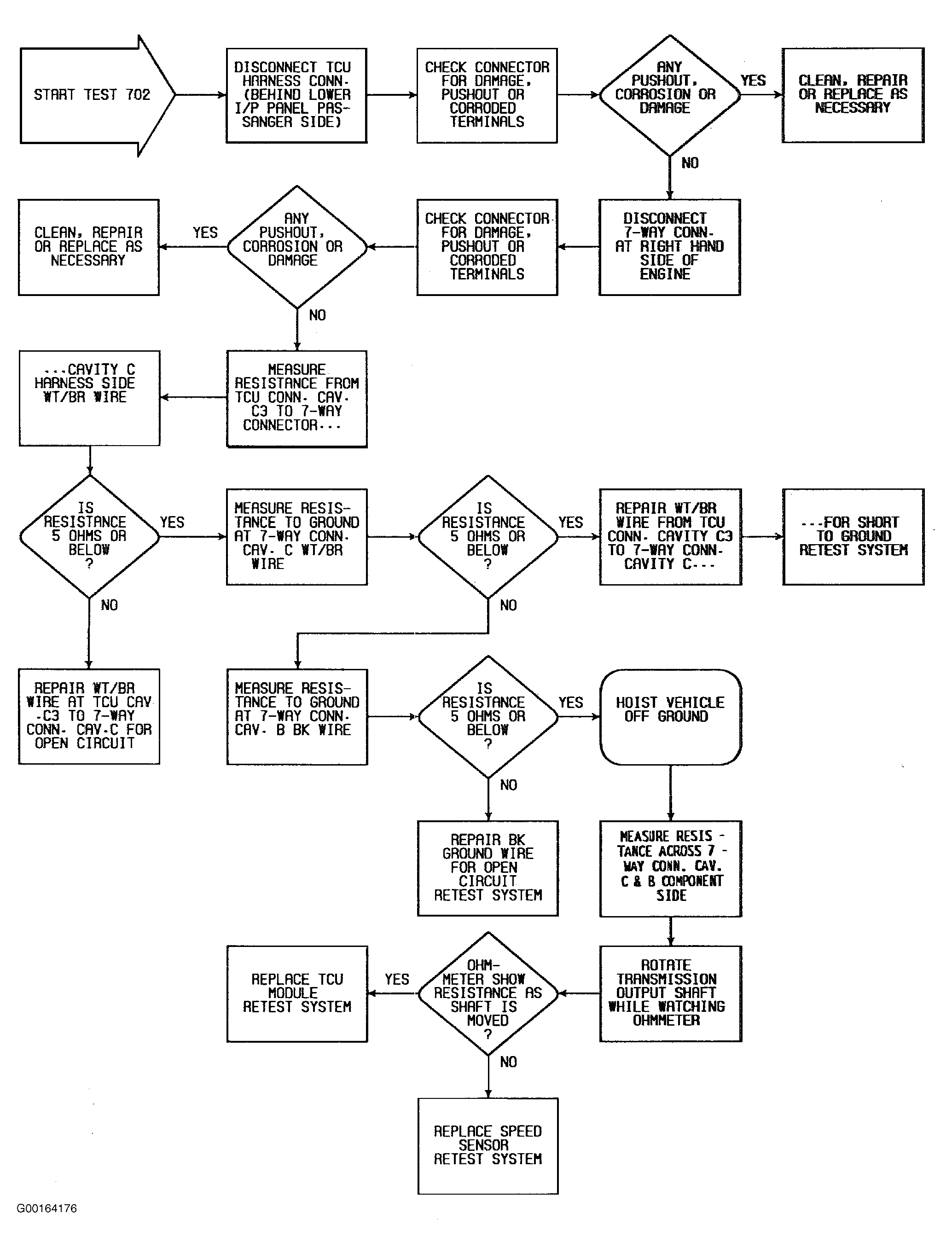

Fig 2: Code 702 - Speed Sensor (2 Of 2)

G00164176

Courtesy of CHRYSLER CORP.
