Carburetor Identification: Ford

A carburetor identification tag is attached to carburetor. The tag contains part number prefix and suffix. Basic part number for all carburetors is 9510.

A design change code (if any) is also stamped on the tag. An assembly date code (year, month and day) is also stamped on the tag. See Fig 1.

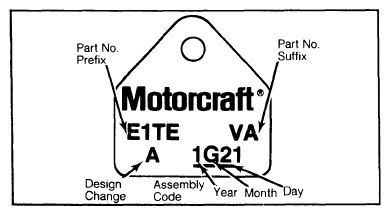

Fig 1: Ford Carburetor Identification Tag. This Identification Tag is Attached to Ford Carburetors.

Courtesy of FORD MOTOR CO.
