Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  • Some variation in the illustrations may occur, but the essential information is always correct.

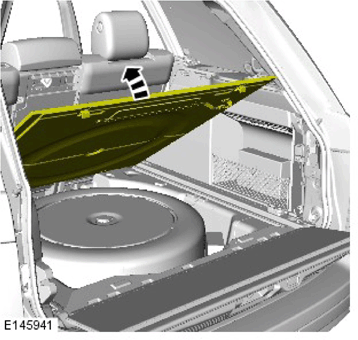

  1. G11335460

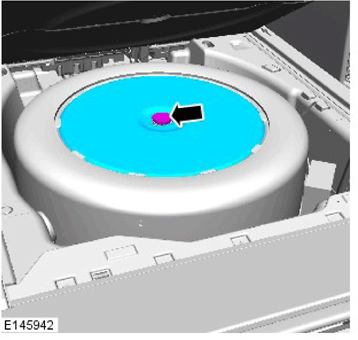

  2. G11335461

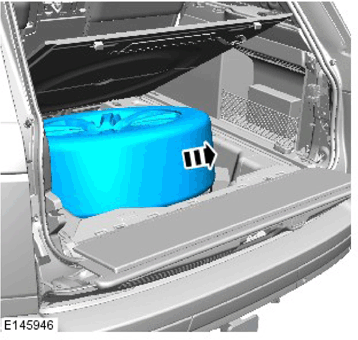

  3. G11335462

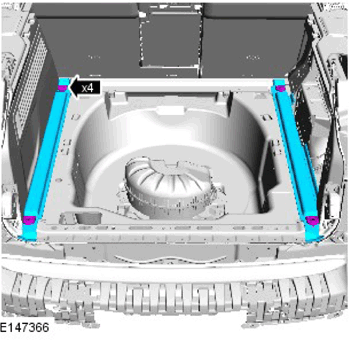

  4. G11335463

    Torque Specification: 9 Nm

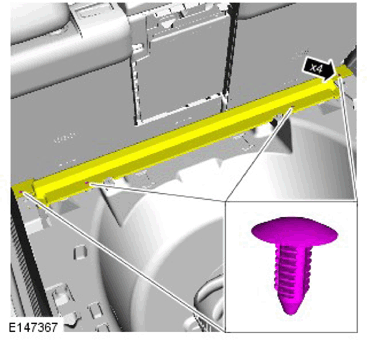

  5. G11335464

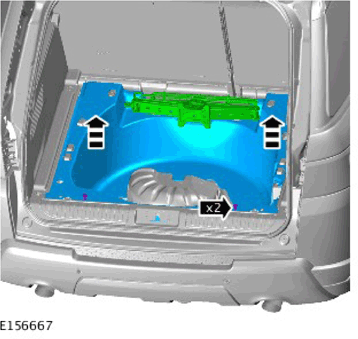

  6. G11335465

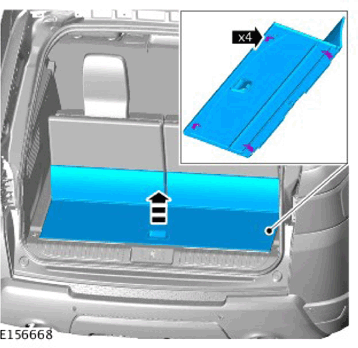

  7. NOTE: If equipped.
    G11335466

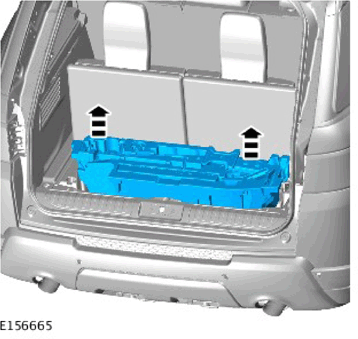

  8. NOTE: If equipped.
    G11335467

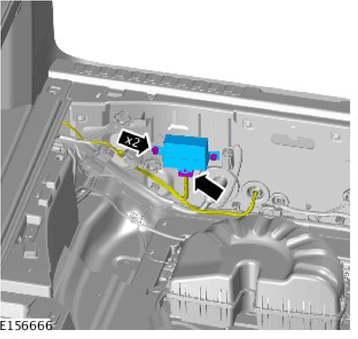

  9. CAUTION: Take extra care not to damage the threads.
    G11335468

    Torque Specification: 2 Nm
