Removal And Installation: Installation

  1. To install reverse the removal procedure.
  2. Start the engine.
    1. Press and hold the brake pedal down.
    2. Allow the engine to run for longer than 2 seconds.
  4. Turn off the engine.
  5. Set the ignition to the ON position.
  6. Set the ignition to the OFF position.

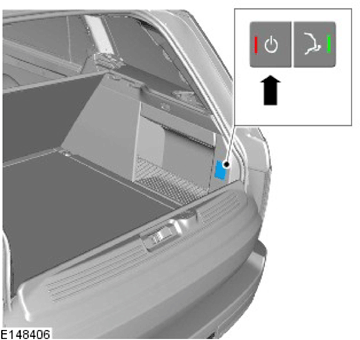

  7. G11335469

    Press ON button until the green led illuminates. This will take approximately 2 seconds.

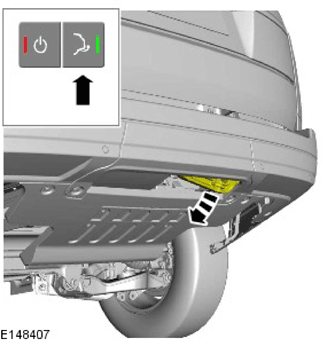

  8. G11335470

    1. Press and hold deploy/stow button until the towbar moves to fully deployed position. Listen for two beeps to confirm system is calibrated.

    2. Release button.
