Transmission Fluid Drain & Refill: Drain

Raise and support the vehicle.
Place a suitable container under the transmission.
Using the special tool, remove the transmission fluid filler plug.
- Remove and discard the sealing washer.

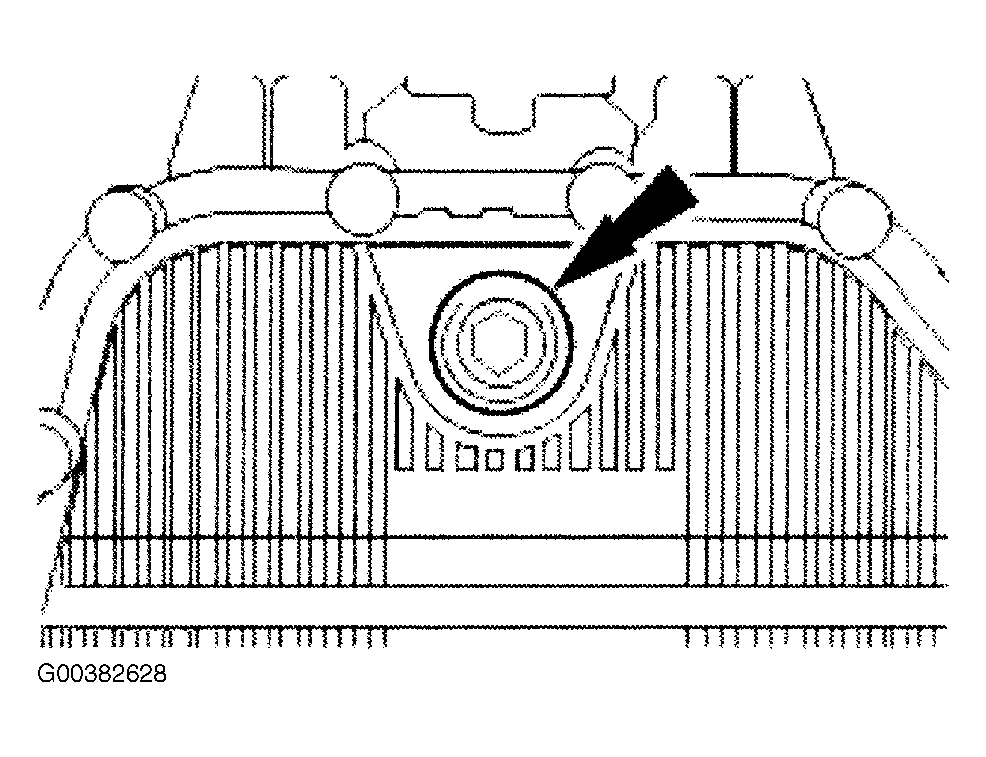

Fig 1: Removing & Installing Transmission Filler Plug
Courtesy of JAGUAR CARS, INC.

NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metallic particles may be found from normal wear. However, if excessive metallic particles are present, internal inspection may be required.

Remove the transmission fluid drain plug.
1. Remove and discard the sealing washer.

  Fig 2: Removing Transmission Fluid Drain Plug & Sealing Washer
  Courtesy of JAGUAR CARS, INC.
Install the transmission fluid drain plug.
- Install the new sealing washer.
- Tighten to 8 Nm.
See Fig 2.
