Single Planetary Gearset

The single planetary gear overdrive carrier is driven by the input shaft.

The single planetary gear set consists of:

• 1 sunwheel.
• 4 planetary gears meshing with the sunwheel.
• 1 planetary gear carrier.
• 1 ring gear.

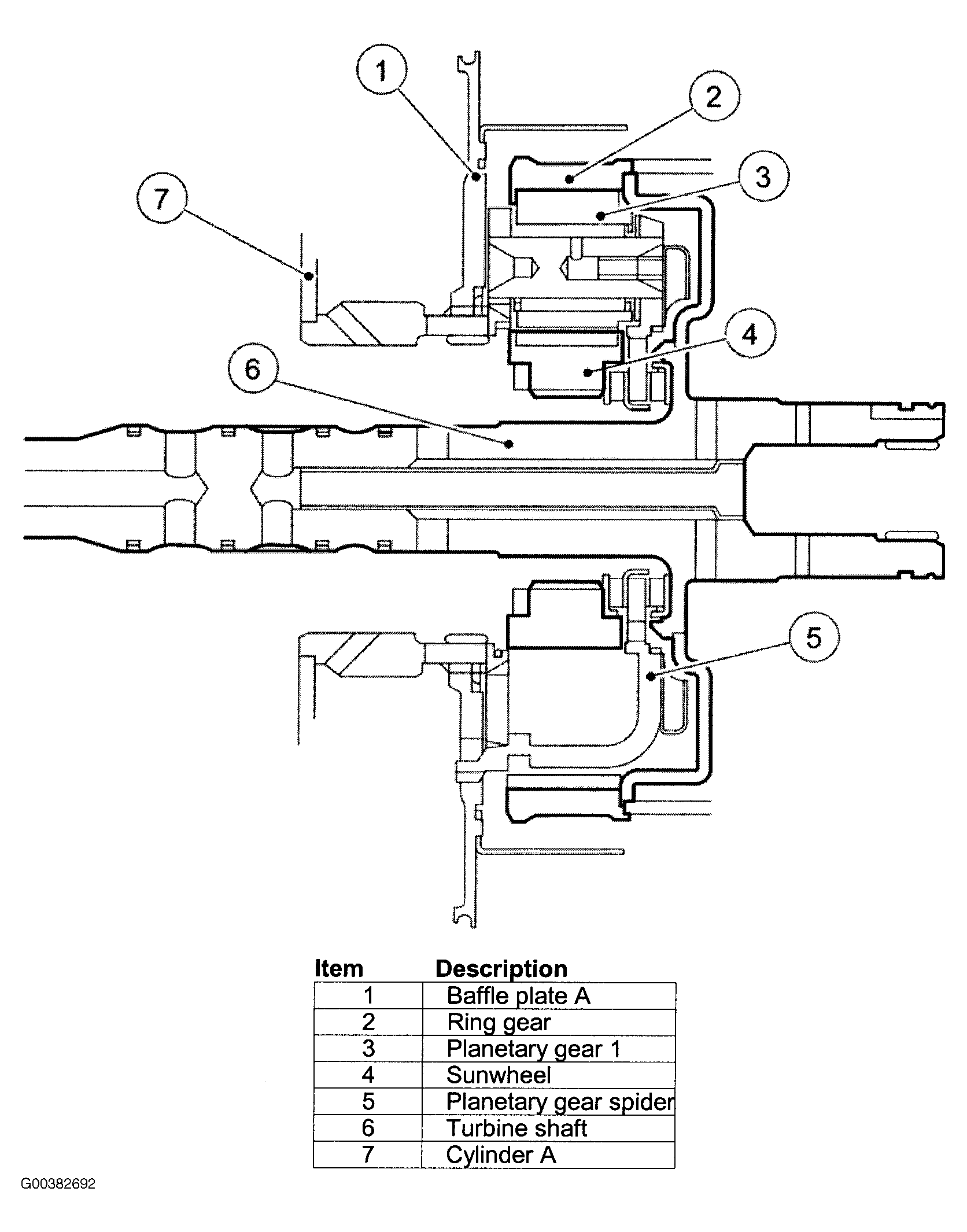

Fig 1: Identifying Single Planetary Gearset Components

Courtesy of JAGUAR CARS, INC.
