Steering Relay Harness Connector End View

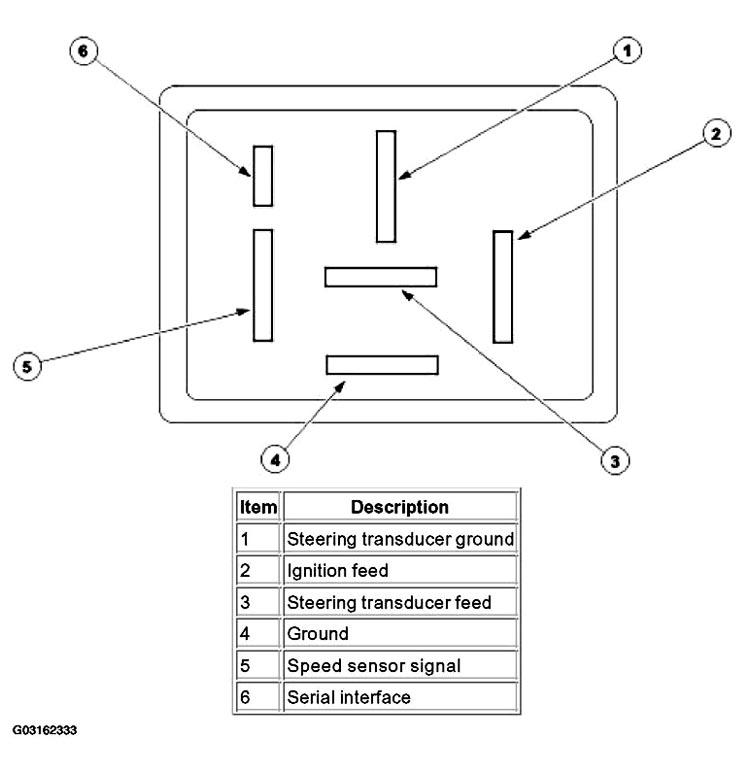

Fig 1: Steering Relay Harness Connector End View

G03162333

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
