Front Power Distribution Fuse Box Location

Front power distribution fuse box is located in the right front of the engine compartment. See Fig 1 . The front power distribution fuse box contains Printed Circuit Board (PCB) relays that are not serviced separately. If a PCB relay fails, the front power distribution fuse box assembly must be replaced. For front power distribution fuse box relay and fuse configuration, see Fig 2 .

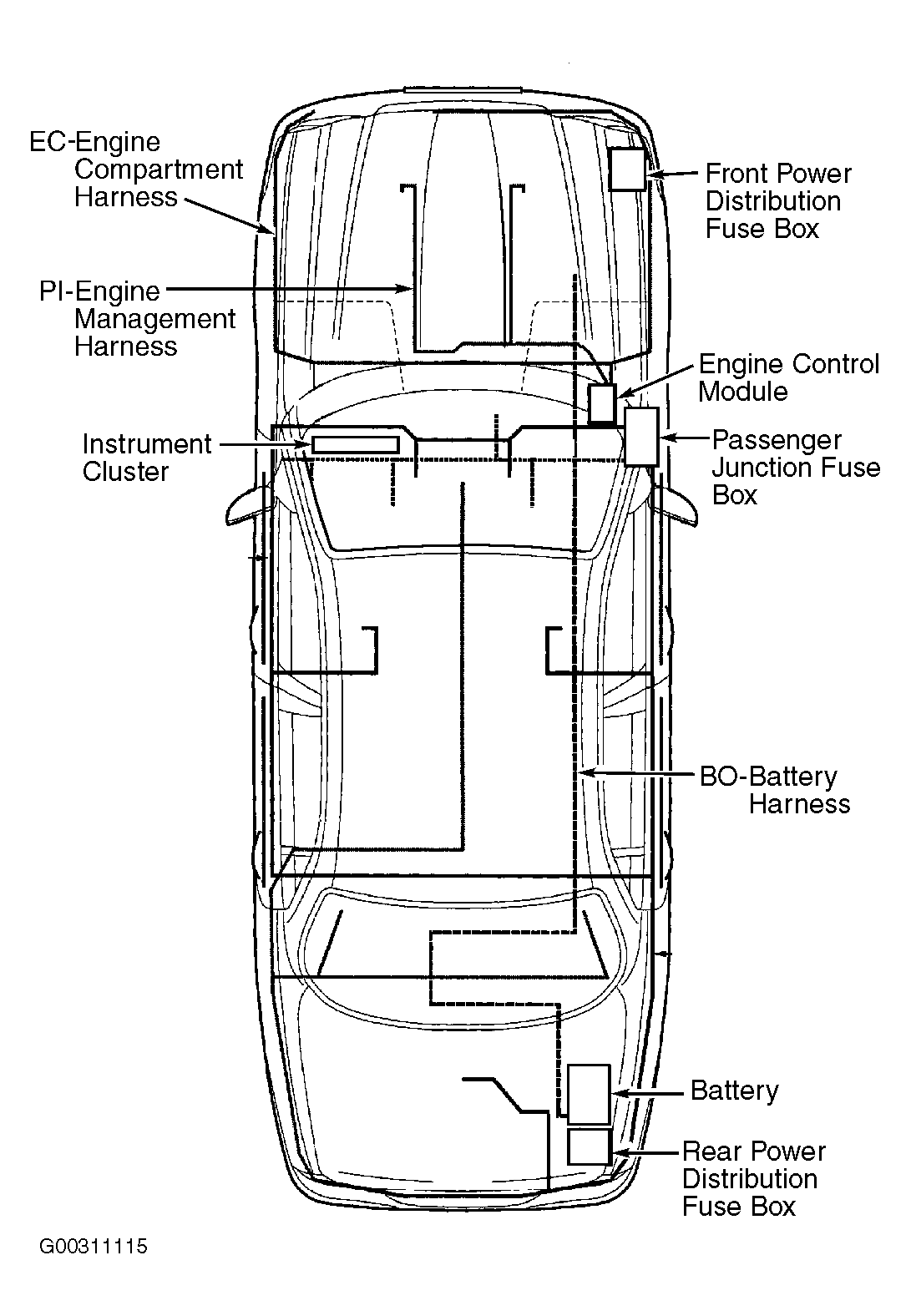

Fig 1: Identifying Front Power Distribution Fuse Box Location

Courtesy of JAGUAR CARS, INC.

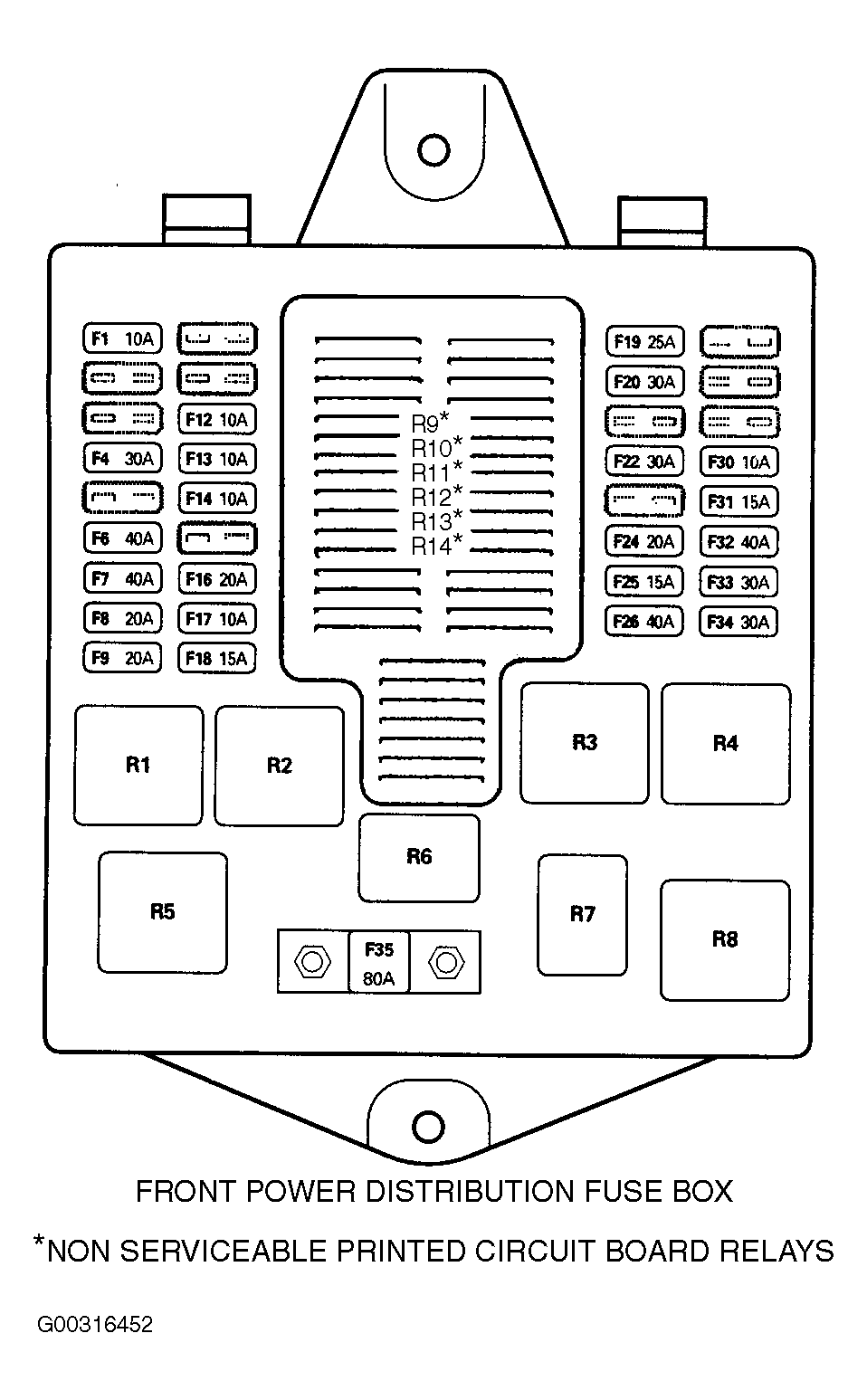

Fig 2: Identifying Fuse & Relay Locations - Front Power Distribution Fuse Box

Courtesy of JAGUAR CARS, INC.
