Spring Lock Couplings: Connect

    NOTE: Install new O-ring seals.
    NOTE: Install a new garter spring.
    Fig 1: Inspecting Male And Female Ends Of Spring Lock Coupling
    G03555332Courtesy of JAGUAR CARS, INC.
  1. Clean and inspect the male and female ends of the spring lock coupling.
    2. WARNING: Make sure the garter spring snaps over the male end of the spring lock coupling.
    Fig 2: Connecting Spring Lock Coupling
    G03555333Courtesy of JAGUAR CARS, INC.
  2. Connect the spring lock coupling.
  3. Check the spring lock coupling to make sure it is correctly connected.
  4. Install the safety clip to the spring lock coupling.

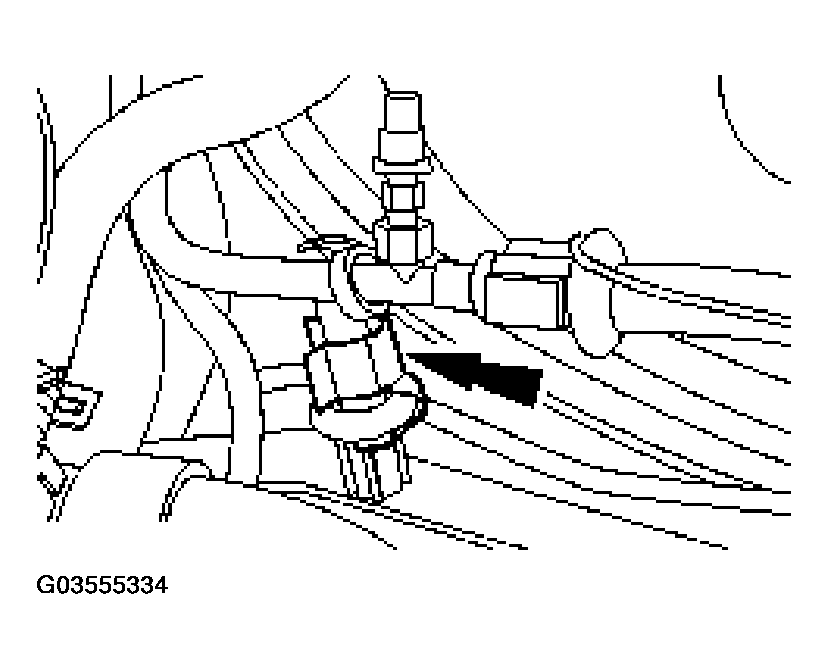

    Fig 3: Installing Safety Clip To Spring Lock Coupling
    G03555334Courtesy of JAGUAR CARS, INC.
