Passenger Rear Door Control Module Connector End View

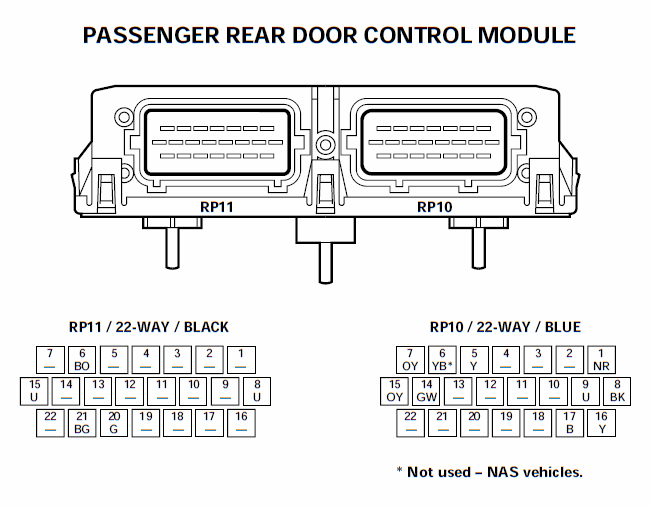

Fig 1: Passenger Rear Door Control Module Connector End View

G00558656

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
