Automatic Window Control Switch: Installation
- Fit and fully seat switch terminal pins in harness multiplug and fit terminal pin protector.

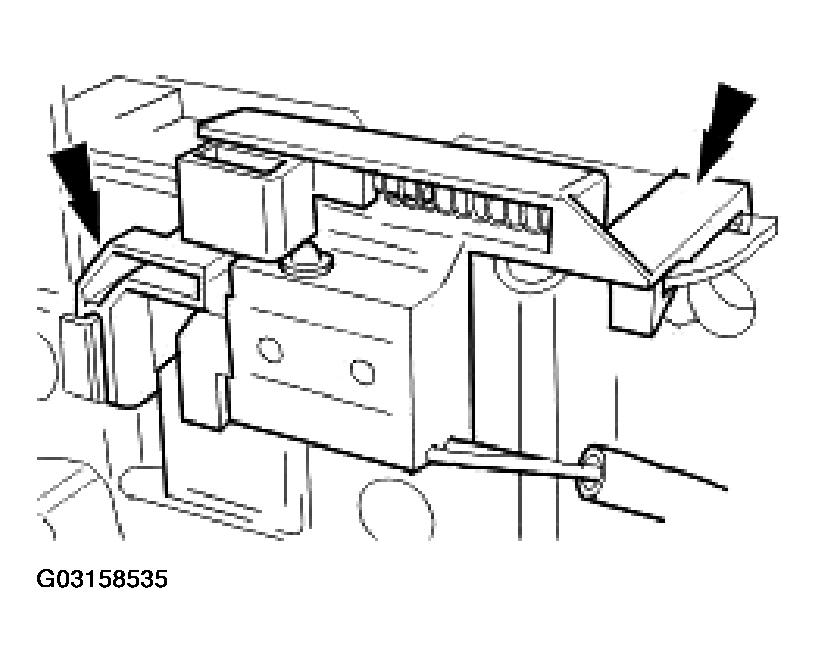

- Fit door glass drop switch to latch assembly, ensuring that both tangs are fully seated.
Courtesy of JAGUAR CARS, INC.
- Secure switch harness with suitable tape.
- Fit cover to latch assembly.

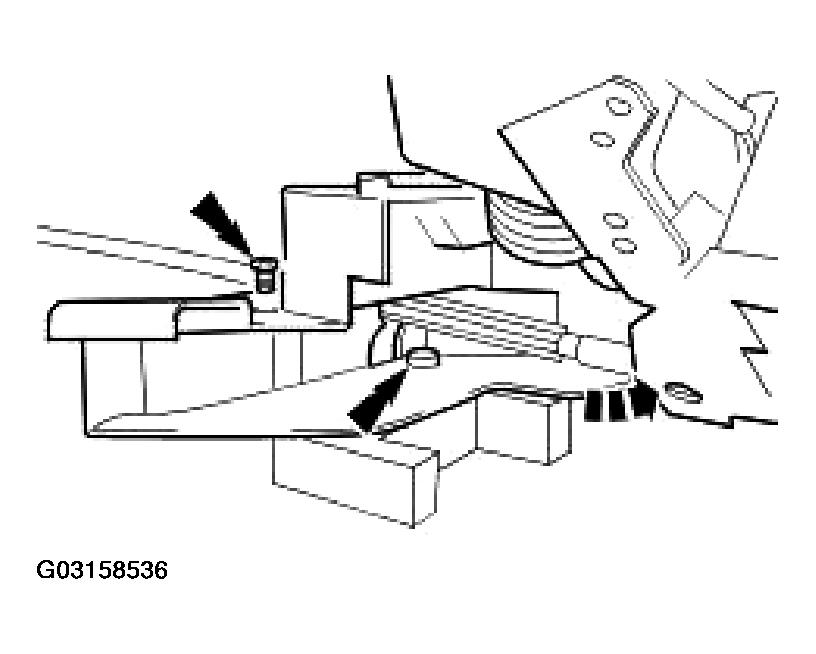

- Position cover over latch assembly, ensuring that internal boss locates correctly in latch housing.
- Fit and tighten cover securing screw.
Courtesy of JAGUAR CARS, INC.
- Fit latch assembly to door. Refer to DOOR LOCK ACTUATOR
.
- Connect the battery and fit the battery cover. Refer to BATTERY RECONNECTION PROCEDURE
.
