Brake Shift Interlock Actuator: Removal

  1. Remove the battery cover and disconnect battery ground cable.
  2. Remove the J-gate surround. See SELECTOR LEVER GATE FINISH PANEL  .
  3. Remove the console finisher veneer panel. See FLOOR CONSOLE FINISH PANEL for 2001 or FLOOR CONSOLE FINISH PANEL for 2002-03.
  4. Remove the interlock solenoid actuating lever cover.
    Fig 1: Removing Shift Solenoid Actuating Lever Cover
    G00378889Courtesy of JAGUAR CARS, INC.
  5. Remove the gearshift interlock solenoid.
    1. Remove the solenoid nuts.
    2. Detach the solenoid from the latch pin.
    3. Disconnect the solenoid multiplug.

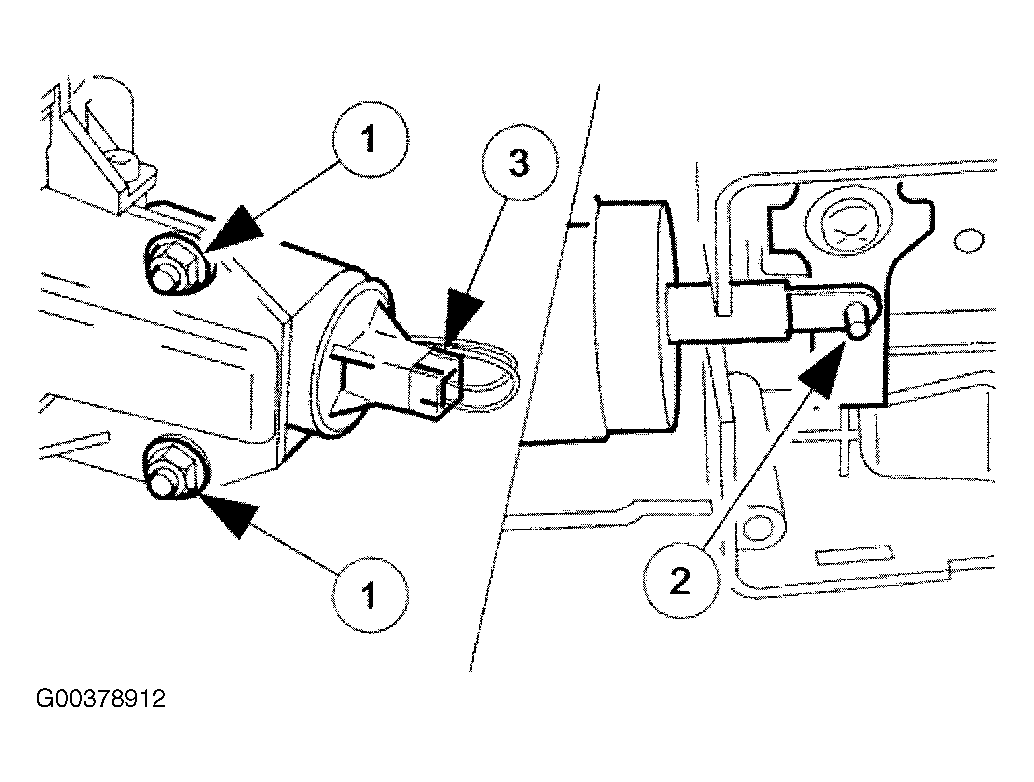

    Fig 2: Removing Gearshift Interlock Solenoid
    G00378912Courtesy of JAGUAR CARS, INC.
