Adaptive Vehicle Speed Control: Components

In addition to the standard vehicle speed control system, the Adaptive Speed Control system comprises:

An adaptive speed control, control module (adaptive SCCM) incorporating a radar sensor and yaw rate sensor provides system control functions. The SCCM is installed in a mounting bracket located in a cut-out in the body front upper crossmember.

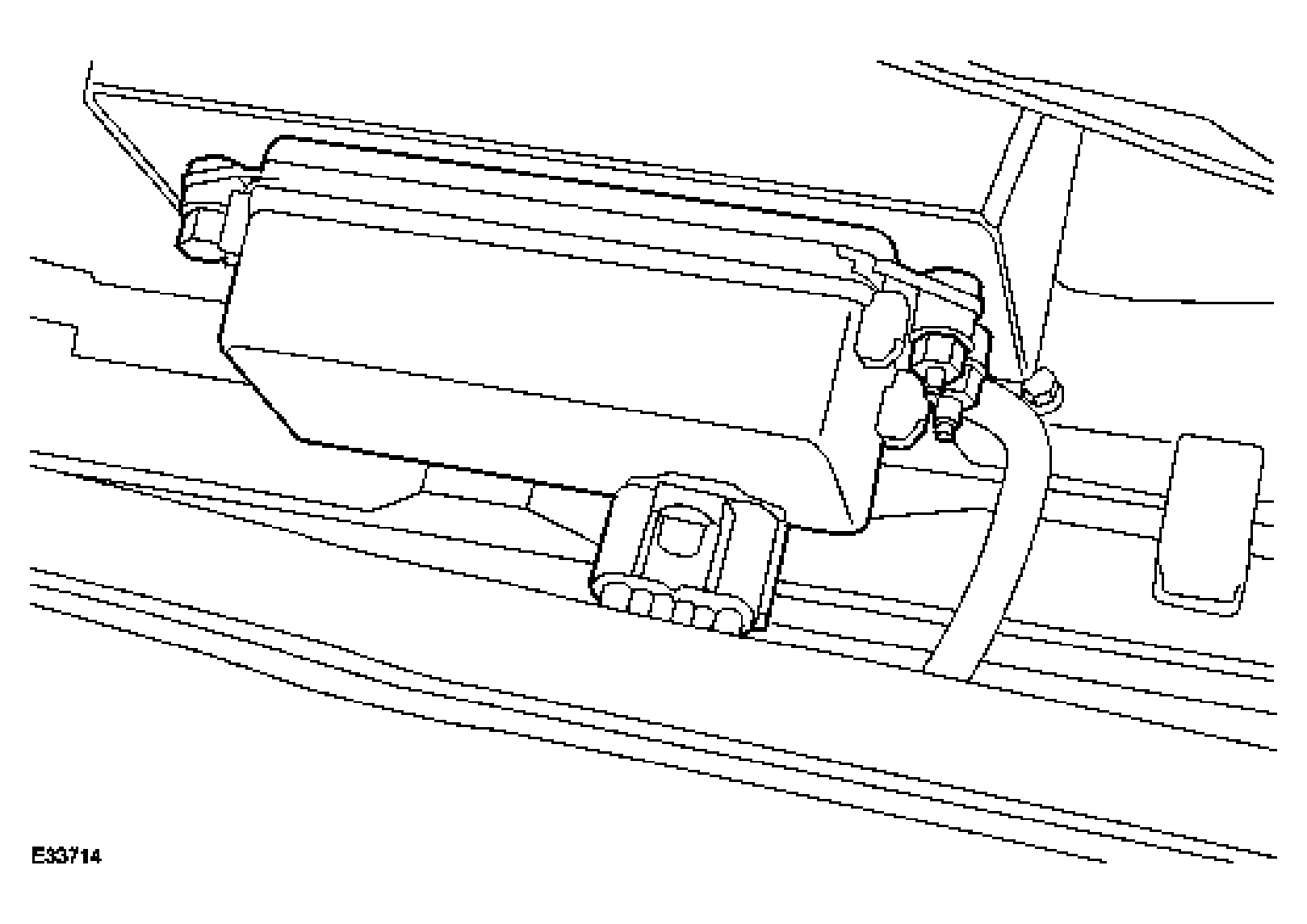

Fig 1: Identifying Adaptive Speed Control Module

Courtesy of JAGUAR CARS, INC.

An adaptive speed control booster control module (SCBCM) installed inboard of the brake booster within the driver side false bulkhead. This is connected to the brake booster pressure switches and solenoid valve, and the vehicle CAN system, by two short harnesses.

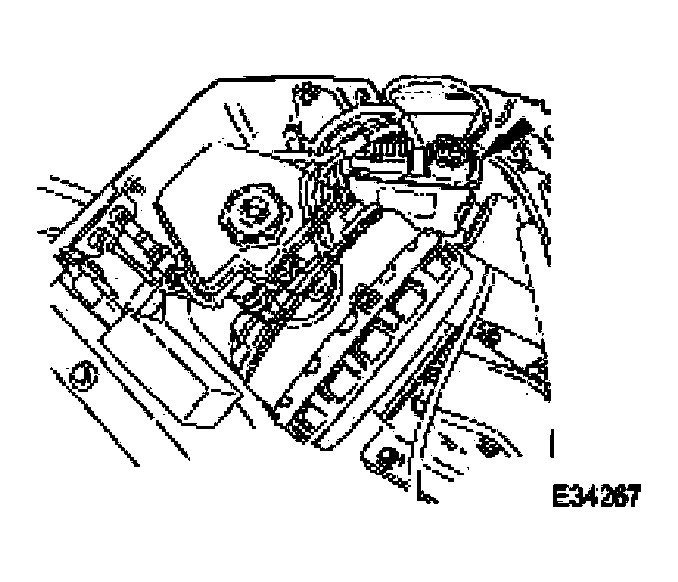

Fig 2: Identifying Speed Control Booster Control Module (SCBCM)

Courtesy of JAGUAR CARS, INC.

A speed control brake booster (SCB) assembly incorporating a solenoid operated air control valve and two pressure switches. The SCB is connected to the booster control module by a single harness connector.

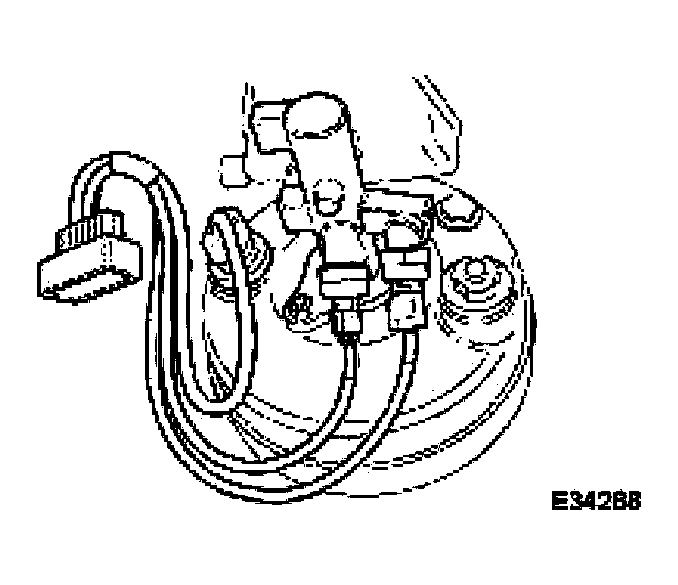

Fig 3: Identifying Speed Control Booster (SCB) Assembly

Courtesy of JAGUAR CARS, INC.
