Engine (4.2L): Engine: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Tool Illustration	Tool Name	Tool Number
Courtesy of JAGUAR CARS, INC.	Crankshaft locking, main tool	303-191
Courtesy of JAGUAR CARS, INC.	Adapter	303-191-02
Courtesy of JAGUAR CARS, INC.	Crankshaft setting, main tool	303-645
Courtesy of JAGUAR CARS, INC.	Camshaft setting	303-530
Courtesy of JAGUAR CARS, INC.	Timing chain tensioning tool	303-532
Courtesy of JAGUAR CARS, INC.	Cylinder Bore Protectors	303-535

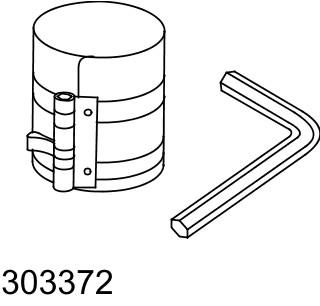

Courtesy of JAGUAR CARS, INC.	Piston Ring Compressor	303-372

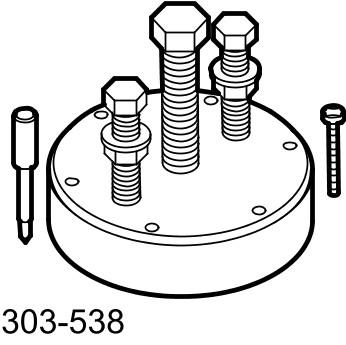

Courtesy of JAGUAR CARS, INC.	Crankshaft rear oil seal remover/replacer	303-538
Courtesy of JAGUAR CARS, INC.	Crankshaft front seal installer	303-538
