The front power distribution fuse box is located in the right front of the engine compartment. See Fig 1
. For front power distribution box fuse identification, see Fig 2
. For front power distribution box relay identification, see Fig 3
.
Fig 1: Identifying Front Power Distribution Box Location
Courtesy of JAGUAR CARS, INC.

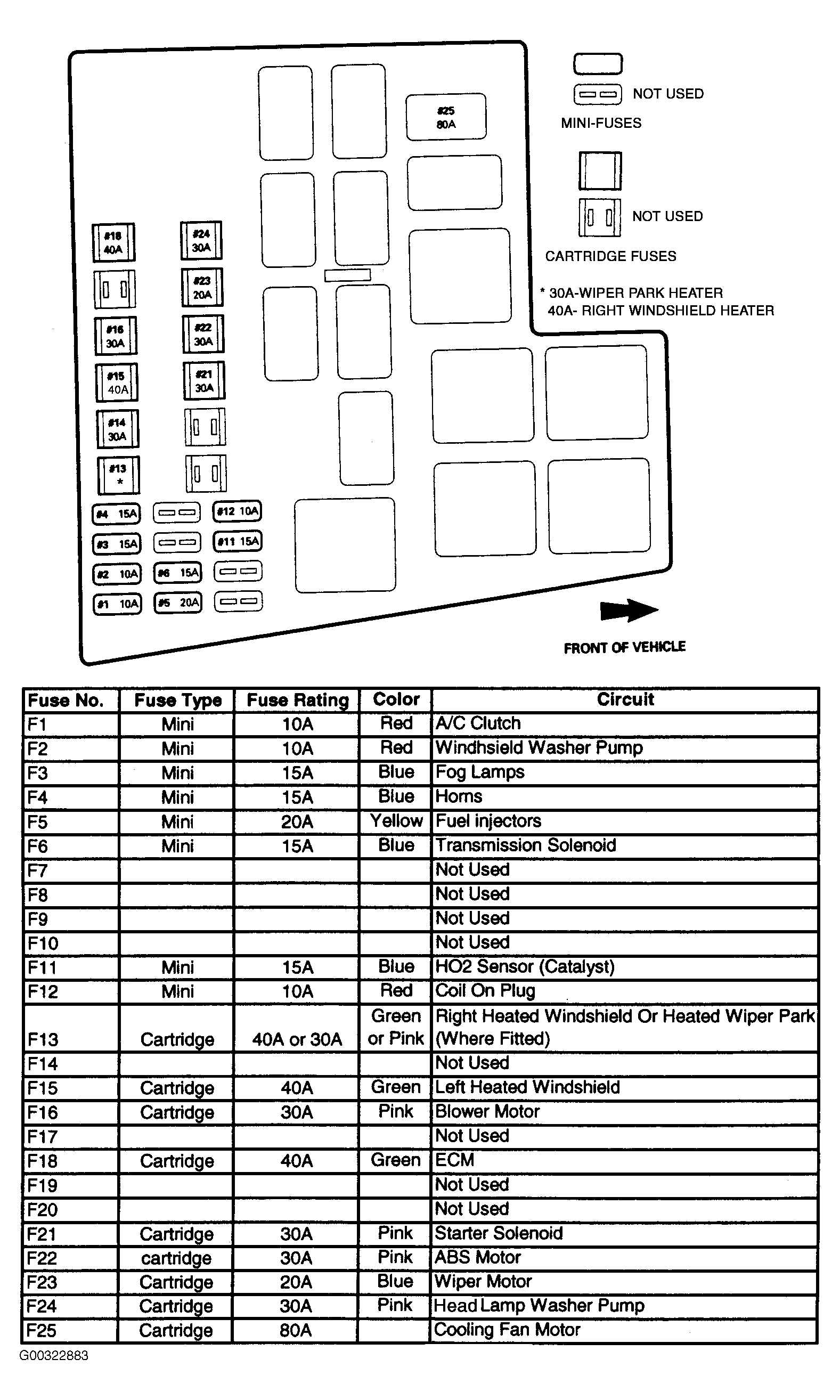

Fig 2: Identifying Fuses - Front Power Distribution Box
Courtesy of JAGUAR CARS, INC.

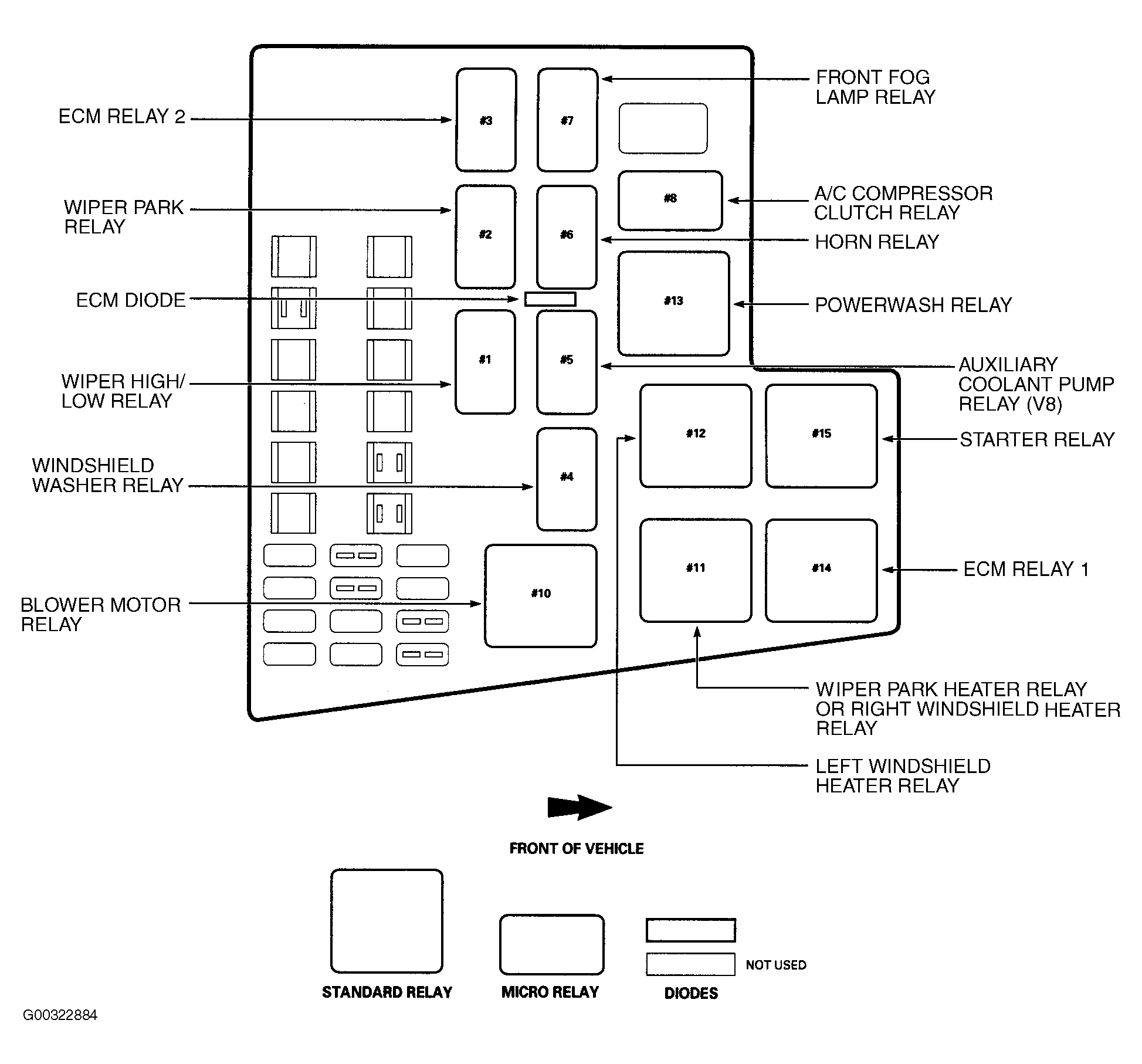

Fig 3: Identifying Relays - Front Power Distribution
