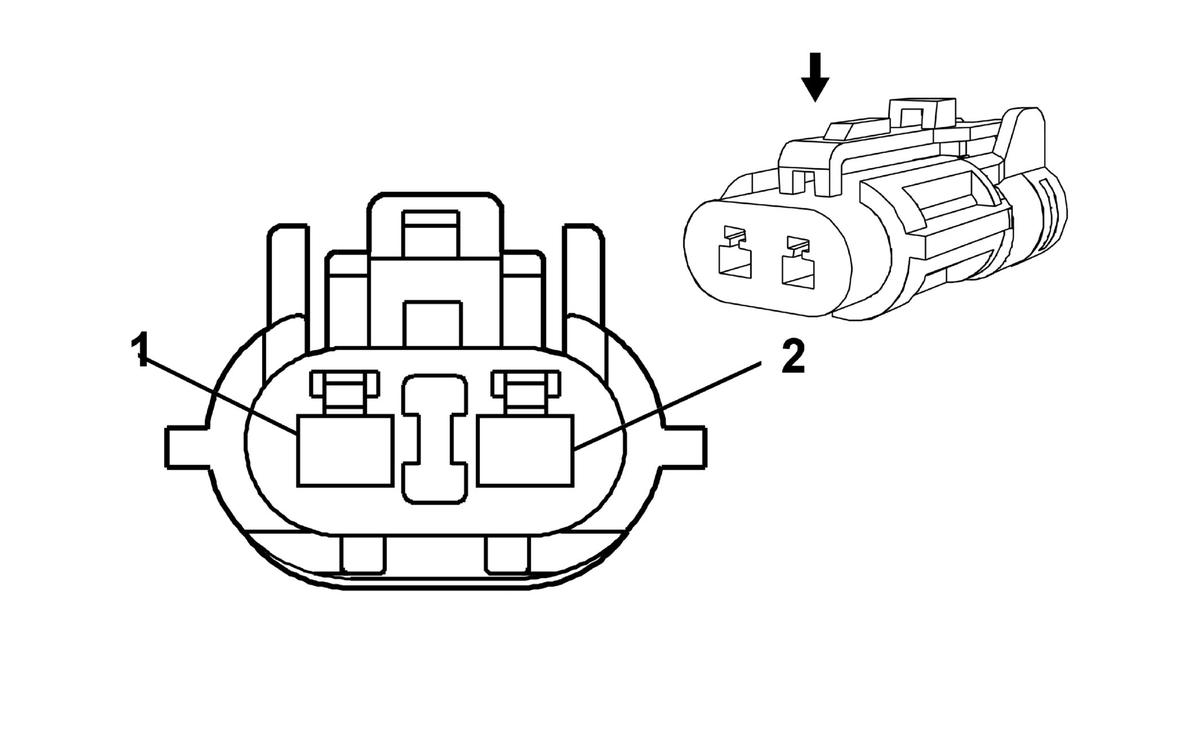

Transfer Case 2/4 Wheel Indicator Switch Connector End View
Transfer Case 2/4 Wheel Indicator Switch
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15327093
- 2-Way F 070 SWP Series Sealed (GY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
TN |
1569 |
2WD/4WD Signal |
| 2 |
BK |
550 |
Ground |
