Steering Column and Associated Parts

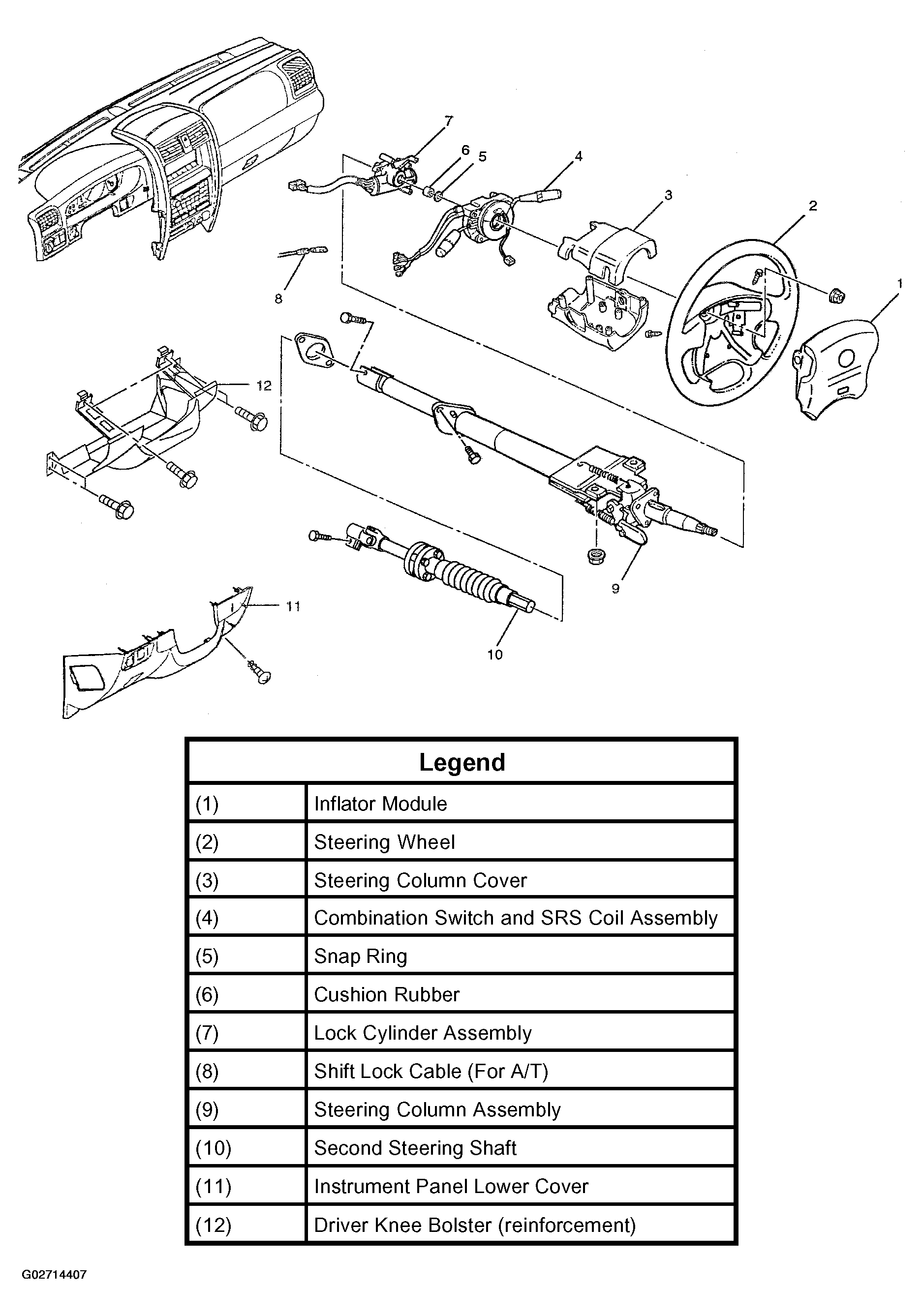

Fig 1: Identifying Steering Column And Associated Parts

G02714407

Courtesy of ISUZU MOTOR CO.
