MID Circuit
MID Circuit

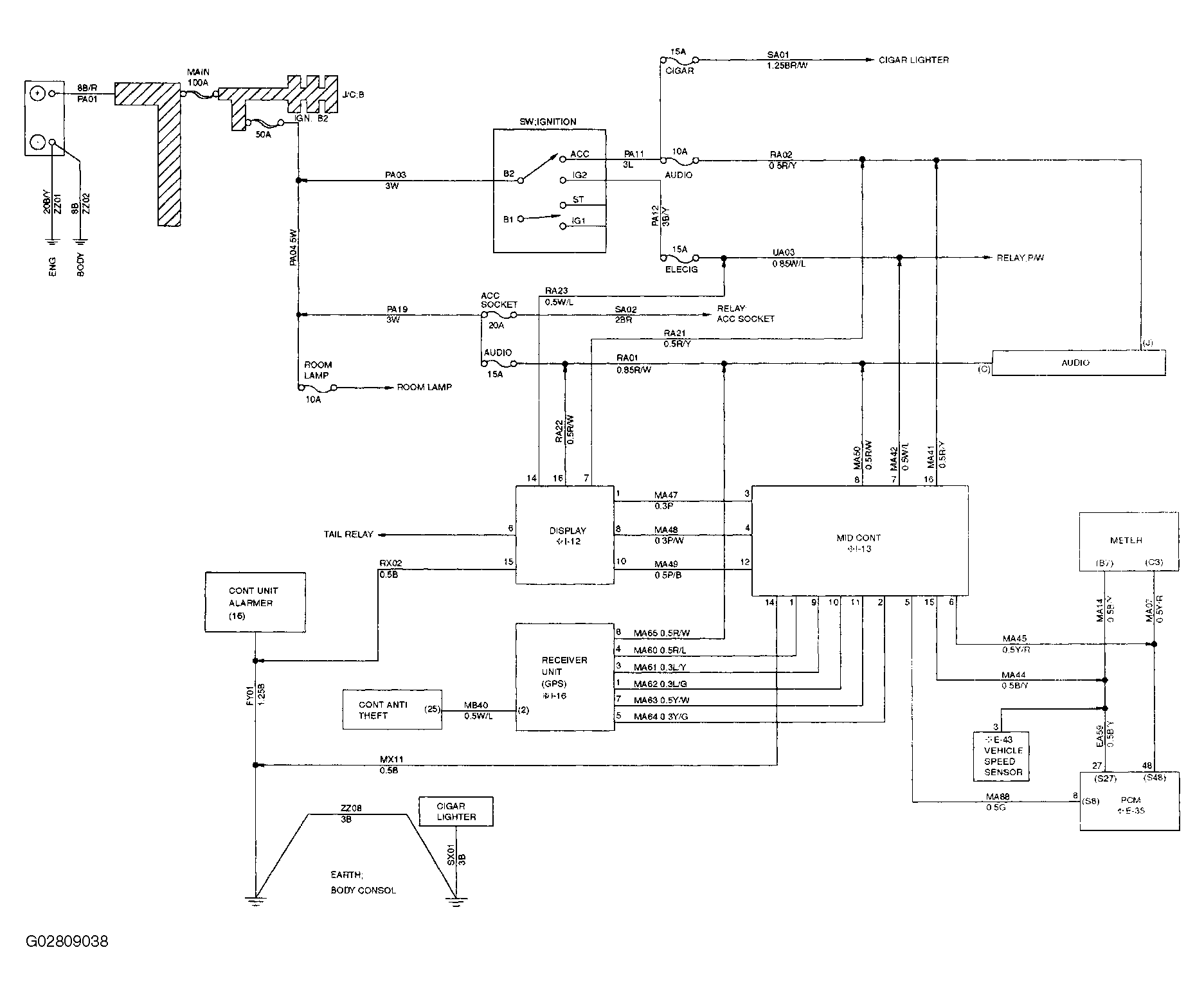

Fig 1: MID Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
