Turn Signal/Multi-Function Switch C1

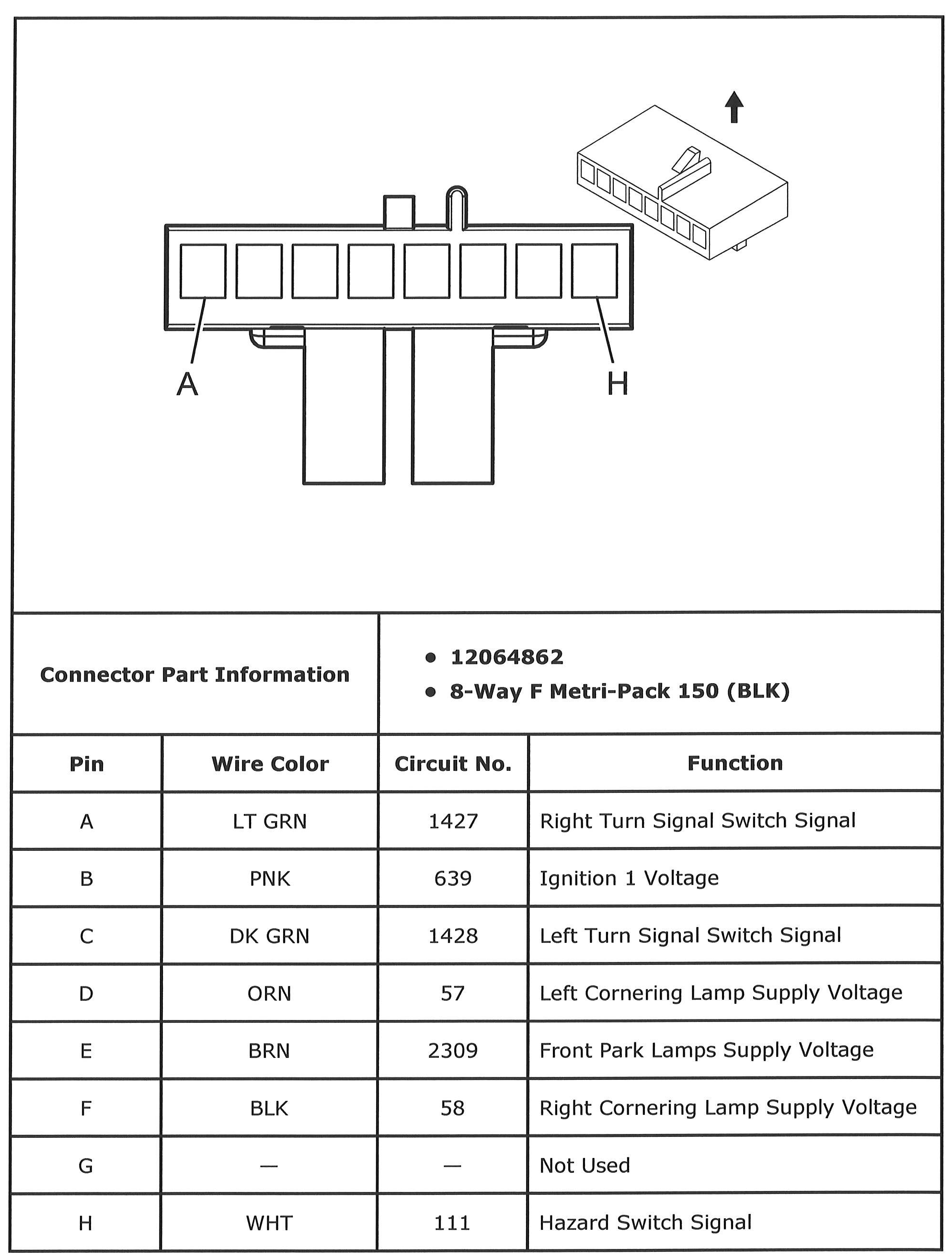

Fig 1: Turn Signal/Multi-Function Switch C1 Connector End View

G00539545

Courtesy of ISUZU MOTOR CO.
