Shaft Bellows Pipe

Use a straightedge to inspect the shaft bellows pipe for straightness. Replace if the clearance is more than the specifications.

Standard  : Less than 1mm (0.039 in)

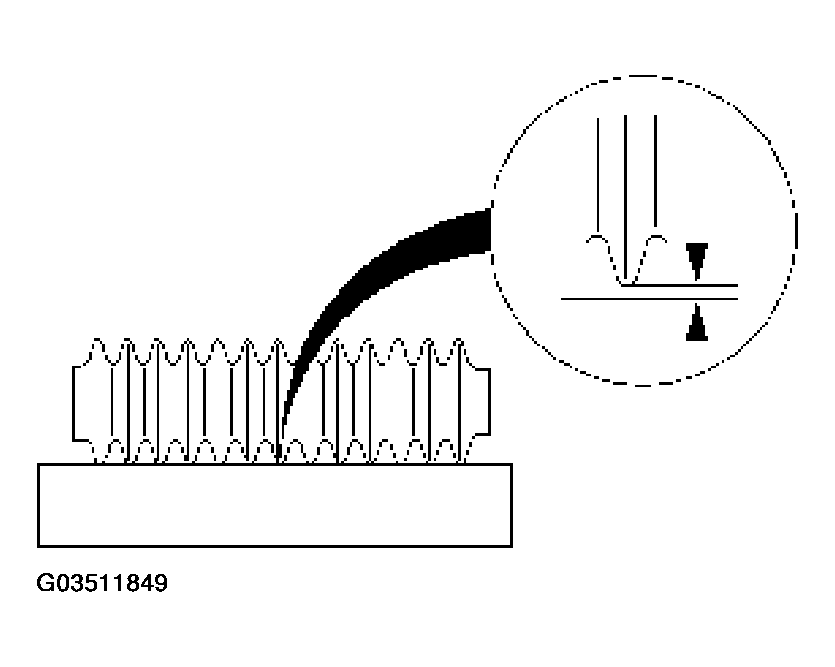

Fig 1: Using Straightedge To Inspect Shaft Bellows Pipe For Straightness

Courtesy of ISUZU MOTOR CO.
