Inspection and Repair: Vane

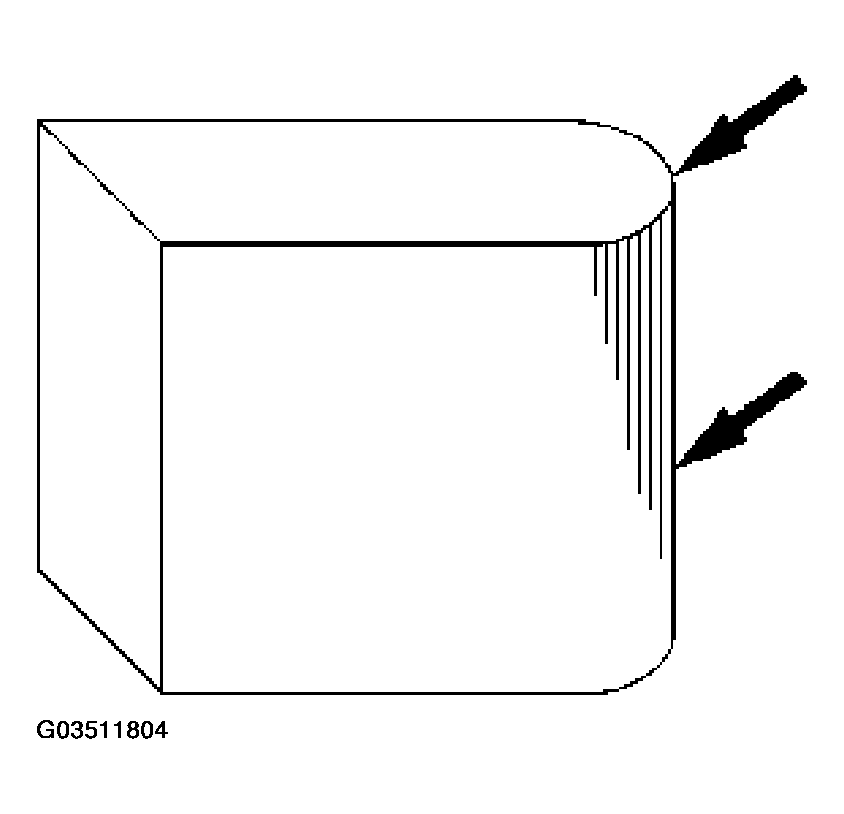

Fig 1: Identifying Vane Groove Position

Courtesy of ISUZU MOTOR CO.

Sliding faces of the vane should be free from wear. (Particularly the curved face at the tip that contact with the cam should be free from wear and distortion). When part replacement becomes necessary, the pump cartridge should be replaced as a subassembly.
