Camber Adjustment

The camber angle can be adjusted by means of the camber shims (2) installed in position between the chassis frame (1) and fulcrum pins

Camber angle: 0° +/- 30'

King pin inclination: 12°30' +/- 30'

CAUTION: Left and right side must be equal within 30'.

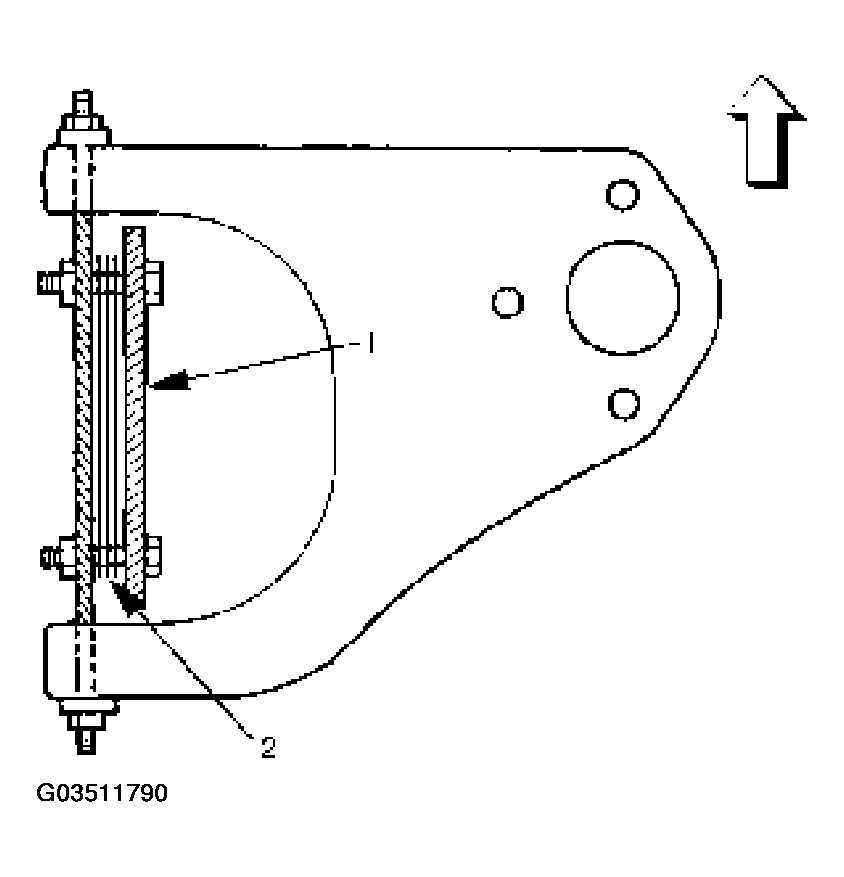

Fig 1: Installing Pins Between Chassis Frame & Fulcrum Pins

Courtesy of ISUZU MOTOR CO.

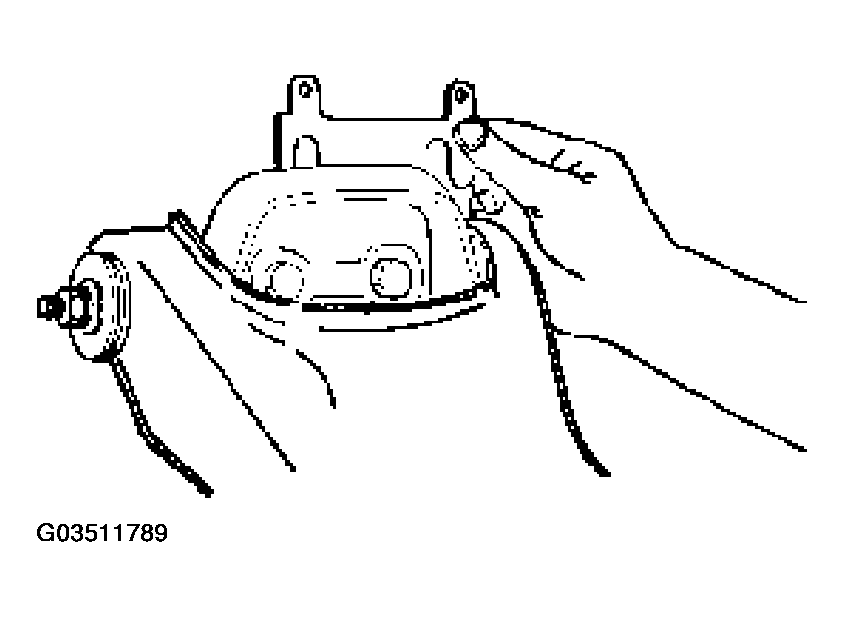

Fig 2: Identifying Camber Angle Dimension

Courtesy of ISUZU MOTOR CO.

NOTE: Overall thickness of caster shim and camber shim should be 10.8 mm (0.425 in) or less.

Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N.m (112 lb ft)

POSITION OF SHIMSCAMBER ANGLE

Position of shimsCamber angle			Camber angle	Caster angle
Front side	Rear side		Camber angle	Caster angle
Caster shim	When added	When removed	Decreases	Decreases
	When removed	When added	Increases	Increases
	-	When removed	Unchanged	Decreases
	-	When added	Unchanged	Increases
Camber shim	When added		Decreases	Unchanged
Camber shim	When removed		Increases	Unchanged
